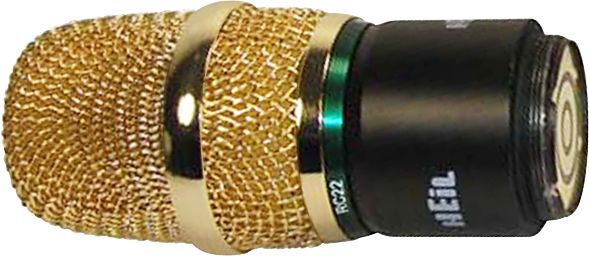

Heil Sound RC 22 Wireless Capsule

Replacement mic capsule for hand-held wireless transmitters using the PR 22 element.




The Heil Sound RC 22 contains the dynamic element of the PR 22, producing much better articulation with high rejection from the sides and rear.

Heil replacement capsules are interchangeable with any of the screw-on type hand-held transmitters that receive a 31.3mm/pitch 1.0mm. Some hand-held transmitters have a .035 inch hexagonal-head set screw to secure the microphone capsule. If your transmitter has that, loosen the setscrew in the handle of the mic transmitter before attempting to unscrew the original capsule.

Holding the bottom of the transmitter simply unscrew the original capsule turning it counterclockwise. Carefully remove. The three conductor contact board disconnects the contacts. Avoid touching or damaging the gold plated contacts on the transmitter or the contact board. Screw your new Heil RC Capsule onto the transmitter handle and tighten.

Consumer Alert:Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.





Features

Replacement capsule for hand-held wireless transmitters
Increased vocal articulation
Maximized rear rejection
Lower handling noise




For wireless performance with increased vocal articulation, maximized rear rejection, and lower handling noise, order a Heil Sound RC 22.







RC 22 Wireless Capsule Specifications:


Frequency Response: 50Hz-18kHz
Output Level: -55dB @ 1kHz
Impedance: Balanced 600 ohm
Polar Pattern: End-fire, cardioid, uniform front-to-back discrimination
Finish: Rubberized, matte black with gold, nickel, and black screens
Weight: 4.9 oz.
