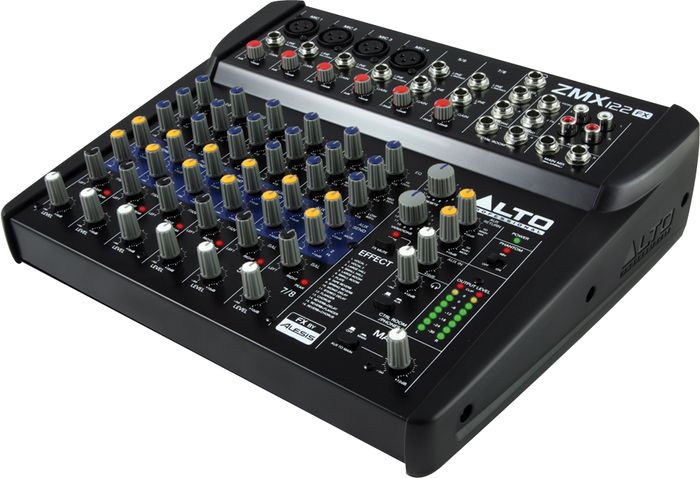

Alto Zephyr Series ZMX122FX 8-Channel Compact Mixer with Effects

Compact, good-sounding, small format mixer with quality effects on board.




The ZEPHYR ZMX122FX is an 8-channel, 2-bus mixer with all the inputs, outputs, routing, EQ, and effects you need for more intimate live performance reinforcement situations. It features four microphone inputs with balanced TRS jacks (two with Phantom Power), a three-band EQ and two AUX sends on each of the four mono channels and the two stereo channels, and even two-track inputs for things such as audio playback.

Regardless of what you're mixing, give your mix a professional edge with 256 onboard 24-bit DSP effects designed in partnership with Alesis. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, chorus effects and more. The ZMX122FX offers 16 variations of 16 professional Alesis effects from which to build, tweak, and dial in your sound. There's even a footswitch input so you can bypass all effects at the touch, or stomp, of a button. (footswitch not included)

The ZEPHYR ZMX122FX accommodates dynamic, condenser, and wireless microphones in the first four channels, as well as keyboards, drum machines, and other instruments in the two stereo channel inputs. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE inputs. You also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, TV screen, or any number of sources. Choose the ZMX122FX as the audio central command for your live performances, home studio, or video suite.

High headroom, low noise
The ZMX122FX packs an enormous amount of features into a very compact space, but we took a no-compromise approach where the purity of your mix is concerned. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZEPHYR ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time.

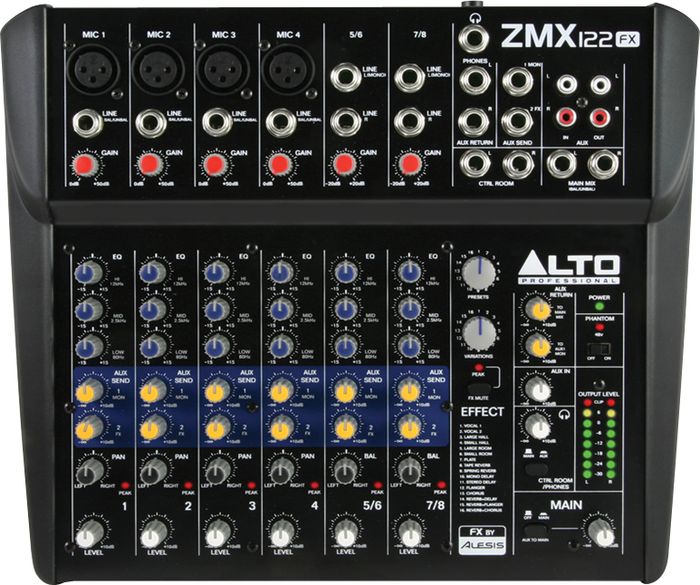

Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.


Features


12 total inputs including XLR jacks with phantom power on channels one through four
Four mic input channels with gold plated XLR and balanced line inputs
Two stereo input channels with balanced TRS jacks
Extremely high headroom offering extra dynamic range
Three-band EQ on each channel
On-board digital effects processor and three-shelf EQ on each mono and stereo channel

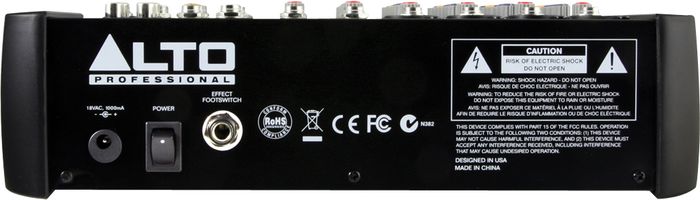

Footswitch input for effects bypass (footswitch not included)
Two aux sends pre-channel for external effects and monitoring
Two bus design with Main and Control Room 1/4” stereo outputs



Zephyr Series ZMX122FX 8-Channel Compact Mixer with Effects Specifications:


Input Channels: Mono channels (Ch. 1 - 4)
Microphone Input: Electronically balanced, discrete input configuration
Frequency Response: 20Hz to 22kHz, +/-1 dB
Distortion (THD&N): ≦0.005% At +4 dBu, 1kHz
Gain range: 0 dB to 50 dB (Mic)
Maximum Voltage Gain: 70 dB Ch. Mic input → Main Mix out & Tape out, 80 dB Ch. Mic input → Control Room & Phones, 60 dB Ch. Mic input → Aux send
SNR (Signal to Noise Rate ): ≧110 dBu
Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48V - with switch control
Line Input: Electronically Balanced
Frequency Response: 20Hz to 22kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at + 4 dBu, 1kHz
Gain Range: 15 dBu to 35 dBu
Stereo Channels: (Ch. 5 - 8)
Line Input: Electronically Balanced
SNR (Signal to Noise Ratio): ≧110 dBu
Frequency Response: 20Hz to 22kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at +4 dBu, 1kHz
Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
Maximum Voltage Gain: 20 dB FX Return → Main Mix out, 20 dB RCA Tape input → Main Mix out
Impedance
Microphone Input: 3.9 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms
Equalization
Mono Channels: High ±15 dB @ 12kHz, Mid ±15 dB @ 2.5kHz, Low ±15 dB @ 80Hz
Stereo Channels: High ±15 dB @ 12kHz, Mid ±15 dB @ 2.5kHz, Low ±15 dB @ 80Hz
Alesis DSP Section
A/D And D/A Converters: 24-bit
DSP Resolution: 24-bit
Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations
Presets: 256
Controls: 16 x 16-position preset selector
Crosstalk: Adjacent Input ≦-80 dB @ 1KHz (Ch. 1-6) , Input to Output ≦-75 dB @ 1KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)
Main Mix Section
Tape, Aux, Phones Output
Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
Noise (Bus noise): ≦-90 dB @ 20 Hz ~ 22KHz (channel & Main level at 0 dB, other at minimum, DSP mute)
Power supply: 18 V, 1500 mA
Rated power consumption: 27 W
Dimensions (WxLxH): 256mm x 250mm x 72mm
Weight: 5.07 lb.






*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
