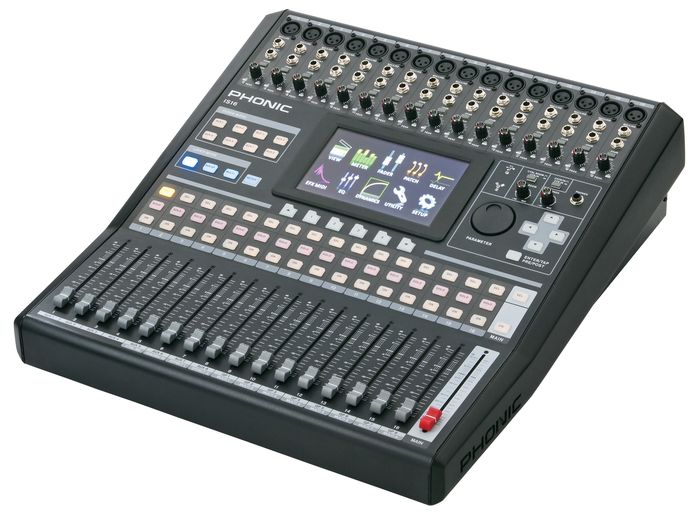

Phonic 16 Channel Digital Mixer

Digital mixer with a mountain of features.




The Phonic IS16 Digital Mixer is an advanced digital mixer with the usability of an analog console. On the surface, the IS16 is a 16 input channel mixer with a set of XLR and 1/4" inputs on each channel. But the IS16 offers so much more. The Phonic IS16 Digital Mixer packs an entire studio worth of gear into a small, compact system. Delay, EQ and dynamics are found on all input and output channels, so there is no need for external processors. Digital AES/EBU inputs and outputs are included, which allow for expanding the scope of your system by connecting it to external digital consoles.

A 31-band graphic equalizer is available on the DFX processor for complete refinement of main signals. The built-in VGA output connector allows all functions to be viewed with ease on any modern computer monitor. A USB/FireWire interface allows PC and Mac connectivity through USB 2.0 and FireWire connections. With built-in EQs, dynamics, delays, digital effects, signal generator, and a meter bridge, the Phonic IS16 Digital Mixer is powerful enough to suit multiple applications - as a live sound reinforcement mixer, a stage and in-ear monitor mixer, or for producing professional studio recordings.



Features

16 mono mic/line with insert points and grouped phantom power
Internal digital sampling rate up to 96 kHz in 24-bit resolution
Compact design
100 mm motorized faders arranged in a familiar analog mixer arrangement
Intuitive GUI interface accessed through a full color touch-screen
31-band GEQ available on EFX 1 and Main Out, 15-band GEQ on EFX 2
4-band parametric EQs on all input channels, multi outputs and main outputs
Digital AES/EBU input and output
Eight balanced 1/4" phone jack 'multi' outputs
8 AUX and 8 Group buses assignable to ‘multi’ outputs
Dual true algorithm-based multi-effects processor. Effects can be applied to any input channel, aux send or group, and the stereo effect signals can be assigned to main stereo mix or all eight multi outputs
25 dynamic processors available on input channels, ‘multi’ outputs and main mix
Save and instantly recall scenes at the touch of a button
Processing accomplished through a high quality 40-bit floating point digital signal processor
Includes FireWire/USB interface for multi-track PC and Mac connectivity through USB 2.0 / FireWire interface
VGA D-Sub output: Progressive scan up to 1024x768p@60Hz (XGA)
All features and functions of the IS16 accessed through use of a USB 2.0 mouse
Audio Interface compatible with Windows XP, Vista & 7 and Mac OSX operating systems
Wireless control through Wi-Fi connection (includes USB wifi stick model no. UTD10 )
Ethernet connection for remote operation through local area network
Remote level adjustments through HTML5 interface using computer, smartphone or tablet
Gooseneck lamp included
Rack mounting kit included




Order today and demystify digital music.




16 Channel Digital Mixer Specifications:

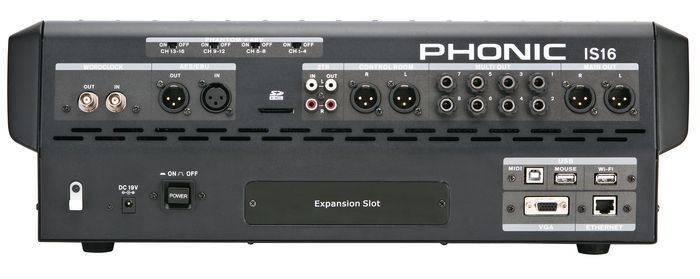

Analog Inputs: MIC In : 16 x XLR Balanced (ch 1-16) Line In : 16 x TRS Balanced jacks (Ch 1-16)
Insert I/O: 16 x Phone jacks (Unbalanced)
2TR IN Analog: 2 x RCA (Unbalanced)
Stereo Output: 2 x XLR Balanced 2 x RCA (Unbalanced)
Main Output: 2 x XLR Balanced
Control Room Output: 2 x XLR Balanced
Multi Outputs: 8 x TRS Balanced
AUX/Group Output: 8 x TRS Balanced (Shared through Multi)
Phones: 1 x Stereo Phone jack (TRS Unbalanced)
Digital I/O: (AES/EBU) 2 x XLR Balanced
Sampling Frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (40-Bit Floating Point Mixing)
Signal Delay (CH INPUT to STEREO OUT): Fs=48 kHz <1.2ms, Fs=96 kHz <0.6ms
Faders: 17 x 100mm motorized faders
Word Clock I/O: 2 x BNC Connectors
Distortion (THD + N): THD+N less than 0.007%, +4 dBu, 20-20 kHz, unity gain, 20 kHz BW
Frequency Response (CH INPUT to STEREO OUT): Fs=48, 96kHz, 0/-1.5dBu, 20 Hz – 20 kHz @ +4dBu into 600Ω
Hum & Noise: (20 Hz – 20 kHz), Rs=150, -128dBu (EIN), -90dBu (residual output noise)
Optional Expansion Card: A standalone 16-channel PCM WAV recorder and a Firewire/USB 2.0 multitrack recording audio interface; USB 3.0 flash drives compatible
VGA Monitor output: D-Sub 15 pin: Progressive scan up to 1024x768p@60Hz (XGA)
Ethernet 10/100 Base: RJ45
USB 2.0 MIDI: Type B
USB 2.0 (Mouse and Wi-Fi): Type A x 2
Power Supply Unit: 100V – 240V, 50/60 Hz, 90W
Dimensions (H x W x D): 6.46" x 1935" x 21")
Weight: 37.5lb



*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
