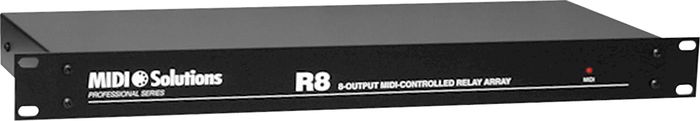

MIDI Solutions R8 8-Output MIDI Controlled Relay Array

Fully programmable.




The MIDI Solutions R8 Relay Array provides 8
contact closures which can be programmed to open or close in response to
MIDI events. Event types are programmable and include Note, Controller,
Program Change, and System Exclusive messages (up to 20 bytes). All
settings are retained even after power is removed from the rack mounted
unit. Fast-read relays are used for a response time of less than 2ms.
Relay contacts are rated at 0.5A. Contacts are made available via
connections to the tip and sleeve of 1/4" mono phone jacks. The MIDI
Solutions R8 is MIDI powered requiring no batteries or power supply to
operate.



Features

8 contact closures which can be programmed to open or close in response to MIDI events
Event types are programmable and include Note, Controller, Program Change, and System Exclusive messages (up to 20 bytes)
Settings are retained even after power is removed from the unit
Response time of less than 2ms
Relay contacts are rated at 0.5A
Contacts are made available via tip and sleeve of 1/4" mono phone jacks
MIDI powered




Bring MIDI control to your analog gear. Order today.


�


�
