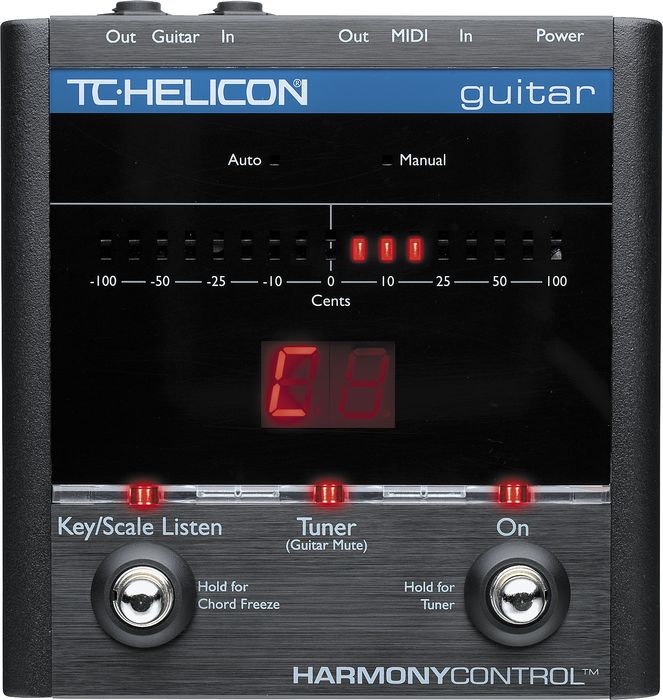

TC Helicon Harmony Control for Guitar

Automatically finds the right vocal harmony in real time!






All you forward-thinking singers who use a harmony processor and play guitar now have the option of adding harmonies to more songs, more easily with the must-have harmonizer, the HarmonyControl | Guitar from TCHelicon.

HarmonyControl | Guitar reads your guitar playing and tells your MIDI equipped harmony processor how to sing "the right stuff". If you've ever used Key and Scale harmony, you'll know it works wonderfully for a lot of songs, but now you can add even more harmony songs to your repertoire while you focus on playing and singing your best. Previously, only MIDI keyboard players had the ability to create spontaneous harmony parts but now it lies in your hands too.

It's Easy All you do is connect HarmonyControl between your guitar and pedal board or amp. Your pure guitar tone is unaffected; it's as if HarmonyControl wasn't there. A supplied high-quality MIDI cable connects to the harmony processor you've already set up as usual with mic and PA connections. As you play normally, HarmonyControl deciphers the chords in your music and sends it to your harmony processor through MIDI. It's working all the time so that when you lift the bypass on your processor, harmonies flow forth instantly.

It's Versatile Your harmonizer isn't made by TC-Helicon? Too bad, but the good news is that HarmonyControl is compatible with a wide variety of harmony processors by TC-Helicon and others. Of course, our VoiceWorksPlus, VoiceLive, and VoiceWorks have extended features that make the harmonies even more musical. If your harmony processor has a MIDI input, it's likely HarmonyControl can give you the effortless musical control you've always wanted.


TC Helicon Harmony Control for Guitar Features:


Enhanced Scale Mode: Scale presets are enhanced because HarmonyControl constantly adjusts the scale to work with the chords you play.

Guitar-controlled Chord Mode: Select a chord mode preset on any of these products and your guitar can supply the chords in real-time

Listen Key/Scale: Set the key from your guitar.

Auto detect: connect the MIDI in and out with the supplied MIDI cable and TC-Helicon harmony products are automatically recognized.

Chromatic Guitar Tuner

On/Off Button: Returns your harmony processor to its original function.

Universal external power supply


Save BIG when you buy today!



TC Helicon Harmony Control for Guitar Specifications:


Analog Inputs

1/4" Phone Jack, Input Impedance: 1MOhm

Max Input Level 16 dBu @ 12V supply

Analog Outputs

1/4" Phone Jack

Output Impedance 0 Ohm, Sense 225 Ohm

Max Output Level @ 16 dBu @ 12V supply

Dynamic Range, 106/98 dB, 20 Hz to 20 KHz @ Input Level 16/-2 dBu, not A-weighted

THD < -90 dB (0.0032%) @ 1 kHz, I/O Level 16 dBu, Load > 2400 Ohm

Frequency Response, +0.1/-0.2 dB, 20 Hz to 20 KHz

Conversion Characteristics Sample Rate 48 kHz, Converter AKM AK4620B

AD / DA Conversion 24 bit, 128x oversampling bitstream

MIDI:In/Out — 5 pin DIN

EMC & Safety

Complies with EN 55103-1 and EN 55103-2 FCC part

15, Class B, CISPR 22, Class B

Certified to IEC 65, EN 60065, UL6500 and CSA E60065

CSA FILE #LR108093

Environment

Operating Temperature 32° F to 122° F (0° C to 50° C)

Storage Temperature -22° F to 167° F (-30° C to 70° C)

Humidity Max. 90 % non-condensing

Supplementary

Dimensions 130mm x 132mm x 41mm (5" x 5.25" x 1.5")

Weight 1.5 lb. (0.72 kg)

Warranty Parts and labor 1 year
