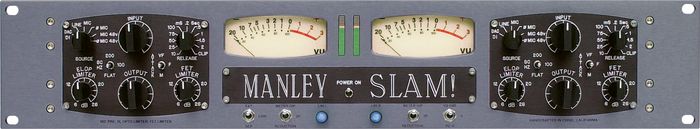

Manley SLAM! Stereo Limiter and Micpre - Mastering Version

Manley SLAM! Stereo Limiter and
Micpre - Mastering Version

Description
Reviews

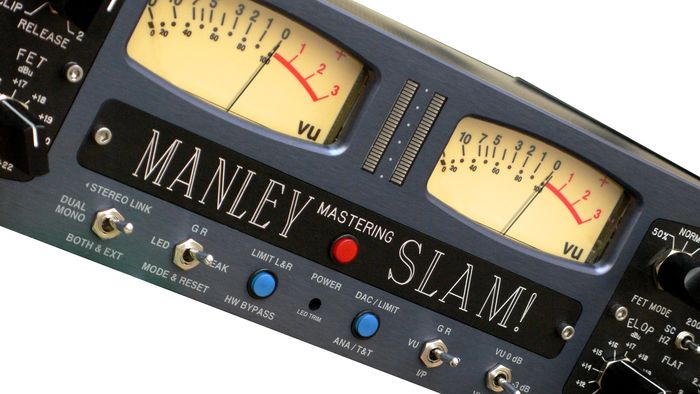

A mastering version of SLAM! for the most demanding engineers.




The Manley Mastering SLAM! incorporates detented and
logable 1/2dB steps built with 1% metal film resistors on sealed gold-contact
Grayhill switches.
•The Mastering SLAM! has no mic preamps or instrument
inputs. Instead the tube sections are paralleled for low noise and distortion

•All pots are replaced with rotary switches for detented resettability and
easier calibration
•The mastering version has a true hard-wire bypass
function, which is not possible on the regular version with mic preamps, etc.
What was the Left Bypass, becomes the full Bypass (in stereo and hardwired). No
separate L & R bypass buttons
•The right BYPASS button becomes either
the DAC select if the Digital Converter Option is installed — or — Limiter
Bypass (tubes & transformers still active)
•The SLAM! has a dedicated
unbalanced transformerless inputs on the mastering version. What was the Phantom
Por switch on the back now selects XLR or 1/4" inputs
•The ELOP limiter now
has 5 ratios, which may put it into the compressor/ limiter category. The low
ratios may be better suited for complex mixes
•The FET limiter has 5 modes
(these last two features replace the INPUT selector)

About item
6, the ELOP can be selected for 10:1, 5:1, 3:1, 2:1 and an 'AUTO HF'
mode where high frequencies get a higher ratio and low frequencies get a low
ratio. This mode is the most gentle. As with most compressors one might need to
lower the threshold as one lowers the ratio, if keeping a similar depth of gain
reduction is wanted. The threshold markings are based on the 10:1 ratio and a
setting of +18 is intended to help reduce DFS overs with a converter with 14 dB
of headroom over +4 dBm. Many mastering converters are set for 14 dB of headroom
and the +18 setting would be a good starting point. Of course being an
Opto-based limiter, it cannot be ultra-fast and some peaks will probably get
through and it generally will have the typical (puffy) sound of an opto (because
of its inherent time constants). It should be pointed out that much of that
character is reduced when used in conjunction with the FET limiter. The FET
usually catches some of the overshoots and time/gain behavior of the Vactrol and
that can reduce the familiar Optical sonic signature.

The FET limiter has
some subtle enhancements, some of which will not be apparent on all sessions. In
particular, the LP LIM function will not be obvious unless the input signals are
rather hot and more than a few dB of limiting is taking place. LP LIM is meant
for those jobs that require more drastic treatments. If those conditions are
met, 1) the NORM setting may be verging on 'crunchy' and might seem dulled due
to reduced transients, 2) the LP LIM setting can be less crunchy, and seem to
have more 'presence' because the FET limiter won't be pulling down as much mids
and highs as it will lows where most of the energy is. It may also be difficult
to compare NORM and LP LIM because the change involves a 3 or 4 second time
constant. At normal levels, the two modes will be similar sounding. LP LIM seems
to help in extreme cases where loudness is the prime goal. Use the Bypass button
to check how much dynamic presence is added.

The 50% setting mixes some
raw input with the post limiter signal, which is often difficult in a mastering
environment. Because the FET side-chain senses right off the output XLR, one
immediate indication is significantly deeper gain reduction shown on the LED
ladder, but less apparent limiting to our ears. In some ways, it is like
reducing the ratio and threshold, maintaining a similar output level. It may
sound a bit more open and may be useful where lower level passages need to be
raised without killing all transients. Another benefit is that the raw parallel
path flows through less circuitry.

The CLIP setting just introduces a
soft clip circuit just below +18 dBv or about a dB shy of where a converter set
for +14 of headroom might hit DFS clipping. This could allow one more safety
valve with a bit of room for the digital filters to behave nicely. One may
follow that process with a digital limiter to lift the level a bit closer to DFS
if desired. Read more below about the CLIP settings.

You may notice that
the Manley SLAM! ATTACK switch simulates some of the audible action associated
with attack controls on compressors but still tends to grab most of the fast
peaks. In other words, you get some punch with slower attacks. Like other attack
controls you may have to adjust the threshold down at slower settings to
maintain some clip protection, but may notice that you don't have to adjust the
threshold as much as one might expect with a conventional attack control. This
is because there is a very fast limiter still hitting transients that are near
our threshold of identifying.

Should also point out that the ELOP
side-chain filter has some level compensation built in so that chopping off the
lows, doesn't cause a huge change in thresholds. There may be some adjustment
required depending on the spectral balance of the music though. With bright
mixes the 200 Hz may actually cause deeper limiting, plus there is a 3 dB peak
above 4K to help smooth excessive sibilance, though Manley doesn't refer to it
as a de-esser.

The hard-wire bypass function is not quite as trivial as
might be expected. It is a bit more complicated because of 2 input jacks, plus
the DAC option (no longer available 10/2009) and the 2 different outputs, one of
which doubles as an input to the A to D option (no longer available 10/2009),
plus all the metering. Selection of either the XLR balanced (transformer) input
or 1/4" unbalanced (op-amp) is done with a "pull to toggle" switch on the back
panel. Generally either output can be used and there are internal jumpers that
allow the XLR output to be used as an input to the A/D (no longer available
10/2009), FET side-chain and OP metering, so that the SLAM! can be used in a
wild way with other processors (like a Massive Passive) in a complex chain. Like
many of Manley's processors, using the 1/4" unbalanced output bypasses the final
transformer and may be a little cleaner or open sounding compared to the
transformer output, which may be a little warmer and richer or evocative of some
vintage gear. Might be worth checking out each input and output while you learn
the signal processor.

Subtle but important differences.

If the converter option is installed in the Manley SLAM! unit, (no
longer available 10/2009), and DAC is selected, it will still be available in
bypass. The XLR output will be the same as the dedicated 1/4" DAC output then.
The first few units do not pass the DAC to the 1/4" in Bypass (only). It should
also be noted that in balanced mode the DAC produces +4 dBm or 0VU @ -14 DFS to
the SLAM! circuitry, but in unbalanced mode produces —2 dBm or —6VU @ -14 DFS.
This difference might be a flaw or feature, but with the SLAM! being a level
changing device, it should not be a problem. The dedicated 1/4" balanced DAC
output is —14 DFS = +4 or 0VU. There are a pair of internal trims on the DAC
amplifier if a different 'standard' than —14 DFS = 0VU or the consumer DFS = 2
volts RMS unbalanced is desired.

Additional points inspired by
some of the early comments from SLAM! users

The Manley Mastering
SLAM! is designed primarily as an old school text book limiter and as such the
Output Level knob is not after the final FET limiter. The idea is to set the
peak-stop threshold and adjust the incoming level, which is why the level
controls are larger. More fun is to be had adjusting the Input and Output Level
controls than the Thresholds, which can often just be thought of as 'set and
forget' especially if the FET Attack time tends to live in one setting. The
Output level is not a 'gain make-up' control typical of a compressor but
consider it as another Input level before the FET and after the
ELOP.

Some of the skills or habits Manley has with soft compressors,
might be less useful with a limiter. For example, just setting it by ear, with
similar input / output levels and an acceptable number of dBs of gain reduction
or approaching it as an effect might not get the best results. The approach of
trying to achieve a brick wall level and then taking how the dynamics processor
is driven (those Input and Output knobs) usually seems to work best. Put another
way, limiters or limiting is not often a great effect in itself, but the
increased volume when it is used reasonably can be. So it is about loudness
rather than a cool pumping action, or pleasant warmth. The Manley Mastering
SLAM! can do some of that, but was designed to be pretty clean for a tubed unit,
and hot aggressive colors can be dialed in with the FET limiter.

The LED
Gain reduction display is 1 dB per segment. have seen numerous people at trade
shows dial up 15-30 dB of gain reduction presumably to see a good number of LEDs
flashing. It is still a limiter and should be treated with some respect of the
damage a powerful limiter in the wrong hands can do. In other words, it can be
particularly vicious. The worst-case scenario is bass-heavy mixes, fast attack
and releases, and deep limiting, where some GR modulation can happen. Though
much has been done to allow those very fast releases, which maximize loudness,
it does pay to be aware that distortions and edginess might be a side effect.
Sometimes the best answer is exactly what many mastering engineers do daily,
which is use 2 or 3 compressor/limiters each doing a few dB rather than one
doing 10 dB. The LED meters can be very useful in comparing peak levels,
especially when used with the Bypass button. Part of the secret to getting the
most out of the Manley SLAM!, is to learn the LED meter modes. Everybody has a
favorite display mode, but they all are rather useful and you may find yourself
changing modes more than expected. Of course, some rely too much on the meters
and forget to listen and assume that particular operating levels are important.
There is a healthy range of signal levels that are easily accommodated. Manley
suggests using less limiting for the first few weeks until you are reasonably
familiar with the stereo limiter and mic preamp unit. There is a learning curve
and no real tricks or settings that seem to be common. Every mix may be
different.

Lastly, it is not in any way like the Variable Mu and was
never intended to be. Each has its own purpose and special 'unique talent'. The
Manley SLAM! may be easier to describe as a damn-fast transient killing secret
weapon, or a tubed, analog L-2 with amazing converters, or maybe just a serious
"go-louder box" with huge cajones.



Features

Input Tubes: 2 x 12AT7A NOS GE specially selected by Manley Labs for
lo-noise and stable bias
Output Tubes: 2 x 6414W NOS USA dual triodes
I/O: MANLEY transformer coupled Balanced Inputs and Outputs
Gain: 20dB max Limiter Gain
Input Impedance:
FET Limiter: Attack: approx. 100µS; Release: 10mS to 2Sec; Ratio: better
than 20:1
ELOP Limiter: Attack: approx. 10mS for 6dB GR; Release: 2.5 Sec; Ratio:
10:1
Frequency Response: 5Hz to 60KHz
Maximum Output : +32dBm, +30dBm (into 1KOhm load)
THD+N: <.05% @ 1KHz
Dynamic Range: 115dB typical
Output Impedance: 200Ohms
Por Consumption Slam! Analog:
0.480 Amps (480 milliamps = 480mA) @ 120V = 57.6 Watts
0.240 Amps (240 milliamps = 240mA) @ 240V = 57.6 Watts
Outboard Por Supply is factory set for 100V, 120V or 220-240VAC
operation
for original destination country's mains voltage.
Operating Mains Voltage changeable with por transformer re-wiring via switch
and fuse value change.
Mains Voltage Frequency: 50 ˜ 60Hz
Size: 19" X 12" X 3.5" (occupies 2u)
Shipping weight: 25 lbs.




Complete your project from start to finish!


www.music-blvd.com






Manley SLAM!
Stereo Limiter and Micpre

0 (0 Reviews)


$6,660.00


Save up to:
$740.00 (10%)

site1prod620910









Manley Massive Passive
Stereo EQ

0 (0 Reviews)

$5,040.00

Save up to:
$560.00 (10%) site1prod620892










Manley
Massive Passive Stereo EQ - Mastering Version

0 (0 Reviews)

$5,670.00

Save up to:
$630.00 (10%) site1prod620893




Best Seller








Manley Reference
Cardioid Microphone

0 (0 Reviews)

$2,700.00

Save up to:
$300.00 (10%) site1prod620894










Manley
BACKBONE Mastering Insert Switcher with DB25...

0 (0 Reviews)

$5,400.00

Save up to:
$600.00 (10%)







Manley
EQP-1A Limited Edition Stereo 'Pultec' Equalizer

0 (0 Reviews)

$3,240.00

Save up to:
$360.00 (10%) site1prod620888


Best Seller








Manley TNT 2-channel
Mic Preamp

0 (0 Reviews)

$2,700.00

Save up to:
$300.00 (10%) site1prod620883










Manley Gold
Reference Stereo Microphone

0 (0 Reviews)

$7,200.00

Save up to:
$800.00 (10%)
