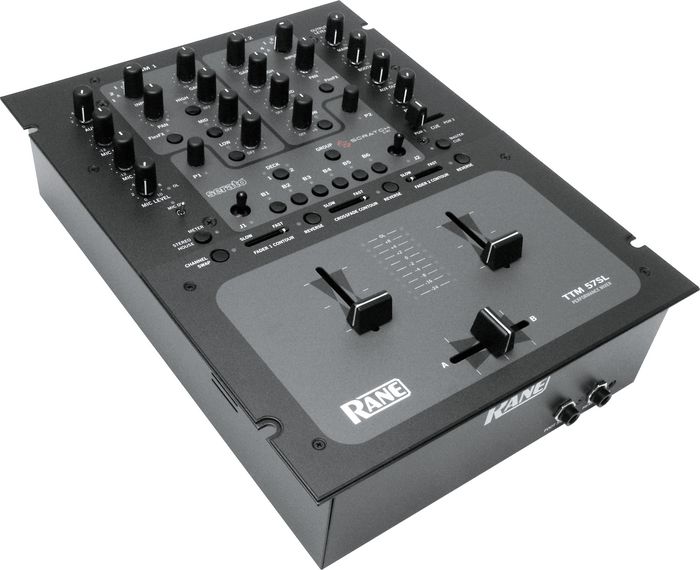

Rane TTM 57SL Performance Mixer with Serato Scratch LIVE Software

Fully control Scratch LIVE without touching your laptop!






The TTM 57SL combines the best Rane and Serato have to offer in a single, high performance mixer. The Rane TTM 57SL fully integrates mixer hardware, software, and software controls in one powerful package. The TTM 57SL combines all the performance and features of the Rane TTM 56 with Serato Scratch LIVE software. But Rane didn't stop there - they also included internal effects with six stereo insert points.

The TTM 57SL comes with two pieces of control vinyl, two control CDs, Scratch LIVE software, and an extensive color manual.

Simultaneously:
Play a combination of digital and analog sources
Play up to two digital files controlled by vinyl or CD while recording your mix
Or, record two stereo sources when not using vinyl or CD control
Cue analog and digital sources
Operate standalone as a no-compromise performance mixer

TTM 57SL Configurations
Any combination of up to four turntables or CD players, any two of which may be used with control vinyl/CDs!

Applications
Battle/live performance DJ
Nightclub
Mobile DJ
Radio/broadcast DJ
Mixtape DJ
Podcasting
Remix project studio/post production


Rane TTM 57SL Performance Mixer with Serato Scratch LIVE Software Features:


Control Vinyl and CDs
Lowest latency vinyl emulation system on the market
Side A: 10 minutes plus Vinyl Select area
Side B: 15 minutes
Continuous control signal allows smooth accurate scratching
Innovative positioning system allows fast, accurate needle drops
Visible time markers on vinyl
Includes two 15-minute control CDs

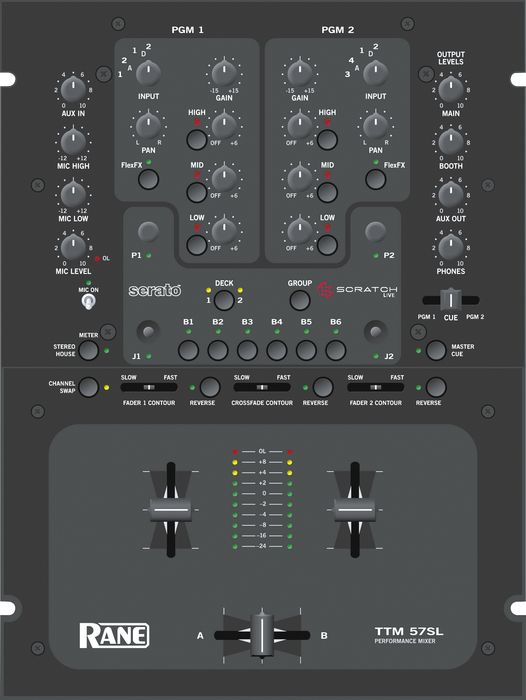

TTM 57SL Mixer

Two Input Buses
PGM 1 selects Analog 1, Analog 2, Digital 1, Digital 2
Select Analog 1 or Analog 2 for Vinyl / CD Control Input 1
PGM 2 selects Analog 3, Analog 4, Digital 1, Digital 2
Select Analog 3 or Analog 4 for Vinyl / CD Control Input 2
All analog inputs are phono / line switchable (rear panel)
Input Gain and Left / Right Pan controls
3-band, full-cut Tone controls with Kill switches
Assign PGM 1, PGM 2 or both to the external FlexFx loop

Magnetic Channel Faders and Crossfader
Non-contact magnetic position sensor technology. No travel noise - No bleed - Ever!
Independent Contour and Reverse controls with Channel Swap

Mic Input
On switch
Level control
High/Low Tone controls

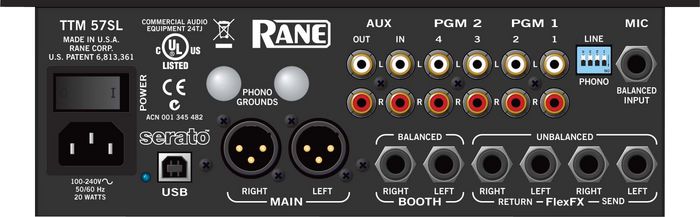

Three sets of Outputs
Independent Level controls
Main Out on XLR (balanced)
Booth Out on 1/4" TRS (balanced)
Auxiliary Out on RCA (unbalanced)

"Soft" mixer controls used by Scratch LIVE and internal LFO Filter & Echo Effects
Deck / Effect 1-2 switch
Group switch maps functions to controls
B1 - B6 programmable switches / cue points
P1 - P2 programmable encoders with push switches
J1 - J2 programmable joysticks with push switches /transform controls
Programmable footswitch input (Up to 3-button control; foot switch not included)

Internal Effects have 6 possible insert points:
PGM 1 Pre-fader
PGM 1 Post-fader
PGM 2 Pre-fader
PGM 2 Post-fader
Main Mix
Auxiliary Input Bus (includes Mic)

Cue monitor
PGM Cue Pan, Master Mix select and Headphone Level control
Both 1/4" and 3.5mm headphone output jacks

Internal, universal switching power supply works almost anywhere in the world (100-240 VAC) [UL/cUL/CE]

USB firmware updates
8 Channels of Streaming Audio
16 bit / 44.1 kHz Streaming Audio
Four channels from computer
Four channels to computer
ASIO and Core Audio Drivers included

Serato Scratch Live:

Playback Modes
Absolute Mode: exact reproduction of record movement, needle drop through tracks — just like normal vinyl
Relative Mode: skip free scratching, jump to cue points, and pitch bend buttons combined with turntable control
Internal Mode: mix with just your laptop using features modeled on DJ CD players. On-the-fly looping, save up to 9 loops per track
Auto mode: play a sequence of tracks or entire "crate" contents automatically
Vinyl select mode: Use your turntable to pick the next song without touching the computer keyboard

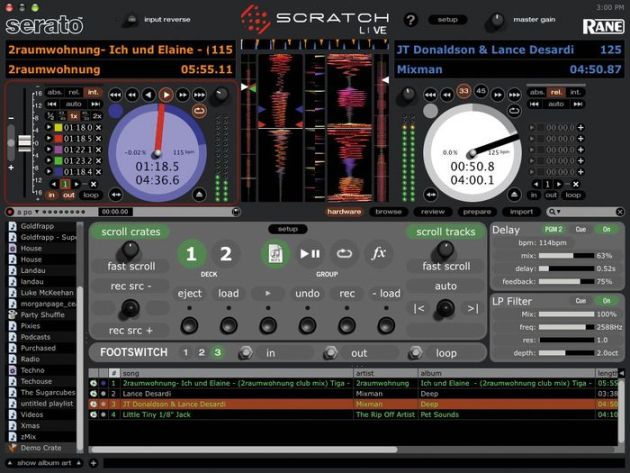

Display Features
Full track overview: Quickly find where the beat drops, find breakdowns and choruses
Variable zoom waveforms centered around current position; Display horizontally or vertically
Waveform colored by frequency to distinguish instruments visually
Visual markers can be set at important cue points, triggered from the keyboard or the TTM 57SL, and stored within each track
Beat display emphasizes track transients to visually assist beatmatching
Tempo display assists rapid track tempo-matching

Play Features
Large on-screen record label shows elapsed time and time remaining
Coarse and fine pitch controls, "bend" control assists in beat matching
Censor (quick reverse with no timing loss) can remove expletives on the fly
Turntable lock: only allows loading on a stopped deck to prevent accidental track changes

Record Features
Sample or record directly from vinyl
Record from Pre- or Post- fader PGM 1 or PGM 2, Master Mix, Aux Input or Mic Input (to WAV or AIFF formats)
Sample from the mic and instantly scratch as if it were vinyl

Library Features
Play File formats: Fixed and VBR MP3, AIFF, WAV, OGG Vorbis
Adjustable gain setting per song file
Play tracks direct from CD and CD-ROM
Full iTunes integration: Use your playlists and iTunes library
Browse music collection by Artist, Album, BPM or Genre
Optional album art display
Intuitive search. Edit ID3 tags with full Unicode support
Crate system for organizing sets
Drag & drop track importing, no MP3 preprocessing required
Add whole directories of music files on the fly: tags are read in the background without interruption

Other Features
Extensive keyboard shortcuts for fast access to key functions
Single key song loading. Single key deck swapping
Instant doubles, load the same track on both decks at the same point for instant flange effect and back-to-backs
Single key left and right deck operations: play/pause forward/reverse, bend ±, pitch ±, cue points
Hot swap external drives with fast, automatic library merging and retention of crates
Low power warning when running off a laptop battery
Latency can be adjusted to match CPU power
Built-in help and tips in multiple languages


Rane and Serato-the ultimate combination. Click or call to order today!


Rane TTM 57SL Performance Mixer with Serato Scratch LIVE Software Specifications:


PC requirements for bundled Scratch LIVE software:
Macintosh: G4-500 / OS X 10.3 / 512MB RAM (or) Windows: P3-700 / Windows XP / 512MB RAM

Unit size: 13.5"H x 10"W x 4"D (34.3 cm x 25.4 cm x 10.2 cm)
Weight: 8.5 lb (3.8 kg)
Shipping Size: 7.75"H x 12.75"W x 19.25"D (19.7 cm x 32.5 cm x 49 cm)
Weight: 12 lb (5.5 kg)
