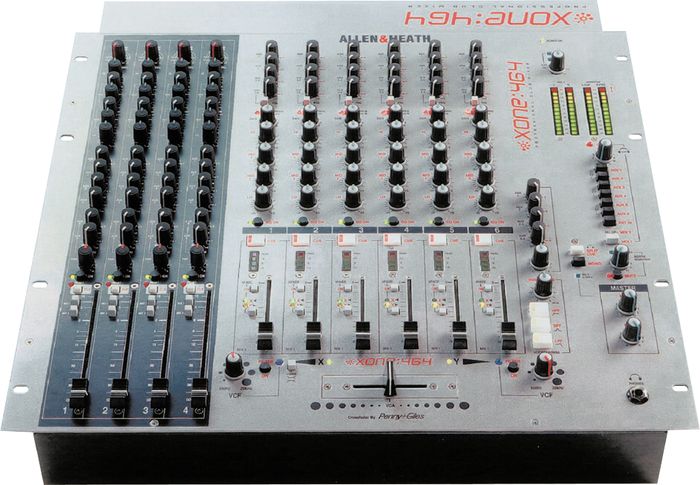

Allen & Heath Xone 464 16-Input Pro Club DJ Mixer

A versatile DJ mixer




The Allen & Heath Xone:464 is a 16 input, 5 output Pro Club DJ Mixer with unique analogue filters and 4 band asymmetric EQ also make it an incredibly creative tool for DJs. Allen & Heath also included a set of 4 fully featured mic/line inputs, which are great for venues running small live sets as well as DJs, or for those pioneering artists who are mixing live and recorded sources.

4 Mono Inputs: XLR or TRS jack connector, gain, 4 band EQ with swept mids, HPF @ 100Hz, 6 aux sends (1-4 pre, 5&6 switchable pre/post fader), pan, peak signal led, cue and on button with led. 100mm long throw fader. Insert point and direct output on TRS jack

6 Dual Stereo Channels: 2 stereo sources (A & B) per channel. A is on RCA for all channels with RIAA preamps on CH 5,6,9,10. B inputs are line in on RCA CH 5 & 10 and TRS on CH 6,7, 8 & 9. Access to all 6 auxes is at the top of the channels, leaving performance area clear. 3 colour bar meter and gain control. Powerful 4 band EQ with on switch. 60mm fader and X-fade assign section

Stereo Mix Outputs: 2 independent mix outputs with level controls, 12 segment 3 colour led metering and insert. Balanced XLR plus secondary RCA outputs, plus selectable mono out also on XLR and TRS. CH1-4 feed mix1 or mix2. Stereo channels feed mix1 direct or via the X-fader. Mix1 can route to mix2

6 Auxiliary Sends: 6 aux sends to [TRS] outputs for monitors or FX sends. Mic / line CH 1-4 have individual sends and stereo CH 5-10 have aux 1&2 individual mono sum and auxes 3&4, 5&6 paired with L to odd, R to even. Aux sends 1-4 are always pre-fade, while auxes 5&6 are switchable pre/post fader. Additional controls allow aux sends to track the X-fader post fade

4 Stereo 2 Mono Zone Outs: Mix1, mix2, post x-fader aux 3&4 and 5&6 can provide stereo mixes on rotary controls. Post x-fader aux 1 & aux 2 can provide mono mix outputs with level controls

4 Band EQ: Mono channels have 2 swept frequency mids. Stereo channels have EQ-on switch and all frequency sections have +6dB boost to preserve headroom and -26dB cut for creative mixing

VCA Cross Fader: Conductive plastic, high quality 45mm Penny & Giles fader with curve switchable to cut or dip. Stereo channels can be assigned to X (left) side with green led indication or Y (right) side with yellow led. VCA operation means wear and tear does not affect audio. Drop-in replacements. Pan trim control for imbalance

Voltage Controlled Filters: 2 filters [1 for each side of the x-fader] with choice of High Pass, Band Pass, Low Pass or multiples e.g. notch. Resonance control - adjusts Q from 'mild to wild'. Sweep controls from 100Hz to 20kHz with blue led on switch

External Input: TRS jack inputs via level control to mix1, mix2 or monitor

Engineer / DJ's Toolbox: The Allen & Heath Xone:464 has 2 high powered headphone outputs with level. Booth output on TRS with level. Monitor section has 8-way switch bank to select monitor source. 12 segment 3 colour bar metering. Channel cue overrides the monitor selected in the phones [and booth if Cue Enable is pressed]. Split Cue sends cue signals to left and selected program to right. Mute kills local monitor output [option for -20dB action]. Mono sum button for phase and compatibility check.

PSU: High performance internal switched-mode power supply. Universal mains input voltage

Configuration Options: Internal links to configure mono CH aux sends to pre-EQ and / or pre-ON. Stereo CH Cue to post EQ. Stereo CH auxes to pre-EQ. Direct out to pre-fade. EXT in -10dBV/+4dBu. Monitor Mute to -20dB attenuator. Remote local monitor mute. These options require competent installation or service personnel SysLink kit — output on 25-pin D connector to link to other A&H consoles

The Allen & Heath Xone:464 DJ Mixer ships with mains leads, user guide, spare knobs & faders, A&H stickers


Features


4 Mono Inputs
6 Dual Stereo Channels
Stereo Mix Outputs
6 Auxiliary Sends
4 Stereo 2 Mono Zone Outs
4 Band EQ
VCA Cross Fader
Voltage Controlled Filters
External Input
