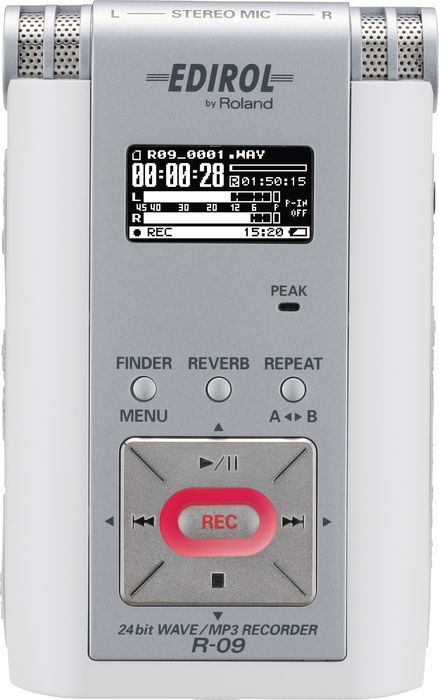

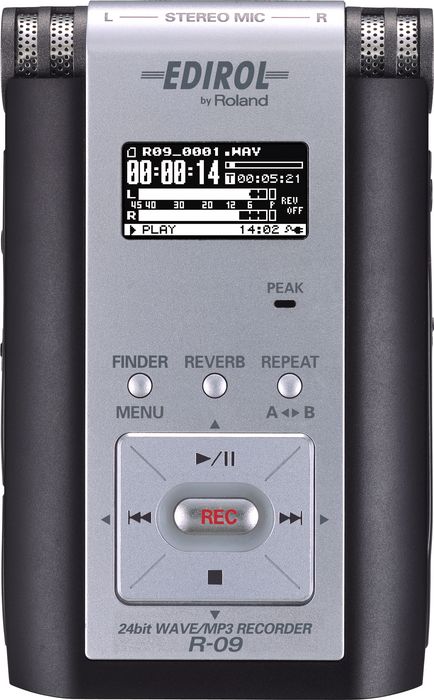

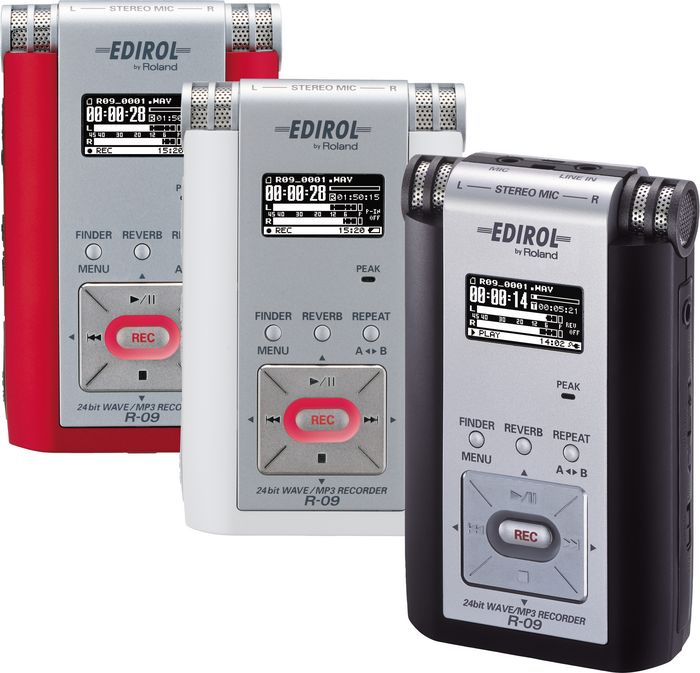

Edirol R-09 24-Bit Wave/MP3 Recorder

Professional sound quality in the palm of your hand!

It's ultra small and looks like a gadget, but make no mistake—the R-09 is a serious, top-quality professional recorder. Capture source material at a crystal-clean 24-bit resolution with your choice of 44.1 or 48kHz sample rates. You can record and play back in MP3 format as well (up to 320kbps). Once recorded, your files can be monitored through the R-09's headphone jack and/or exported to a computer via USB.

I.A.R.C. (Isolated Adaptive Recording Circuit)
I.A.R.C. is the newly developed dedicated analog circuit optimized for recording on R-09. Electrolytic capacitors provide stable, reliable power to the analog circuits, eliminating DC interference. The R-09 offers an input gain volume control to manually adjust recording levels.

Microphone Included
To record audio into the R-09, there's no extra gear to buy or no cables to connect. A quality stereo microphone is built right into the unit, complete with a dedicated input control, mono/stereo selector, low-cut filter, and gain boost. Just point and record! If you wish to use an external microphone, the R-09 offers a 1/8" mic input.

Sweetening
The R-09 is more affordable than its predecessor, the R-1. One reason the R-1 carries a heavier price tag is because of its well-stocked lineup of internal effects. The R-09 isn't devoid of effects, however. It contains the world's most-requested/desired effect: reverb. Whether you're listening to WAV or MP3 files, you can route the R-09's playback through its internal reverb processor, immersing it in lush, user-controllable ambience.

More Than Music
The R-09 audio recorder is perfect for capturing live music events, recitals, and rehearsals. It's also handy as a songwriter's sketchpad, ensuring that no moment of inspiration is lost. But the R-09 has many valuable uses outside of the music world as well. Students can use it to record lectures. Broadcasters and journalists can throw away their antiquated cassette recorders and use the R-09 for in-the-field interviews. Wherever, whenever there's a need to capture audio, the R-09 can do it hassle-free thanks to its built-in microphone and long battery operation.

USB 2.0 Connection to Computer for Rapid File Transfer
The Edirol R-09 can connect to the outside world via USB 2.0 for importing/exporting audio files via computer very quickly. For example, a 600 MB recording at 44.1 kHz/16-bit takes only 5 minutes to transfer, only 1/12 of the time it would take to transfer the same recording from a MiniDisc or tape (cassette/DAT) recorder.


Edirol R-09 24-Bit Wave/MP3 Recorder Specifications:


Input and Output

Audio Inputs Internal Stereo Microphone, Mic input (Stereo miniature phone type, plug-in powered mic), Line input (Stereo miniature phone type)

*The Internal/External MIC and the Line input can't be used at the same time; only the Line input is effective.

Audio Outputs: Phones* (Stereo miniature phone type), Digital Out Connector* (Optical miniature phone type) *Phones and Digital Out use a common jack.

Nominal Input Level (Variable): Mic Input: -36 dBu (Default input level), Line Input: 0 dBu (Default input level)

Input Impedance: Mic input: 20 k ohms, Line input: 17 k ohms

Frequency Response: 20 Hz to 22 kHz

USB Interface: Mini-B type connector (support USB 2.0/1.1 mass storage device class)

Effects: Playback Reverb: 3 types (Hall1, Hall2, Room, Plate)

Others

Display: 120 x 64 dots OLED (Organic Light Emitting Diode) Graphic Display

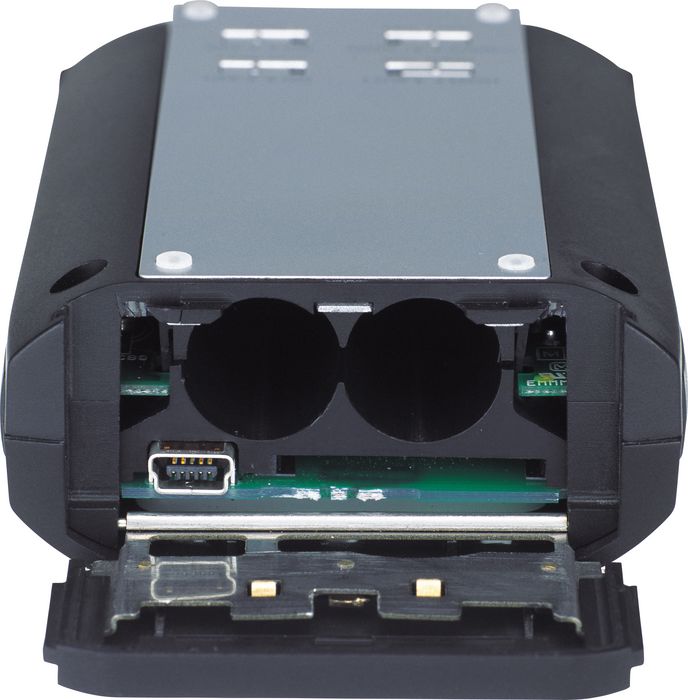

Power Supply: AC Adaptor, Alkaline dry battery LR6 (AA) type x 2, or Nickel Hydrogen battery (HR15/51)

Current Draw : 360 mA

Accessories: Owner's Manual, AC Adaptor (PSB-6U), SD Memory Card (64 M bytes), USB Cable (Mini-B type)

Dimensions (W x H x D): 2-1/2" x 1-3/16" x 4-1/16"

63 mm x 29 mm x 102 mm

Weight: 0 lbs. 6 oz, 0.1 kg

*0 dBu = 0.775 Vrms


Edirol R-09 24-Bit Wave/MP3 Recorder Features:


24-bit/48kHz (or 44.1kHz) linear PCM recording

Ultra portable, half the size of the R-1

Up to 320 kbps MP3 recording

Records to SD card

Isolated Adaptive Recording Circuit (I.A.R.C.)

High-grade stereo condenser microphone built in

Mic and Line audio inputs

High speed file transfer via USB 2.0 connection to computer

Easy operation, user-friendly graphic display

Time & date stamp

Long battery life (4 hour recording with AA alkaline type x 2)


Edirol R-09 24-Bit Wave/MP3 Recorder Includes:


Owner's Manual, AC Adaptor (PSB-6U), SD Memory Card (64 M bytes), USB Cable (Mini-B type)


Don't miss another special moment. Whether it's the concert where you first fell in love (or will), or your child's first big performance, capture your audio memories in high-quality digital sound—right in the palm of your hand.
