Nady UHF-4 Handheld Wireless System

Advanced features, lower price!




The Nady UHF-4 Handheld Wireless System offers
offers high-quality wireless at an amazingly affordable price. Here's
live sound wireless with interference-free operation on select UHF
frequencies; companding circuitry for a 120dB dynamic range; and clear,
natural sound.

A Nady DigiTRU Diversity dual-antenna system
prevents dropouts and extends range. Tone Squelch blocks potential
interference. The Nady UHF-4 wireless system's full LED indicators keep
you on top of things. Nady includes unbalanced 1/4" and unbalanced XLR
outputs and silent transmitter on/off.

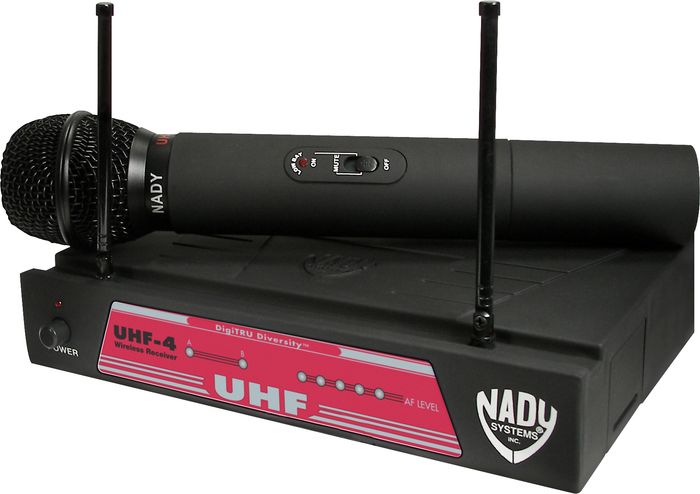

The Nady UHF-4 wireless
system includes a receiver and a hand-held microphone transmitter. The
microphone has a Nady DM-10D unidirectional neodymium dynamic cartridge
for true sound, maximum feedback rejection, and minimal handling noise.
The transmitter offers status and low-battery indication and an
off/standby/on switch. A 9V alkaline or NiMH battery provides 4-6 hours
of continuous usage.

Consumer Alert:Most users do not need a license to
operate this wireless microphone system. Nevertheless, operating this
microphone system without a license is subject to certain restrictions:
the system may not cause harmful interference; it must operate at a low
power level (not in excess of 50 milliwatts); and it has no protection
from interference received from any other device. Purchasers should also
be aware that the FCC is currently evaluating use of wireless
microphone systems, and these rules are subject to change.



Features

Interference-free operation on select UHF frequencies from 794 to 865MHz
Half-rack receiver design
Dual folding antennas on front panel
Exclusive Nady companding circuitry for a 120dB dynamic range
Clear, natural sound
Tone Squelch for locking out potential interference
DigiTRU Diversity for maximum range and dropout protection
Full LED indicators
Both 1/4" unbalanced and XLR balanced outputs




Order now and have wireless you can depend on.



UHF-4 Handheld Wireless System Specifications:




Frequency Response 30Hz-18kHz, ±3dB
Dynamic Range 120dB
Total Harmonic Distortion <0.6%
RF Carrier Frequency Range UHF, choice of single frequencies in separate bands within 794-865MHz
Frequency Stability ±0.005%, crystal controlled
Modulation FM (F3E), ±20kHz normal
Operating Range Up to 250 ft. typical (depending on site conditions); up to
500+ feet optimum line-of-sight


Receiver
Reception Mode DigiTRU Diversity (Dual Antenna)
Squelch External Control, Tone Key (30.768kHz)
Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust
Connectors DC in, 1/4"
Reception Mode DigiTRU Diversity (Dual Antenna)
Squelch External Control, Tone Key (30.768kHz)
Controls Power ON/OFF, Volume Control, Squelch (Mute) Adjust
Connectors DC in, 1/4" (6.3 mm) unbalanced phone jack (360 mV/no load), XLR balanced output (±24 mV/600 ohm load)
LED Indicators Power ON, Diversity A/B, Audio LED Bars +Peak
Unwanted Signal Rejection 60dB image and spurious
Power Requirements DC 15V @300 mA, AC/DC adapter included
Dimensions (Max.) 1.75"x 7.5"x 8.1"(4.5 x 19 x 20.6 cm)
Weight 0.9 lb. (0.41 kg)
Antenna 3.5"(9.0 cm), dual telescopic


TRANSMITTERS
Audio Inputs UB-4 Bodypack: 3.5mm locking mini-jack, switchable inputs: instrument, headworn mic, or Lavalier mic
UH-4 Handheld: Integral Nady DM-10D neodymium
Dynamic cartridge


Controls UB-4: Power/Standby/Off, Instrument/
Headworn Mic/Lav Mic, Input Level
UH-4: Power/Standby/Off/Input Level
LED Indicator Single color (red), Unit ON (single flash red), Low Battery
Alert (steady red)
RF Power Out 50mW nominal (maximum allowed by FCC)
Harmonic & Spurious Emissions < -50 dB
Battery UH-4: 9V Alkaline UB-4: 9V Alkaline
Battery Life 10 Hours
Dimensions UB-4
UHF-4 Hand-held: 9-1/2" x 2"
(24 cm x 5.1 cm)
Weight UB-4 Bodypack: 3.1 oz. (88 g) without battery
UH-4 Hand-held: 6.6 oz. (187 g) without battery





*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
