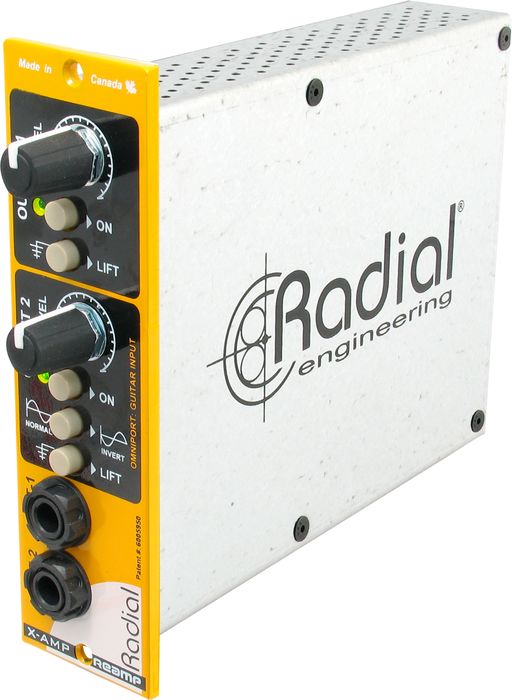

Radial Engineering X-Amp 500 Reamp

Brings the magic of reamping to the masses.



The Radial X-Amp 500 Reamp is one of the eight
modules designed to be comprise the Radial Workhorse Rack and Mixer
System that combines the popular 500 series platform with an incredibly
flexible patching system to let you create the ultimate studio
environment.

The Radial X-Amp is a 500 series module that lets
you take a pre-recorded guitar track and send it back to amplifiers and
effects so that you can tailor the sound to suit. The advantages of
Reamping are many: when recording, the guitarist need only concentrate
on the performance. Working out specific sounds and optimal mic
placement can be done later. This eliminates hours of tiresome
repetition while allowing the producer to adjust the character of the
track as the production evolves.Using the X-Amp is 'plug and play' easy
to use. The design begins with an XLR balanced line level input located
on the 500 series rear panel that feeds the X-Amp. To ensure the very
highest fidelity, 100% discrete class-A circuitry is employed. The X-Amp
unbalances and buffers the pre-recorded signal where it then feeds two
transformer isolated hi-Z guitar level outputs. The ¼" jacks are front
mounted for desk-top convenience and equipped with ground lifts to help
eliminate hum and buzz caused by ground loops. Independent level
controls enable you to adjust the drive going to each amp for optimal
tone. Should one of the amps be out of phase, depressing the 180°
quickly brings both in line. The X-Amp Reamper works with guitars,
basses, keyboards and even voice! You can send the signal through guitar
effects pedals too. In fact the only thing holding you back is your
imagination.



Features

Active Reamp designed for 500 series racks
100% discrete class-A electronics for best tone
Transformer isolated to eliminate hum and buzz
Easy access front panel jacks & controls


Lets you choose the right sound you each mix!
X-Amp 500 Reamp Specifications:

Circuit type: Class-A discrete, transformer coupled
Power Requirement: 40mA, +/-16VDC
Frequency Response: 20Hz to 20kHz (adjusted for guitar signals -5dB@20kHz) - 100K Load
XLR


Voltage Gain:
XLR Input to XLR Output: 0dB +/- 0.5dB
Omniport to XLR Output: -3dB +/- 0.5dB
XLR Input to 1/4” outputs: -0.6dB +/- 0.5dB


THD+N:
XLR Input to XLR Output: <0.002% @ 0dBu(20Hz~20kHz)
Omniport to XLR Output: <0.002% @ 0dBu (20Hz~20kHz)
XLR Input to 1/4” outputs: <0.006% @ 0dBu (1KHz)


Noise:
XLR Input to XLR Output: -114dB below 0dBu
Omniport to XLR Output: -95dB below 0dBu
XLR Input to 1/4” outputs: -98dB below 0dBu


Intermodulation distortion:
XLR Input to XLR Output: <0.04% @ 0dBu input
Omniport to XLR Output: <0.005% @ 0dBu input
XLR Input to 1/4” outputs: <0.027% @ 0dBu input


Maximum input:
XLR Input to XLR Output: +26dBu
Omniport to XLR Output: +20dBu
XLR Input to 1/4” outputs: +19dBu


Connector I/O details
XLR input type**: +4dB, balanced female XLR, AES standard, input impedance 1.2k Ohms
XLR output type**: Parallel ‘thru-put’ with XLR input, +4dB balanced, output impedance 600 Ohms


** Typical connectors found on most 500 series racks
OUT-1 type: Instrument-level (variable), unbalanced 1/4”, transformer isolated, impedance 3k Ohms
OUT-2 type: Instrument-level (variable), unbalanced 1/4”, transformer isolated, impedance 3k Ohms
Omniport type: Instrument-level input, unbalanced 1/4”, (on Workhorse), input impedance 220K Ohms
Shipping Weight: 1.5lbs (0.7kg)
Size: Standard 500 series rack format
Warranty: 3 years, transferable
