udio-Technica System 8 Wireless System includes: Handheld Dynamic Unidirectional Microphone/Transmitter

Audio-Technica





Pro quality handheld wireless on a budget.




System 8 Wireless Systems are designed for
reliable performance, easy setup and clear, natural sound quality. The

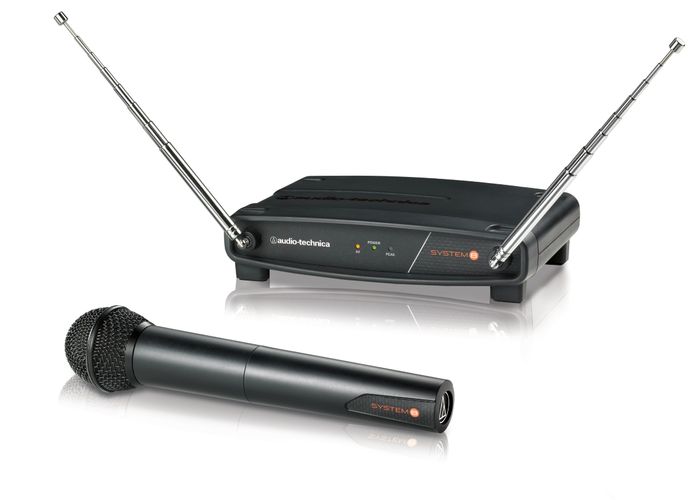

ATW-802-T2 system includes the ATW-R800 receiver and ATW-T802 handheld
dynamic unidirectional microphone/transmitter.

This system
transmits on the T2 band. The band is fixed, and if you are getting
multiple systems, you'll want to be sure that each system occupies a
different band.

A novel “dipole” antenna system on the receiver
improves operation by providing a “ground” element in addition to the
usual “signal” element. Line-of-sight operation is good to about 200
feet.

The System 8 Wireless lavalier system is a well-made,
reliable, good-sounding wireless solution from one of the leaders in
wireless audio technology, introduced at an affordable price. There are
cheaper wireless systems on the market, but many of them lack depth and
presence. The System 8 is professionally presentable for vocalists and
public speakers of all kinds.

Consumer Alert:Most users do not need a license to
operate this wireless microphone system. Nevertheless, operating this
microphone system without a license is subject to certain restrictions:
the system may not cause harmful interference; it must operate at a low
power level (not in excess of 50 milliwatts); and it has no protection
from interference received from any other device. Purchasers should also
be aware that the FCC is currently evaluating use of wireless
microphone systems, and these rules are subject to change.



Features

Easy operation and clear, natural sound quality
Reliable performance and durable construction
Advanced dipole antenna system for extended operating range
Power, RF, and AF Peak indicators
Volume control, 1/4" output jack and user-adjustable squelch
Rugged unidirectional dynamic element
Variable microphone trim control and multi-color battery/power indicator
AA operation on transmitters




Order now and prowl the stage.



System 8 Wireless System includes: Handheld Dynamic Unidirectional Microphone/Transmitter Specifications:

Operating Frequency: VHF highband, 169 MHz to 172 MHz
Modulation Mode: FM
Maximum Deviation: +/-10 kHz
Dynamic Range: >/=90 dB (A-weighted), typical
Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
Operating Range: 200' (60 m) typical
Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
Frequency Response: 80 Hz to 13 kHz


RECEIVER SPECIFICATIONS
Receiving System: Non-diversity, single-channel, dual antenna system
Image Rejection: 50 dB minimum
RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
Audio Output: 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominal
Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
Net Weight: 11.8 oz (335 grams)
Accessory Included: Power supply


HANDHELD TRANSMITTER SPECIFICATIONS
RF Power Output: 10 mW
Spurious Emissions: Following federal and national regulations
Batteries: Two 1.5V AA Alkaline (not included)
Battery Life: 8 hours (alkaline)
Depending on battery type and use pattern
Dimensions: 9.91" (251.8 mm) long,
2.11" (53.5 mm) diameter
Net Weight: 9.2 oz (260 grams)
(without battery)
Accessory Included: AT8456a Quiet-Flex™ stand clamp
