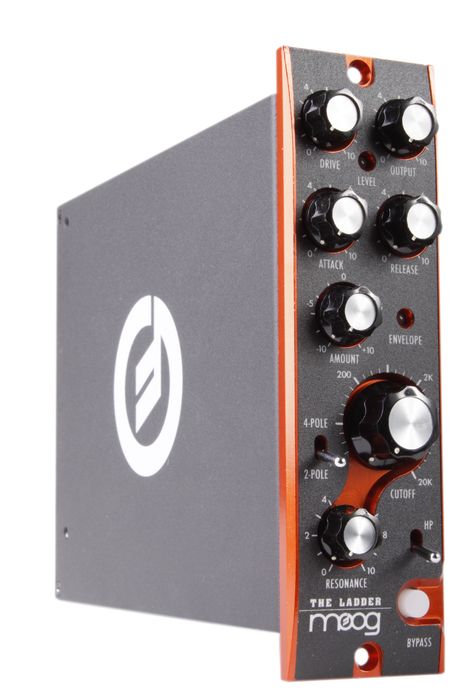

Moog 500 Series Ladder Filter

Moog Music’s first 500 series module is ready for action.



The Ladder is a Dynamic Transistor Ladder Filter
that is based on Bob Moog's original ladder filter designs. The Ladder
is a powerful and fantastic sound sculpting tool that allows for
creative and unique sound shifting and shaping. By design, The Ladder
sports the smoothest all analog Low Pass and High Pass filter section.
Simply adjust the Cutoff knob to add vibe, warmth or tonal adjustment.
Choose LP to add analog vibe and warmth to a sound or select HP for
sweetening and relieving the heft of a sound.

The Envelope
section of The Ladder features many advanced adjustments. The Variable
Attack and Release controls allow you to perfectly dial in the behavior
of The Ladder's envelope section. Use these controls to open and close
the envelope as fast as lightning, or slow as molasses. Use the Amount
control in Positive or Negative mode for mild to extreme sound shaping
and manipulation. From slight timbral excitement and voicing to extreme
compression-like behavior. Even reversed filter action is achievable!
The Resonance control used with The Ladder’s other features allows for
the creation of sweet, dynamic and even speech like behavior. Use it to
tune The Ladder to a sound source… or not. You can excite or accentuate
specific frequencies as well as create completely new unique and wild
sounds. The Ladder's Resonance control will push the unit into
self-oscillation. This can be used for effect if desired.

The
2Pole/4Pole switch allows you to select how aggressive your filter slope
is. 2 pole is equal to 12db per octave which is smooth and sweet, while
4 pole is 24db per octave which is hard and aggressive.



Features

Moog Music’s first 500 series module
Based on Bob Moog's original ladder filter designs
Advanced envelope section with multiple control options
2Pole/4Pole switch allows aggressive filter slope selections
Resonance control used with other features for dynamic and speech like behavior
Hard wire Bypass for totally transparent routing and A/B comparison




Take a big step up from your average filter. Order today.




500 Series Ladder Filter Specifications:

Audio I/O: Balanced line level via 500 rack. +19dBµ to -16dBµ input accepted
Filter Type: 2 and 4 pole dynamic low-pass & high-pass transistor Ladder Filter
Envelope Type: RMS detector, bi-polar with variable attack & release
Attack time: Better than 250µS to 2.0 seconds depending on program material and level
Release time: Better than 150mS to 2.0S depending on program material and level
Envelope Control: Positive and Negative Modulation
Input Impedance: Nominally 24KΩ balanced differential, 12KΩ unbalanced single ended
Output Impedance: Nominally 50Ω differential 25Ω single ended
Max. Output Level: Better than +22dBµ, balanced
Drive Gain: 36dB Range of control
Output Gain: 36dB Range of control
Frequency Response: Better than +/-0.5dB 20Hz – 20KHz pass band Better than +/- 1.5dB 5Hz – 24KHz pass band
Bypass: Hard Relay True Bypass
Power Consumption: Less than 105mA +16V, less than 75mA -16V
