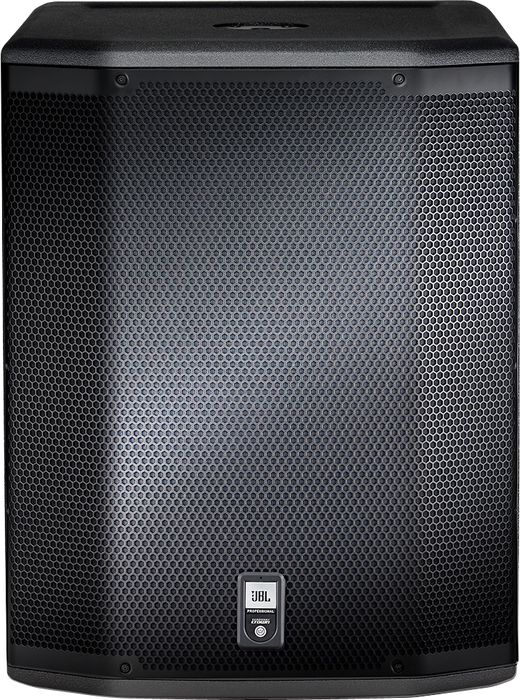

JBL PRX618S-XLF High Performance 18" Subwoofer System

Light on weight, heavy on sound with 1000W of bangin' sub-bass boom.


The PRX618S-XLF extended low frequency subwoofer
was designed and engineered to provide sub-bass frequencies with
accuracy and power. Used as a single sub, in a sub/sat system, or in
multiples as part of a scalable, large format sound reinforcement
system, the PRX618S-XLF performs with extreme efficiency and control.
This sub is stackable and lightweight, ensuring quick setups and
teardowns. And, due to its rugged construction, it's perfect for AV
rental inventories. With a pole receptacle (that accepts a SS4-BK or
SS4-BK24, sold separately) on the top panel and integrated stereo
pass-thru, this is the most powerful low-frequency complement to the PRX
full-range systems. The addition of a polarity reverse option further
enables system optimization.

The PRX618S-XLF is a high
performance self-powered subwoofer system. The PRX618S-XLF is comprised
of a powerful 2268FF Differential Drive dual voice-coil and magnetic
gap, neodymium woofer driven by a 1000W (dual 500W) Crown Class-D power
amplifier. Dual-Bridge Technology directly links discrete amplifier
channel outputs to each voice coil in the Differential Drive woofer.
Electrical power transfer to the transducer is optimized for more power
performance. A proprietary DSP chip is at the core of a fully featured
input section, providing user selectable cross-over functionality,
polarity optimization, protection, dynamic limiting, and discrete
component optimization.

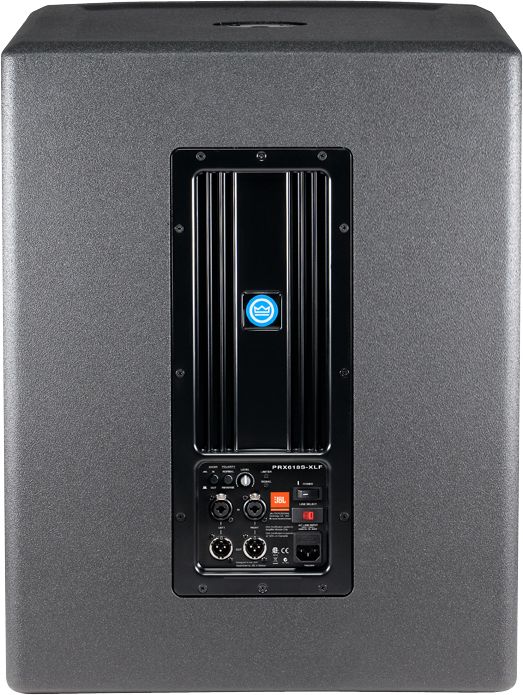

The amplifier input panel offers stereo
inputs with XLR or 1/4" jack compatibility. A user-selectable crossover
ensures a smooth transition to full-range system connected to the stereo
outputs. Signal present and limiter lights indicate the system status
and assist in setting the optimum level, via the level control knob.

Like
all the PRX600 Series cabinets, the PRX618S-XLF is built from a
combination of 25mm (on the top and bottom for added rigidity) and 18mm,
strong, lightweight poplar plywood made structurally sound with tongue
and groove joints. All PRX600 Series cabinets are protected by JBL's
tour proven DuraFlex finish. The grille is made from dent-resistant
16-gauge steel and its handles are made from lightweight glass-filled
nylon for added strength and durability.

Special note:
JBL highly recommends that no more than 70 pounds of weight be placed
on a speaker pole that is mounted to a PRX618S or PRX618S-XLF.


Features

Maximum SPL 133db peak
460mm (18") Differential Drive dual voice-coil and magnetic gap, neodymium woofer
1000W (2 x 500W) Class-D, Crown digital amplifier
DSP input section with dbx Type IV limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and 1/4" Mic/Instrument inputs, with loop through
Obsidian DuraFlex coated plywood construction
Top panel M20 pole mount socket for sub/satellite configuration




Supplement your low-end with this exceptional sub. Order today!





PRX618S-XLF High Performance 18" Subwoofer System Specifications:


System Type: Self-Powered 18", bass - reflex
Maximum SPL Output: 133dB peak
Frequency Range (-10 dB): 30Hz – 105Hz
Frequency Response (±3 dB): 39Hz – 93Hz
Polarity: Normal or reverse polarity
Crossover Frequency: 90Hz
Amp Design: Crown Class D
Power Rating: 1000W (2 x 500)
Dimension (HxWxD): 685.8mm x 530.9mm x 716.3mm (27.0" x 20.9" x 28.2")
Net Weight: 37kg ( 81.5lb.)





*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
