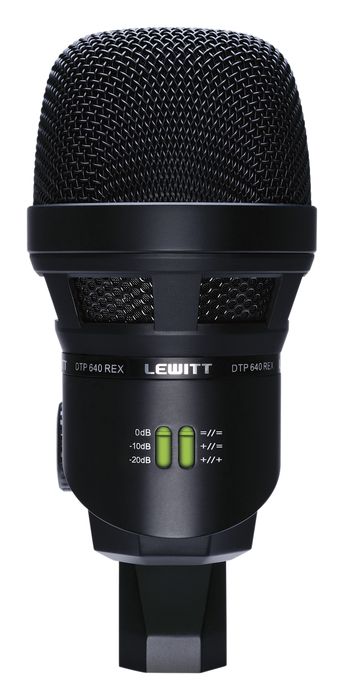

Lewitt Audio Microphones DTP 640 REX Reference Class Dual Element Microphone

Lewitt Audio Microphones


Professional low frequency microphone.




Thanks to variably controlled dual element
technology and fine tuned frequency responses, our flagship among drum
microphones, the DTP 640 REX, offers unparalleled and powerful sound
that will delight professional drummers and sound engineers alike. The
DTP 640 REX is equipped with a high quality dynamic element and a
condenser element – the dynamic element ensures accurate reproduction of
the bass drum kick, while the condenser element optimally captures the
rich low frequency sound of the drum’s shell. In order to guarantee full
control over the two elements, they can be separately mixed on their
own channels.

The DTP 640 REX offers two more features. The
dynamic element emphasizes frequency ranges relevant for the kick drum
in the ‘Dynamic Enhanced Frequency Response’ setting switchable right on
the microphone, while the condenser element captures the sound
neutrally. With ‘Dual Enhanced Frequency Response’, the character of the
sound can be shaped even more individually – with this setting, the
condenser element focuses on frequencies from 70 to 150 Hz and delivers a
full body sound. The dynamic element provides the necessary power by
focusing on the range between 3 and 5 kHz.

The combination of
these features with the comprehensive tonal freedom of dual-element
technology greatly increases the range of use, turning the DTP 640 REX
into a universal tool for bass-heavy applications.



Features

Innovative dual-element design (dynamic and back-electret condenser)
accurately captures the sharp attack of the beater as well as the round
tonalities of the shell for unrivaled realism
3-position switchable "Enhanced Frequency Response" provides various
tailored frequency responses on separate channels for maximum creative
freedom
Frequency response specifically tuned for kick drum applications and bass instruments
3-position switchable pre-attenuation pad (0 dB, 10 dB, and 20 dB) for handling extremely high sound pressure levels
Hardened hexagonal ruthenium-galvanized steel mesh grille to prevent wear and abuse
Integrated stand adapter for quick and easy mounting and positioning
Corrosion-resistant gold-plated 5-pin XLR output connector
Comes in a cardboard box with foam layers; includes DTP 40 Trs cable and DTP 40 Lb artificial leather bag




Order now and make youer kick drum really kick.




DTP 640 REX Reference Class Dual Element Microphone Specifications:


Acoustical operating principle: dynamic, moving coil
Condenser, permanently polarized
Transducer Ø (dynamic): 1,25"
Transducer Ø (condenser): 0,88"
Directional pattern: cardioid, condenser and dynamic
Frequency range: 20 - 16.000 Hz, dynamic, 20 - 20.000 Hz, condenser
EFR, ‘Enhanced Frequency =//= FFR, ‘Flat Frequency Response’
Response’ settings: +//= Dynamic EFR, ‘Dynamic Enhanced Frequency Response’
+//+ Dual EFR, ’Dual Enhanced Frequency Response’
Sensitivity, =//= FFR: 0,4 mV / Pa (-69 dBV) dynamic
2 mV / Pa (-54 dBV) condenser
Sensitivity, +//= Dynamic EFR: 0,4 mV / Pa (-69 dBV) dynamic
2 mV / Pa (-54 dBV) condenser
Sensitivity, +//+ Dual EFR: condenser and dynamic matched at 1 mV / Pa (-60 dBV)
Equivalent noise level: 28 dB-A (IEC 61672-1), condenser, FFR
Dynamic range of mic. amp.: 122 dB-A, condenser
Max. SPL for 0,5 % THD: 150 dB, 0 dB pre-attenuation
160 dB, 10 dB pre-attenuation
170 dB, 20 dB pre-attenuation
Pre-attenuation pad: 10 dB, 20 dB, switchable
Rated impedance: < 500 ohms, dynamic
< 200 ohms, condenser
Supply voltage: 48 V + / - 4 V (IEC 61938)
Current consumption: 2 mA (IEC 61938)
Connector: gold plated 3-pin and 5-pin XLR
Cable: 1,5 m (4,95’) dual shielded Y-cable,
5-pin XLR into two 3-pin XLRs
Dimension: 2,8" X 6,2"
Net weight: 27,3 oz
