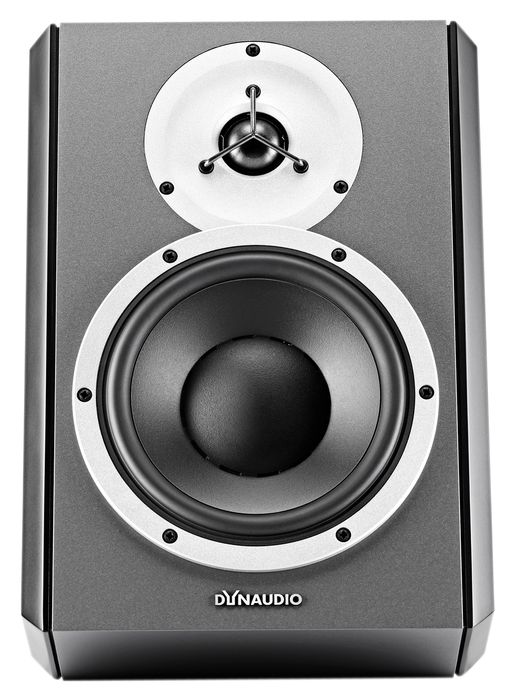

Dynaudio Acoustics DBM50 Active Studio Monitor

Take a radically different angle to desktop mixing.


The DBM50 Studio Monitor from Dynaudio Acoustics
is specifically engineered for desktop use. From it’s handcrafted
Dynaudio drivers to its beautiful exterior, the DBM50 features a unique
angled design to allowing you to be in the perfect listening position.
Using over 35 years of experience, Dynaudio created a new woofer design
for the DBM50 with a 20% larger membrane and a soft roll off giving it

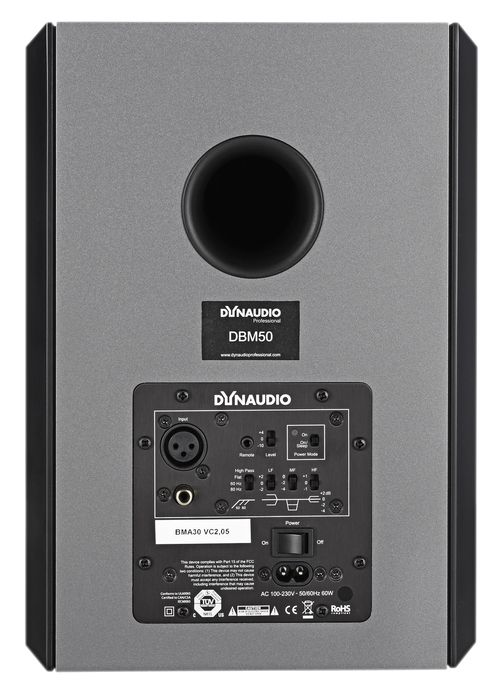

exceptional bass output. The DBM50 also features both RCA and XLR
inputs, and EQ settings that allow it to be fit exactly into your set up
weather it is a near wall placement or free standing.

From the
innovative wave-guide around the tweeter to the optional addition of the
level controller that never compromises the all-important level
interrelationship between speakers, DBM50 is the perfect partner in
situations where the only thing that counts is perfection.


Features:

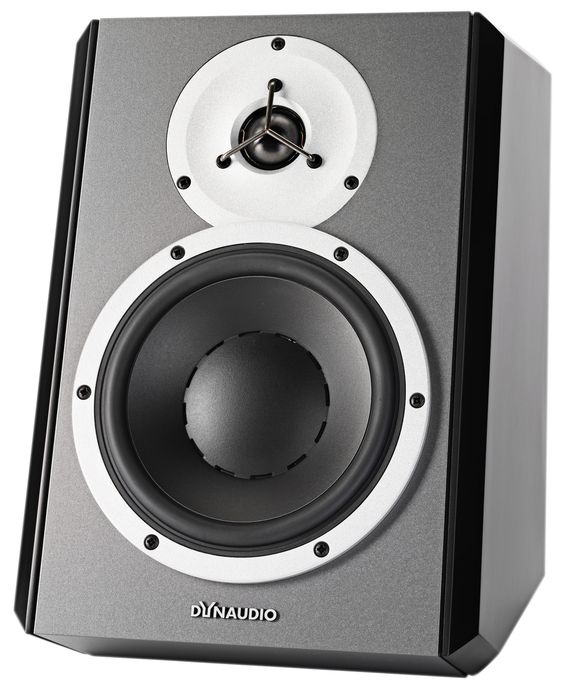

Front baffle tilt for perfect desktop placement
Smooth HF waveguide securing optimal near field sweet spot
Handcrafted drivers, legendary Dynaudio craftsmanship
117dB SPL Peak power
1" High-resolution soft dome tweeter
7.5" Woofer extended excursion
2 Channel 50 watt RMS power amplifier
Frequency response: 46Hz to 21kHz
HF, MF and LF room filtering
HP filtering for optimal subwoofer adaption
Auto standby mode




Put yourself in the ‘sweet spot’ today.





DBM50 Active Studio Monitor Specifications:


Model: DBM50
System: Two-way Active Nearfield Monitor
Frequency Response (+/- 3 dB): 46Hz - 2kHz
Max SPL 1m, pair (IEC Short Term): 117 dB peak
Max SPL 2m, 5.1 (IEC Short Term): N/A
Input level for 85 dB SPL @1m (+4/-10): 80mV @ 0dB setting
Input level for max peak SPL (+4/-10): -10dB: 4.8Vrms, 0dB: 1.5Vrms, +4dB: 1Vrms
Power consumption: Idle: 5.8 W / Max: 94 W
Amplifier power: Tweeter: 50 W / Woofer: 50 W
Resonance Frequency: 39Hz
Internal Cabinet Volume: 13.9 liters
Bass Principle: Bass Reflex
Crossover Frequencies: 1500 Hz
Crossover Slope: 6 dB/oct
Tweeter: D-281 - 28 mm soft dome, rear chamber, magnetic fluid, 4mm aluminum front, Pure alu wire voice coil
Woofer: 180 mm/7.1", One-piece thermo formed MSP cone, 75mm/3" pure aluminum wire on kapton former
Weight: 15.9lb
Dimensions (WxHxD): 9.1" x 13.7" x 13.2"
High pass filters: 60Hz, 80Hz, Off
High Pass' Switch: Flat: 25Hz, 2nd order / 60Hz: 60Hz, 2nd order / 80Hz: 80Hz, 2nd order
LF' Switch: +2: +2 dB low shelf 150Hz / 0: Flat / -2: -2 dB low shelf 150Hz
MF' Switch: 0: Flat / -2: -2 dB notch 450Hz Q0,7 / -4: -4 dB notch 450Hz Q0,7
HF' Switch: +1: +1 dB high shelf 1,5kHz / 0: Flat / -1: -1 dB high shelf 1,5kHz


*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
