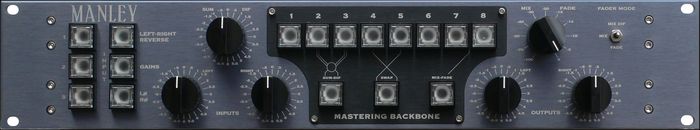

Manley Backbone Mastering Insert Switcher with ELCO Connectors

The centerpiece of a mastering system allowing control of up to eight pieces of outboard gear.


Winner of the 2009 TEC award, the Manley Backbone
Mastering Insert Switcher accepts up to three balanced source inputs,
selectable on the left side. Left & right can be reversed and
absolute polarity can be flipped. The 24 position input & Output
gains can be switched active or left passive. Up to eight inserts can be
switched in or bypassed. A sum – Difference MS Matrix can be addressed
between inserts 2 and 3. The order of inserts 4 & 5 can be swapped.
The Manley Backbone Switcher has an injection point between inputs 7
& 8 to allow for several functions on the 3-Function mix – Fade
output control. You can mix in the Difference signal from the input.
This mixes in some out-of-phase signal from the input to the output in
order to widen the image if desired or you can mix in a parallel signal
in between inserts 7 & 8. A lot of folks run a reverb or parallel
compressor in this fashion. Or you can use the knob as a fader to make
smooth and accurate level fades with the Penny & Giles rotary fader.

This Manley Backbone comes with ELCO connectors for the INSERTS I/O. Cables sold separately.


Features:



3 x Balanced Stereo Inputs
8 x Balanced Stereo Inserts
Selected Input can be mixed to parallel outputs
Patchable SEND and RETURN
Balanced signal path all the way
Left - Right Reverse Switch
Absolute Polarity Reverse Switch
Bypass GAINS makes passive signal path
Over 90 nice relays employed
EAO switch buttons can be easily custom labeled
INPUT and OUTPUT GAINS use 4 x 24 position Grayhill switch attenuators
SUM – DIFFERENCE (MS Matrix) can be used for Inserts 2 & 3
Separate SUM and DIFFERENCE outputs available on rear panel
SWAP order button can be used to reverse the order for Inserts 4 & 5
MIX - FADE injection between 7 & 8 with mode select
Expensive Penny & Giles rotary fader/mixer
Bulletproof MANLEY build quality





Get the flexibility and control you need in your studio! Order today.



Backbone Mastering Insert Switcher with ELCO Connectors Specifications:



Frequency Response: ±0.1 dB, 10Hz–100KHz
THD + Noise @ +4 dBu input level: 0.0015% A-WGT
THD + Noise @ +22 dBu input level: 0.0011% A-WGT
IMD60 4:1@ +4 dBu input level: 0.0017%
IMD60 4:1@+22 dBu input level: 0.0035%
Crosstalk Rejection: > 95dB @ 1 kHz between Gains and Mix-Fade Stages
Crosstalk Rejection: > 70db @ 1Khz at SUM-DIF stage
Common Mode Rejection: > 100dB @ 100Hz; > 95dB @ 1KHz; > 80dB @ 10KHz
Noise floor: -95 dBu, Bandwidth 22Hz-22KHz A-WGT
Maximum Signal Level: +28dBu
Dynamic Range: 124dB
Input Impedance: 30K ohms
Output Impedance: 150 ohms
Input/Output Stepped Gain Switches accuracy: ± 0.05dB
Power Consumption: 60 watts
Mains Fuse: 0.5A @ 100–120VAC; 0.25A @ 220 ˜ 240VAC
Mains Fuse type: 5mm x 20mm SLO-BLO GDC glass fuse, 250V AC rating
NOTE:
Operating mains voltage: Units are purpose built for original
destination country's mains voltage: 100V, 120V, or 220-240VAC
as
indicated on the serial number badge. The power transformer in this
unit must be rewired in order to change mains operating voltage.
Unit Size: 19" x 10" x 3.5" (occupies 2u) Note: add 5" behind unit for cable allowance
Unit Weight: 13 lbs.
Shipping Weight: 19 dim. (international); 17 lbs. (USA)
Shipping Box Dimensions: 23" x 15" x 9"
