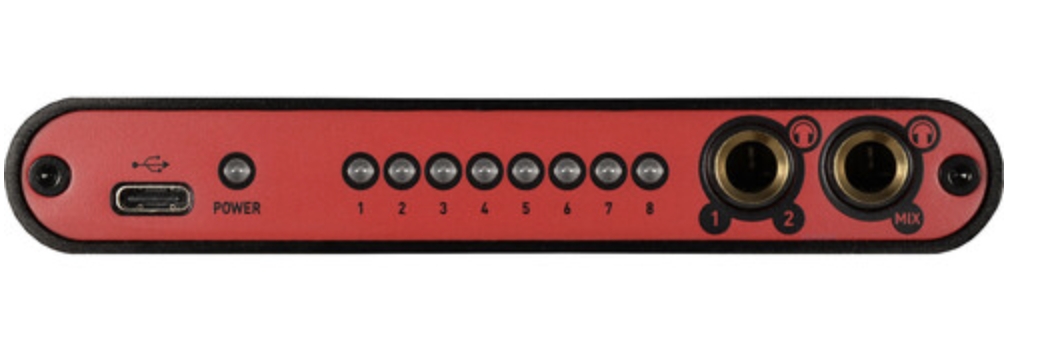

ESI GIGAPORT eX Desktop 8-Output USB Type-C Audio Interface

ESI ESI-GIGEX Overview





As a compact desktop USB Type-C audio interface that supports high-resolution multichannel surround sound playback, the ESI GIGAPORT eX offers DJs, producers, and mobile mixers a portable and simple solution for getting audio out of their Mac/Windows computer or iOS mobile device. It sports eight independent line outputs on unbalanced RCA jacks and two independent 1/4" stereo headphone outs, all capable of resolutions up to 24-bit / 192 kHz.
With no controls or switches to configure, the GIGAPORT eX provides user-friendly operability. Though its primary functionality serves audio playback, the interface's virtual loopback option can be used for internally recording the output of one application to another. Run the GIGAPORT eX with your favorite DAW or use the supplied software bundle to start creating tracks.







High-Resolution Multichannel Playback



24-bit / 192 kHz D/A converter with 114 dB dynamic range (A-weighted), available on all output channels
Provides eight independent outputs and supports up to 7.1 surround sound
Perfect for mobile mixing, DJing, and Hi-Fi playback







Line and Headphone Outputs



Eight independent output channels with -10 dBV unbalanced RCA connectors
Two independent 1/4" stereo headphone outputs—the first one outputs a mix of all playback channels, while the second output is sourced from playback channels 1-2
Eight status LEDs to show activity on each corresponding playback channel







Loopback for Internal Playback Recording



Play any audio signal in any application, while you record it with different software
Record the main master output signal of a DJ mix on the same computer
Record what you are streaming online
Print the output of a software synthesizer application







Versatile Compatibility



USB 3.1 Gen 1 audio interface with USB Type-C connector
USB 2.0 compatible
Bus powered via USB
Includes USB Type-C cable and USB Type-C to USB Type-A cable
Compatible with macOS/Windows computers and mobile devices
100% class compliant, works with Core Audio
Supports ASIO 2.0, WDM, MME with ESI's EWDM drivers, and Core Audio







Bundled Software



Audified inTone 2 ESI Edition: Jamming tool for producing mixes of multiple audio signals and instruments, playing files, changing tracks, and preparing streams for podcasts and recordings
GK Amplification 2 LE and ampLion Free: Bass and guitar amp simulator software
Stanton Deckadance LE v2: DJ software that elevates the freedom of creative expression for remix and groove producers, turntablists, and club/mobile/home DJs

www.music-blvd.com $199.95
