AKG Perception Wireless Instrumental Set Band A

A wireless system ideal for an exceptionally wide range of applications.

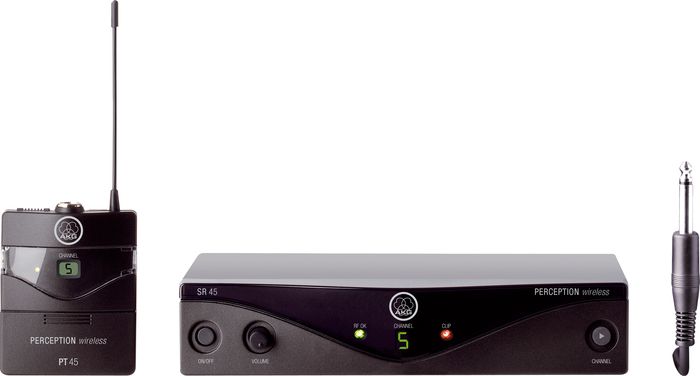

The Perception Wireless Instrumental Set
comprises an SR 45 receiver and PT 45 bodypack transmitter, the smallest
and lightest transmitter in its class. It can be used with many AKG
miniature microphones, and the battery compartment cover doubles as a
convenient tool for setting input gain for the application at hand.

The
system comes complete with a universal power supply with US/UK/EU
adapter, MKG L cable with ¼” jack plug and mini XLR connector, and one
AA size dry battery.

In combination with the C 519 ML (sold separately) also suitable for wind instruments.

SR 45 Stationary Receiver
The
SR 45 Stationary Receiver delivers a diversity system, professional XLR
and Jack outputs, and the SMPS solution. The audio level and squelch
threshold are adjustable on the receiver. It is a stationary receiver
for use with all transmitters of the Perception wireless system.

The
SR 45 operates within a switching bandwidth of up to 30 MHz in the 500
to 560 MHz UHF carrier frequency range and offers up to 8 selectable
carrier frequencies.

PT 45 bodypack transmitter
The
PT 45 bodypack transmitter lets you use both dynamic microphones and
condenser microphones operating on a supply voltage of approx. 4 V.
Naturally you may also connect an electric guitar, electric bass or
keytar.

The PT 45 operates within a switching bandwidth of up to
30 MHz in the 500 to 560 MHz UHF carrier frequency range and offers up
to 8 selectable carrier frequencies.

Consumer Alert (for US users)
Most
users do not need a license to operate this wireless microphone system.
Nevertheless, operating this microphone system without a license is
subject to certain restrictions: The system may not cause harmful
interference; it must operate at a low power level (not in excess of 50
milliwatts); and it has no protection from interference received from
any other device.

Purchasers should also be aware that the FCC
is currently evaluating use of wireless microphone systems, and these
rules are subject to change. For more information, call the FCC at
1-888- CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless
microphone website at www.fcc.gov/cgb/wirelessmicrophones

Consumer Alert:Most users do not need a license to
operate this wireless microphone system. Nevertheless, operating this
microphone system without a license is subject to certain restrictions:
the system may not cause harmful interference; it must operate at a low
power level (not in excess of 50 milliwatts); and it has no protection
from interference received from any other device. Purchasers should also
be aware that the FCC is currently evaluating use of wireless
microphone systems, and these rules are subject to change. For more
information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or
visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.


Features

30 MHz selection bandwidth (depending on local frequency plans)
8 hours of operation with a single AA size battery
Compatible with all AKG MicroMics
Low battery indicator
Smallest and lightest bodypack transmitter in its class
Complete with MKG L cable for direct connection to electric guitar or bass
IncludedPT 45 bodypack transmitterAA batteryMKG L cableSR 45
receiverSMPS switched mode power supplyGuarantee cardFrequency
tableManual supplement sheet




Order a wireless system that faithfully reproduces the sound of your favorite instrument.




Perception Wireless Instrumental Set Specifications:

SR 45 Stationary Receiver
Carrier frequency range: 500 – 560 MHz
Modulation: FM
Audio bandwidth: 40 – 20,000 Hz
T.H.D. at 1 kHz: typ. 0.8%
Signal/noise ratio: typ. 105 dB(A)
Squelch threshold: 100 to -70 dBm adjustable
Audio
outputs: Balanced XLR and unbalanced 1/4" (6.3 mm) jack: adjustable
from mic to line level. Output level at rated deviation: 500 mV RMS
Dimensions: 7.87" x 7.48" x 1.73", (200 x 190 x 44 mm)
Net weight: 12.69 oz, (360 g)

PT 45 bodypack transmitter
Carrier frequency range: 500 – 560 MHz
Modulation: FM
Audio bandwidth: 40 – 20,000 Hz
T.H.D. at 1 kHz: typ. 0.8%
Signal/noise ratio: typ. 105 dB(A)
RF output: 10 mW
Power requirement: 1x 1.5 V AA size battery
Battery life: 10 hours
Dimensions: 2.36 " x 2.91" x 1.18", (60 x 74 x 30 mm)
Net weight: 2.11 oz, (60 g)
