Mojave Audio MA-100SP Stereo Microphone Pair

Mojave Audio



A versatile stereo tube pair with interchangeable capsules.


The Mojave Audio MA-100SP is a matched pair of
MA-100 small-diaphragm, vacuum-tube condensers with interchangeable

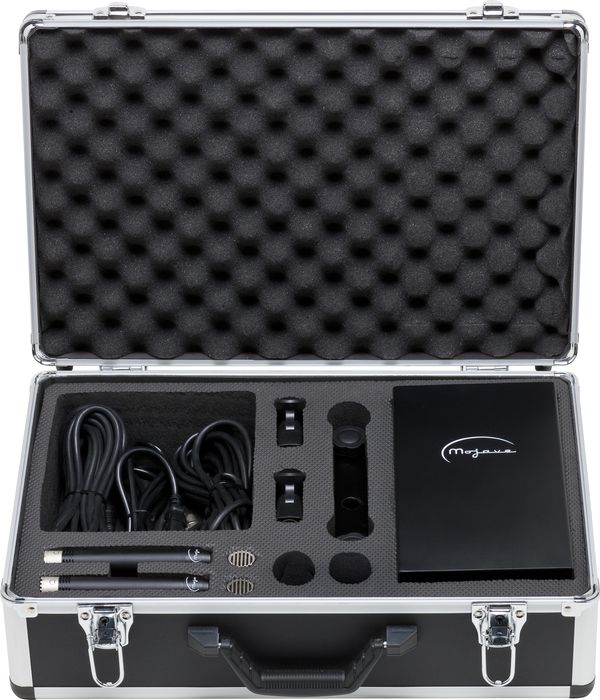

cardioid and omnidirectional capsules and dual power supplies. Packaged
in a single carrying case, the MA-100SP provides professional recording
engineers with a convenient, easy to set up system for stereo recording
applications.


The small diaphragm MA-100 condenser microphone
with interchangeable cardioid and omnidirectional capsules. Featuring
hand selected 3-micron capsules, high-quality Jensen audio transformers
and military-grade JAN 5840 vacuum tubes, the MA-100 performs at a level
reminiscent of some of the best-loved classic small-diaphragm tube
condenser microphones. The MA-100 power supply can be set for either
115v or 230v via an external switch.


The latest in a lineage of
successful microphone designs by David Royer, one of an elite group of
microphone designers who know that music and sound are inseparable from
electronic design, the Mojave MA-100 microphone's cathode follower
design allows use on high SPL instruments such as drums and guitar
amplifiers, as well as the more common applications of a small
diaphragm, vacuum tube condenser microphone, such as acoustic
instruments, cymbals, stereo pairs and pianos. Each MA-100 microphone,
power supply and cable set is burned in for 24 hours, carefully tested
and evaluated, then packaged in its protective case.


Small Diaphragm—Big Sound!
Why
choose a small diaphragm microphone? Because small diaphragm
microphones offer some distinct advantages over their larger brethren:
•More consistent polar pattern
•Better transient response
•Ease of placement

Why choose an MA-100 Mic from Mojave Audio?
•Extended low-frequency response
•High SPL handling capability—try putting your large-diaphragm mic on a snare drum!

Recommended applications:

Acoustic Instruments
Drums
Guitar Amplifiers
Piano
Stereo Pairs (X/Y, MS, etc.)
Decca Tree
Orchestral Recording
Choral Recording
Voice-overs and Broadcast
Percussion




Features:



Matched pair of small-diaphragm condenser microphones
Interchangeable cardioid and omnidirectional capsules
Hand-selected 3-micron capsule
Jensen audio transformer
Military grade JAN 5840 vacuum tubes
External switchable power supply voltage
Ultra clean signal path
High SPL handling capability





A must-hear stereo pair for X/Y, MS, or coincident miking — the biggest sound you'll hear from a small diaphragm.



MA-100SP Stereo Microphone Pair Specifications:



Transducer Type: Externally excited capacitor type
Diaphragm: .8" / 20.5 mm diameter
Diaphragm Thickness: 3 microns

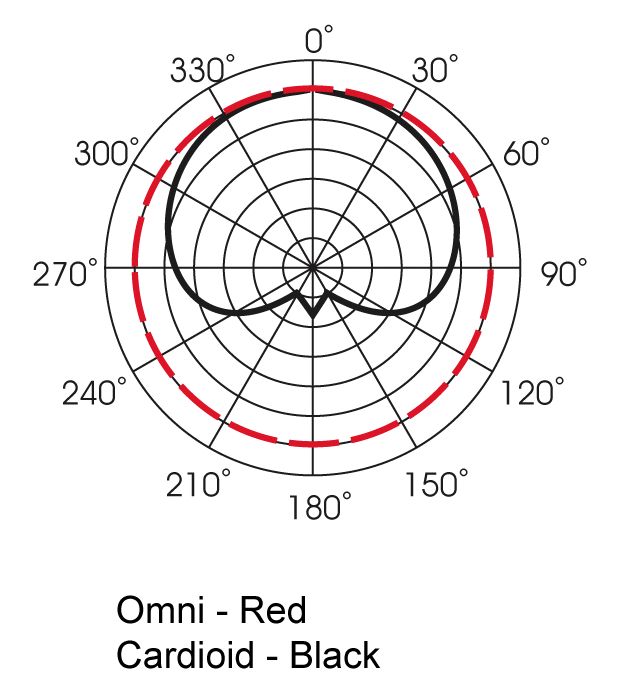

Polar Response: Interchangeable Cardioid and Omnidirectional Capsules
Frequency Response: 20 Hz - 20 kHz, ±3dB
Sensitivity: -37dB re 1V/pa
Maximum SPL: 120dB
Distortion: head amp only , not to exceed .4% @ 140 dB SPL
Self Noise: Not to exceed 16dB
Impedance: 450 ohms, transformer balanced
Vacuum Tube: 5840 pentode wired as triode, operated as a unity-gain buffer stage (cathode follower)
Power Requirements: 100-120VAC; 220-240VAC, 50 or 60 Hz. Power consumption approx. 10 watts.
Dimensions And Weight: Carrying case with microphone, power supply, shock mount and cables: 9.5 lbs.
Carrying Case: 14"x11"x4"
Microphone: 5.5"x.75", weight 4.5 oz each
