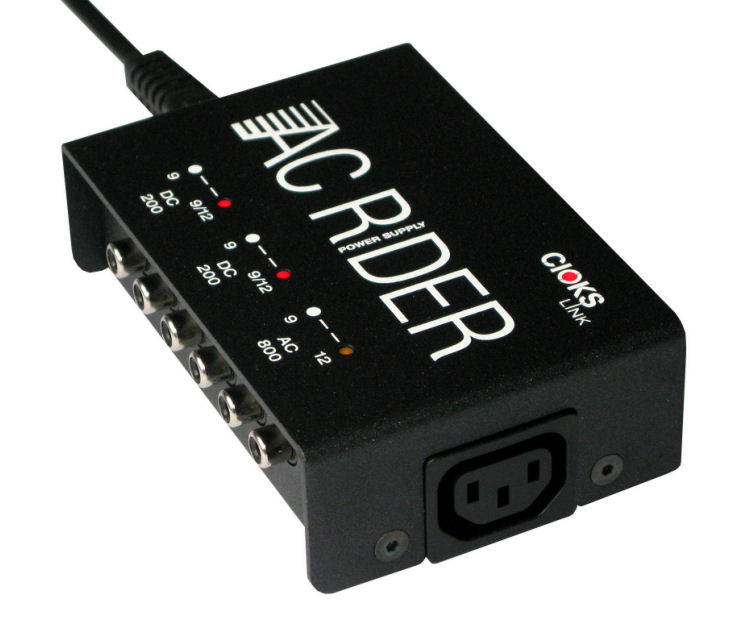

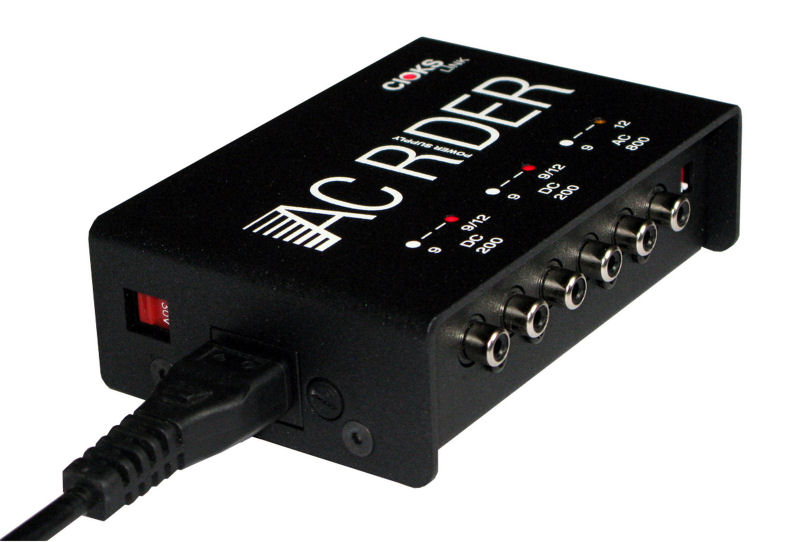

CIOKS AC Rider Link Power Supply

The new CIOKS AC Rider link power supply is an excellent solution for
powering small pedal boards with one pedal needing AC power source plus a
mix of low current DC pedals and maybe a single medium current one.
The first four outlets are divided in two isolated sections offering
voltages 9 and 12V DC and a max. current of 200mA per section. For the
AC pedal you have voltages 9 or 12V AC available on the last two outlets
at a max. current of 800mA, which is enough to power almost any AC
pedal on the market incl. the Line6 M9.


The AC section of the AC Rider link power supply is able to power any
EHX vacuum tube pedal, any Kingsley pedal, any type of DigiTech Whammy,
JamMan, Talker or other needing AC, any Boomerang product, Line6 M9, any
4-button Line6 modeler like the DL4, Rocktron Banshee Talk-Box, Ibanez
Tube-King Distortion, any Hughes & Kettner tube pedal, FoxRox
Captain Coconut, EBS Valve Drive, any Musicom LAB Controller, Mesa
Boogie V-1 or V-Twin, Providence Controller, VanAmps Reverbamate, Yamaha
Magic Stomp just to mention a few of the popular pedals needing an AC
voltage. You should only use one of the AC outlets matching the needed
voltage for your pedal and leave the other not used.





The two isolated DC sections comprising of outlets 1-4 and providing
200mA each are able to power quite a few low current 9V pedals. If you
have more than four you can use the Split Flex or 3-way daisy chain.
Each section can also power a medium current pedal like BOSS DD-20 or
CE-20, the digital ones from EHX like Freeze, Cathedral, Ravish or the
Ring Thing, tc electronic Flashback X4 Delay and all the Strymons excl.
TimeLine and Mobius just to mention a few. Using outlet 2 or 4 set to
12V you can also power an older Line6 modeler with 4 buttons like ex.
the DL4. You should use the green type 4 Flex cable and leave the
associated 9V outlet of the used section not used.





Having two isolated sections with 9 and 12V available you also have the
possibility to power an 18 or 24V pedal using a Stack Flex or Series
adapter Flexfollowed by a standard Flex cable. One of the four outlets
must be left free. For low current 18 or 24V pedals you should consider
using CIOKS Booster Flex where the high voltage pedal can be powered
using only one outlet.





Courtesy AC mains outlet and link feature

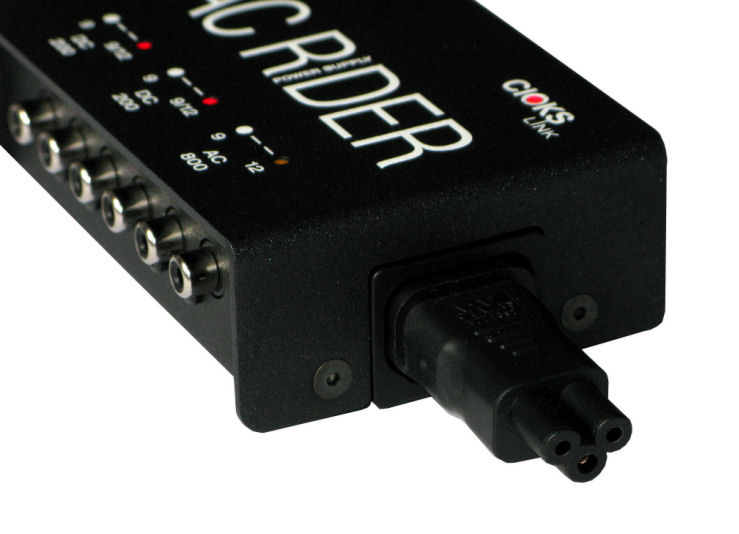

This power supply, like the other two from CIOKS link range, features a
courtesy AC mains outlet. The unique position of the courtesy outlet
and the AC mains input allows you to link two or more units together by
means of an adapter as shown on the pictures on the right. In this way
you can power two or three power supplies just with one single mains
power cord. You can combine different power supplies to obtain a custom
power bank matching your specific needs. The courtesy AC mains outlet
can of course be used for other purposes than linking products from
CIOKS link range. The last unit in the chain will always have the
courtesy outlet free to your disposition.





Pedal board mounting


Five threaded holes in the bottom of the power supply are positioned in
a way to allow easy attaching of the unit to a pedal board. Especially
with Pedaltrain boards both top and underneath mounting is possible
using just two or three screws. All the needed parts are included. The
only thing you have to do is to drill either two or three holes in the
pedal board. (The drill is also supplied in the package.)





Features:




6 outlets configured in 3 isolated sections

powerful AC section with 9 or 12V AC

short circuit protection of all outlets

advanced LED monitoring of each section

120 or 230V mains voltage operation

detachable mains power cord

courtesy AC mains outlet

CIOKS unique mains link feature

9 Flex cables included

very easy mounting to pedal boards

durable steel enclosure with 2mm thick top




Flex cables included with CIOKS AC Rider link:
3 x 1030
2 x 1050
1 x 2050
1 x 4050
1 x 5050
1 x 7050
Total of 9 Flex cables.


Specifications:
Outlet 1-2: 9 or 12V DC / 200mA
Outlet 3-4: 9 or 12V DC / 200mA
Outlet 5-6: 9 or 12V AC / 800mA
Size: 130x88x39mm (excl. detachable rubber feet)
Weight: 1,0kg


Warranty period: 5 years
