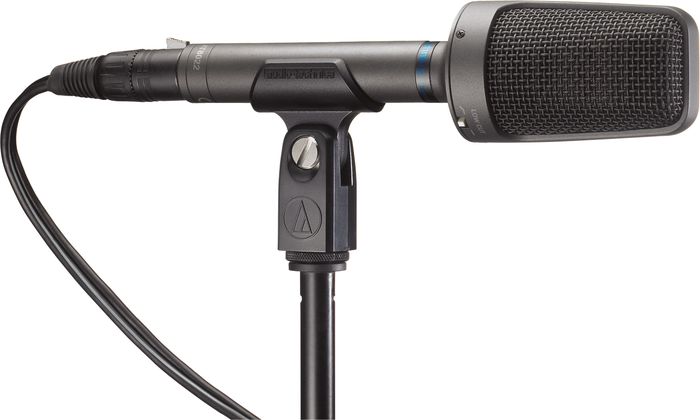

Audio-Technica AT8022 X/Y Stereo Microphone

Audio-Technica



A compact stereo microphone with pristine sound quality.


The Audio-Technica AT8022 is a stereo microphone
that is ideal for use mounted on a video camera. Now get true stereo
field recording at interviews and when recording at home.
Audio-Technica's versatile AT8022 stereo condenser offers a compact
housing and the pristine sound quality of a live sound field. Its
coincident capsule configuration produces an X/Y stereo image in a small
housing. The microphone is supplied with two cables for use with either
pro or consumer gear. It offers switchable low-frequency roll-off and
the convenience of battery or phantom power. The Audio-Technica AT8022
Stereo Microphone is fully RoHS-compliant—free from all substances
specified in the EU directive on the reduction of hazardous substances
(RoHS).


Features:



Innovative capsule configuration produces accurate stereo image in smaller housing
Compact, lightweight design is perfect for video camera-mount use as
well as for stereo field recording, interviews and home recording
Ideal for use with handheld digital recording devices
Operates on battery or phantom power—for use with pro or consumer equipment
Switchable low-frequency roll-off
Includes two cables: one balanced (two 3-pin XLRM-type connectors at output); one unbalanced (3.5 mm TRS at output)
RoHS-compliant — free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)




Get true stereo imaging today!


AT8022 X/Y Stereo Microphone Specifications:



Element: Fixed-charge Back Plate Permanently Polarized Condenser
Polar Pattern: X/Y Stereo
Frequency Response: 20-15,000 Hz
Low Frequency Roll-Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity:
Phantom: -34 dB (19.9 mV) re 1V at 1 Pa
Battery: -34 dB (19.9 mV) re 1V at 1 Pa
Impedance:
Phantom: 250 ohms
Battery: 300 ohms
Maximum Input Sound Level:
Phantom: 128 dB SPL, 1 kHz at 1% T.H.D.
Battery: 120 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range (Typical):
Phantom: 109 dB, 1 kHz at Max SPL
Battery: 101 dB, 1 kHz at Max SPL
Signal-To-Noise Ratio: 75 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 2 mA typical
Battery: 1.5V AA/UM3
Battery Current/Life: 0.7mA / 700 Hours Typical
Switch: Battery On/Off; Flat, Roll-off
Weight: 247 g (8.7 oz)
Dimensions: 186.0 mm (7.32") long, 47.6 mm (1.87") head diameter, 21.0 mm (0.83") maximum body diameter
Output Connector: Integral 5-pin XLRM-type
Cables:
Balanced:
2.0 m (6.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable
with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type
connectors at output end;
Unbalanced: 0.6 m (2.0') long stereo
cable with 5-pin XLRF-type connector at microphone end and 3.5 mm TRS
connector at output end
Accessories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; battery; soft protective pouch
Audio-Technica Case Style: S12
