Galaxy Audio AS-900 Wireless Personal Monitor System

Galaxy Audio


A single-channel, entry-level wireless personal monitor system.




The Galaxy Audio AS-900 wireless system is an entry-level, fixed-frequency UHF wireless personal monitor system with one receiver, one transmitter and a pair of earbuds. The AS-900R bodypack receiver has an 80mW output and RF and low-battery indicator. The AS-900T transmitter has L/R level display, stereo XLR/1/4" inputs, and a headphone output with volume control.

Consumer Alert:Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.


Features

AS-900 System:
UHF fixed frequency
150' range
Single rackmount included

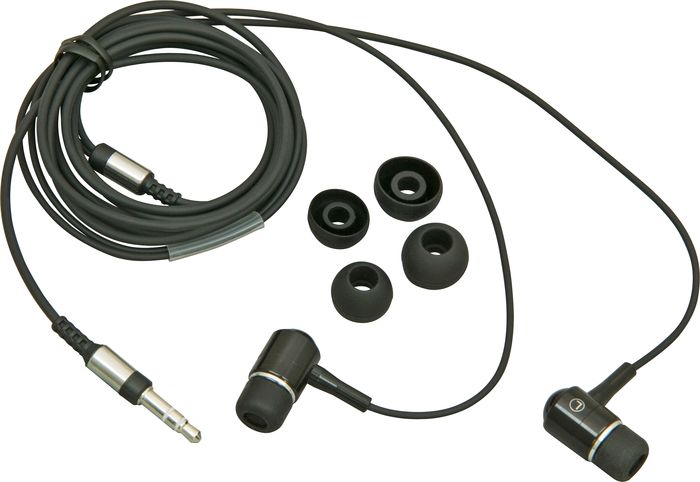

Earbuds included
AS-900T wireless transmitter
AF L/R indicator
Headphone out: volume control
Transmits in stereo or mono
Fixed frequency
XLR/1/4" combo input
RF output 10mW
AS-900R wireless bodypack receiver
80mW
2 "AA" batteries
RF indicator
Low-battery indicator
3.2oz (90g)




Get this personal monitor without busting your budget. Order today!

AS-900 Wireless Personal Monitor System Specifications:


AS-900 System
Frequency Range and Transmitter Output Level
Band: UHF
Frequency Range: 630.2 MHZ and 659.0 MHZ
Transmitter Output Level: 10dBm
Operating Range: Under Typical Conditions 150' (50m)
Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response: +/-3dB 80Hz~16KHz
Total Harmonic Distortion: +/-30KHz deviation 1KHz tone <1%
Dynamic Range: >90dB A-weighted
Operating Temperature: Range 14°F to 122°F (-10 C° to +50 C°)
Note: battery characteristics may limit this range

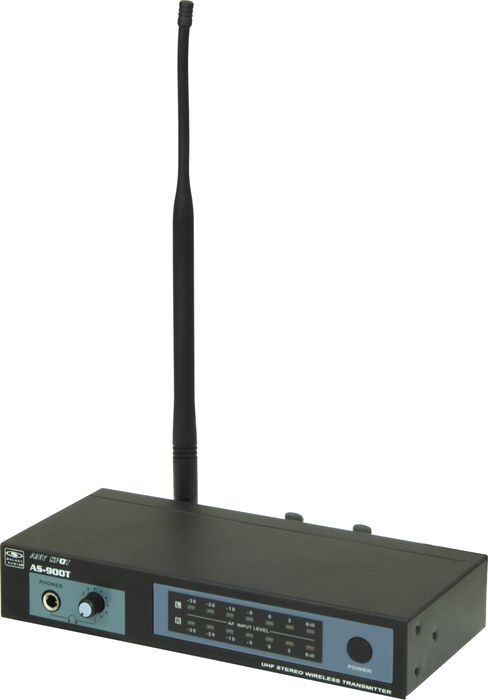

AS-900T transmitter
Max Audio input level: +6dBV
Gain adjustment range: 40dB
Input Impedance: 100KOhms
Dimensions (HxWxD): 1.5" x 8.3" x 3.8" (38mm x 212mm x 96mm)
Weight: 21oz. (605g)
Power requirements: 12-18 V dc at 300mA supplied by external power supply
XLR input: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

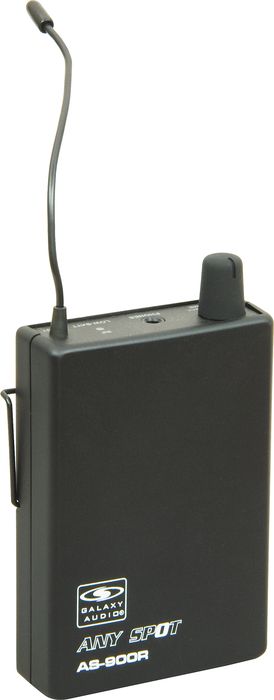

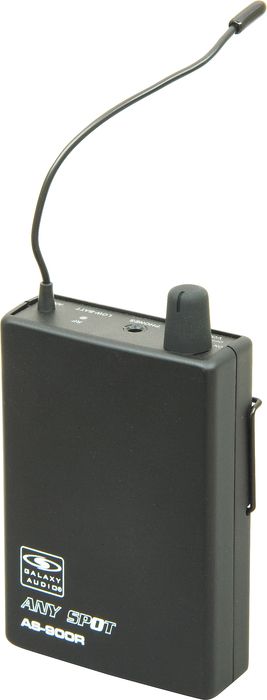

AS-900R Body-pack receiver
Audio output level: 80mW
Sensitivity: -94dBm for 30dB
Image rejection: >70dB
Dimensions (WxHxD) : 3.74" x 2.6" x 1" (95mm x 65mm x 25mm)
Weight: 3.2oz (90g) without batteries
Power Requirements: 2 "AA" size alkaline or rechargeable batteries Battery Life: About 5 hours
