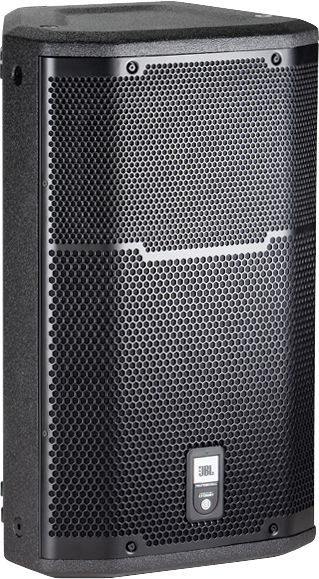

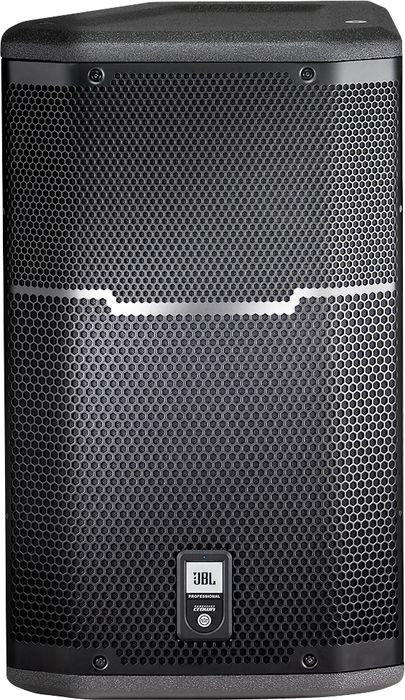

JBL PRX612M 12" 2-Way Active PA Speaker

Delivers maximum performance for its weight and size.

The JBL PRX612M 12" 2-Way Active Stage Monitor is the most compact and versatile speaker in the PRX600 Series. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front-of-house main PA. Two user selectable EQ settings are provided to optimize the system for either application.

With a dual socket pole mount, the PRX612M is a perfect match with a PRX618S subwoofer, offering a high performance self-powered sub/sat system.

The PRX615M is comprised of a 305 mm (12 in) 262F-1 Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D digital power amplifier.

A proprietary DSP chip is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

The amplifier input panel offers XLR or 1⁄4 in jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level, via the level control knob.

All PRX600 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints.

All PRX600 Series cabinets are protected by JBL's tour proven DuraFlexTM finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from lightweight, glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.


Features

Maximum SPL 134 dB peak
Dual purpose enclosure for both front-of
house and floor monitor applications
Eight M10 fly points for horizontal or vertical suspension. One M10 pull-back point.
Optimized EQ for monitor or front-of- house applications
305 mm (12 in) Differential Drive® dual voice-coil and magnetic gap, neodymium woofer
37.5 mm (1.5 in) annular polymer diaphragm, neodymium, compression driver
1000 Watt (Dual 500 watt) Class-D, Crown® amplifier.
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Professional XLR line and 1⁄4 in Mic/Instrument inputs, with loop-through.




Enjoy this awesome all-purpose self-powered speaker. Order today.

PRX612M 12" 2-Way Active PA Speaker Specifications:

System Type: Self powered 12", two-way, bass-reflex
Maximum SPL Output: 134 dB (Full Range) peak; 133 dB (Monitor) peak
Frequency Range (-10 dB):
Full Range 50 Hz-19.5 kHz
Monitor (vertical orientation) 60 Hz-19.5 kHz
Monitor (monitor orientation) 51 Hz-19.5 kHz
Frequency Response (±3 dB):
Full Range 60 Hz-17.5 kHz
Monitor (vertical orientation) 90 Hz-18 kHz
Monitor (monitor orientation) 61 Hz-18.5 kHz
EQ: Presets for use in Main and Monitor position
Dynamic Control (Input): dbx Type IV limiter circuit
Dimensions (H x W x D): 592mm x 353mm x 340mm (23.3" x 13.9" x 13.4")
Net weight: 15.6 kg (34.5 lb)
Gross weight: 19.2 kg (42.5 lb)






*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
