Heil Sound HDK-5 Drum Microphone Kit

An affordable solution for professional-quality drum miking.

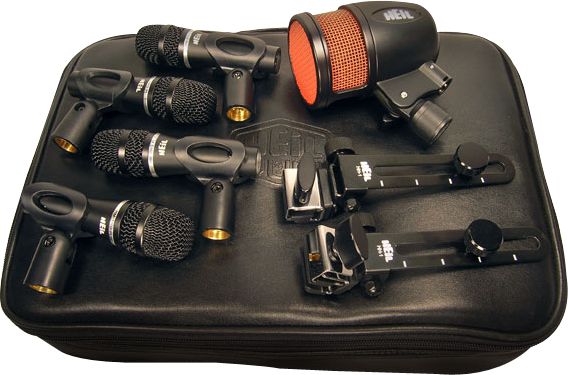

The Heil HDK-5 Drum Microphone Kit features 4
Handi Mic Pro Plus mics for miking up your drum set, a special PR 48 mic
just for the kick drum, as well as two HH-1 mounts for tom-mounting, 4
HM mic clips for attaching to a mic stand, and a convenient black
carrying case to protect them between use.


The Heil HDK drum mic
set series is a culmination of over 2 years spent on the road with
leading drummers. They gave Heil their ideas, dreams, and needs which
Heil then turned into reality. Every component of a drum kit needs
special attention when it comes to reproducing the sound accurately.
There are many drum microphones out there, but the artists that helped
design the Heil drum microphones wanted more accuracy, not just level.
Each one of them were tired of little plastic toys that did not
reproduce well. They all agreed, after hearing and using the
technologies of the Heil drum microphones, that they had never heard
this level of quality reproduction.


Heil 3 Handi Mic Pro Plus Microphone
The
Heil Handi Mic Pro Plus is a dynamic microphone that incorporates
innovative mic technology designed for a wide range of professional
applications. This versatile Heil microphone excels at live sound,
commercial broadcast, and sophisticated recording venues. The Handi
Mic's wide frequency range outperforms tired, 30+ year old industry
technology and can withstand huge amounts of SPL. The end result is a
microphone that can answer the call to any application. The Handi Mic
Pro Plus is ideal for use with tom drums where smaller microphones are
needed, as well as inside Leslie speakers. The Handi Mic is perfect as
an interview microphone because of its small size, low profile, and
great sound.


Since 1982, Heil Sound has been the leading
manufacturer of communications microphones and has a paramount
understanding of phasing. When properly applied, this knowledge creates
outstanding cardioid patterns with unbelievable rear rejection that
removes unwanted sounds that try to enter from the off axis rear. The
pattern control of the Heil Handi Mic Pro Plus is outstanding. This
exceptional performance is achieved by using the ideal combination of
materials for the large low mass diaphragm and a special mixture of
neodymium, iron, and boron that gives the Handi Mic Pro Plus Microphone
the strongest magnet structure available.


Heil technicians paid
special attention to the microphone's phasing plug assembly. The Handi
Mic's equally placed ports accept sound from behind out of phase. Thus,
the Handi Mic Pro Plus produces a very linear cardioid pattern and
reduces proximity effect while achieving perfect articulation. The Heil
element in this microphone is usable at extreme high sound pressure
levels and is immune to overload conditions. That makes the Heil Handi
Mic Pro Plus a dynamic microphone that is perfect for vocal and live
sound applications.


Heil PR 48 mic
The Heil
PR 48 kick drum microphone starts with Heil's 1.5" large diaphragm
dynamic element sealed in a vulcanized shock mount and fed with a
specially designed low-pass filter that creates a 10dB rise from 60Hz to
100Hz — right where the kick drum resonates. It stays out to 7.5 kHz
and drops off drastically to eliminate any unwanted internal sounds. The
total frequency response is 30Hz - 8.5kHz (4dB rise @ 4500Hz). Its rear
rejection is -40dB @ 180° off-axis. It can handle +148dB SPL.


The
PR 48 metal housing was designed with a slanted entrance to the 3-pin
XLR so the cable assembly is easier to connect. The microphone provides a
600 ohm balanced output.


HH-1 mounting kits
The
HH-1 is a unique mounting kit that is fully adjustable so you can mount
a Heil PR 28 on the rim of the mounting hoops of the tom drum.



Features

Includes:
4 Handi Mic Pro Plus
2 HH-1 (Patent Pending) mounts
1 PR 48 mic
4 HM mic clips
Black Carrying Case

Handi Mic Pro Plus

Fits easily anywhere
Heavy steel construction
Perfect low profile interview mic
3-pin balanced 600 ohm, high output
Assembled and tested in Illinois
High SPL-handling dynamic
Condenser-like transient performance
Standard 5/8" -27 mic clip
Unique wall mount
Foam windscreen

Heil PR 48 mic

1.5 diaphragm dynamic element
Utilizes a low-pass filter with a 3dB hinge point at 30Hz and 8.5kHz
metal housing
Standard 5/8-27 thread




Give your drums that Heil sonic touch with this 5 mic kit. Order today!


HDK-5 Drum Microphone Kit Specifications:


Handi Mic Pro Plus
Frequency response: 80Hz - 15kHz
Polar pattern: cardioid
Impedance: 600 Ohm balanced
Output level: -55dB
End fire generating element: .75" diameter dynamic
Polarity: pin 2+
Magnet structure: neodymium
Case structure: zinc alloy
Length: 4.50"
Diameter: 1.31"
Stem diameter: 3/4"
Weight: 7oz.

PR 48
Rejection: -40dB @ 180 degrees off-axis / +148dB SPL
Frequency Response: 30Hz-8.5kHz (4dB rise @ 4500Hz)
Generating Element: 1.5" large diaphragm, dynamic, cardioid (1.1 mV/Pa; 30 - 8,000Hz)
Impedance: 600 Ohms
SPl/Noise: 148dB
Weight: 570g (20.11oz.)








*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price.
