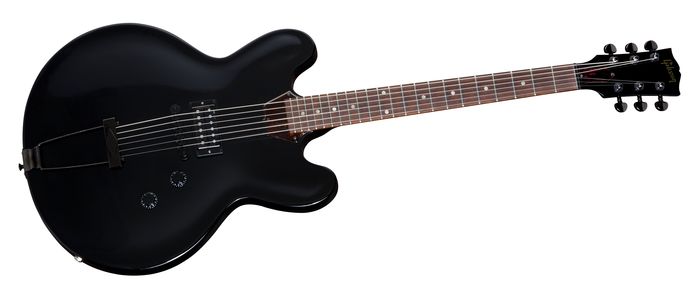

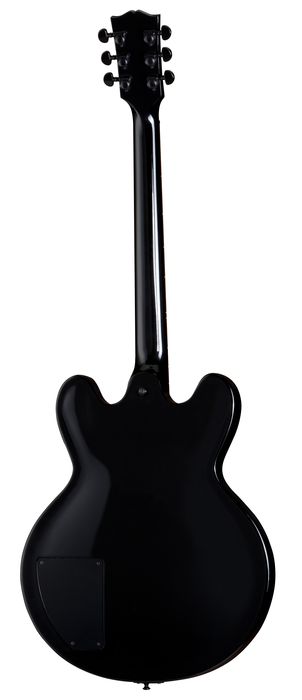

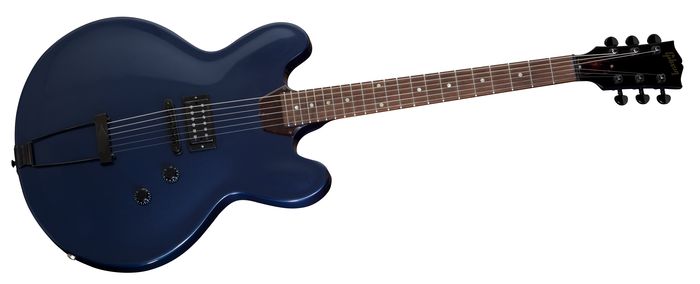

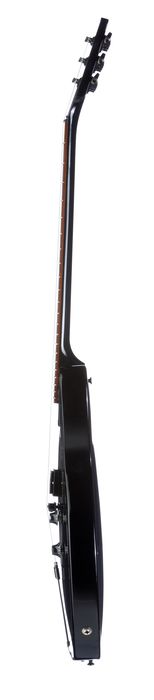

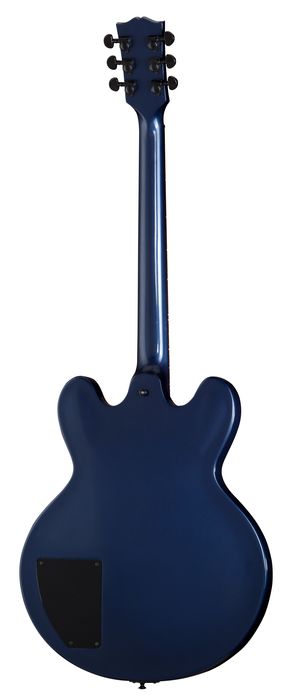

Gibson ES-335 Studio Electric Guitar With Trapeze

Gibson






Classic tones from a powerful new combination of features.




Ever since its introduction in 1958, Gibson’s
legendary ES-335 has been haled as one of the most versatile electric
guitars ever produced, adept at everything from jazz, to country, to
blues, to heavy rock. The new ES-335 Studio with trapeze, though, lives
for one purpose: to rock your world like no other semi-hollow electric
guitar ever.


While it retains the classic design elements and
full build quality of the finest ES-335s, the ES-335 Studio from
Gibson’s Memphis division strips away anything superfluous to focus like
a laser on cranking out bone-crunching rock tone. This guitar has the
same instantly familiar thinline, double-cutaway body styling from
Gibson guitars seen in the hands of Eric Clapton, B.B. King, Alvin Lee
and countless others, but the f-holes are eliminated to create a
sleek-looking top that is also more resistant to feedback.


The
electronics have been pared down to a single, super-hot Dirty Fingers
Plus humbucking pickup in the bridge position, along with a single
volume and tone pot. Equally hot-rodded looks are assured by your choice
of Ebony Black or Midnight Blue finish, both in genuine smooth-satin
nitrocellulose lacquer, paired with black hardware, tortoiseshell truss
rod cover and neck-joint cover, and a black Corian nut.


Body and Neck
The
ES-335 Studio is constructed in the image of the original 335s of the
late 1950s, with a semi-hollowbody made from laminated maple with a
bound Grade-AAA top layer and a solid maple center block, but without
the traditional f-holes. The result is the perfect marriage of the
traditional archtop’s looks and sonic depth, with the solidbody’s
sustain and resistance to feedback. The neck is made from solid
quarter-sawn mahogany, and topped with an unbound fingerboard made from
baked maple, inlaid with simple pearloid dot position markers.


Pickups and Electronics
The
ES-335 Studio is loaded with a single Dirty Fingers Plus humbucker, one
of Gibson’s hottest pickups. For unbridled crunch and wailing lead
tones, all with singing sustain, this pickup was born to rock out—yet it
boasts surprising clarity for mellower moments. A single volume and
tone control keep it simple.


Hardware and Plastics
The
ES-335 Studio carries Gibson’s legendary tune-o-matic bridge with and
trapeze tailpiece, as well as high-quality Grover Rotomatic tuners, all
in black chrome. There’s no pickguard, but a tortoiseshell truss rod
cover and neck-joint cover lend an alternative touch of class.


Case and coverage
Every
ES-335 Studio comes protected in a high-quality black, padded gig bag
with padded straps and the Gibson logo embroidered in white and includes
a Certificate of Authenticity.



Features



Semi-hollowbody made from laminated maple
Torrified Maple fingerboard with Pearloid dot inlays
Dirty Fingers Plus Humbucking Pickup in the bridge position
Black Chrome ABR-1 bridge and Trapeze Tailpiece
Black Chrome Grover Rotomatics with 14:1 tuning ratio




Cut to the chase with this special guitar. Order today.


ES-335 Studio Electric Guitar With Trapeze Specifications:




Body
Top: 3-ply - Maple/Poplar/Maple
Body Type: Double Chamber, Semi-Hollow
Back: 3-ply

Neck
Species: Mahogany
Truss Rod: Traditional
Joint Angle: 4° (+/- 15 seconds)

Neck Fit
Joint: Mortise & Tenon
Cover: Tortoise Shell Neck Joint Cover
Joint Angle: Tolerance +/- .005"

Fingerboard
Species: Baked Maple
Radius: 12"
Nut/E.O.B: 1.687/2.062
Inlays: Pearloid Dot
Binding: .040" Black
Other: Standard Fret Wire/Black Plastic Side Dots

Nut
Material: Black Corian
Width: 1.687
Slots: Gibson PLEK System

Headstock
Logo: Gold 'Gibson' Logo Decal
Truss Rod Cover: Tortoise Shell Truss Rod Cover
Angle: 17 Degrees

Tuners
Model: Grover Rotomatic
Plating: Black Chrome
Tuning Ratio: 14:01

Bridge
Type: Tune-O-Matic
Material: Zinc Die-Cast Alloy
Plating: Black Chrome

Tailpiece
Type: Stop Bar, Trapeze
Plating: Black Chrome

Hardware
Knobs: Black Top Hats
Pickup Mounting Rings: Black Plastic
Strings: .010 - .046, Genuine Gibson strings
Strap Buttons: Aluminum End Pins

Pickups
Bridge Position: Dirty Finger Plus (Alnico 2)

Electronics
Potentiometers: 1 Volume Control, 1 Tone Control
Type: 500k Audio Taper
Output Jack: 1/4" Switchcraft

Finish
Sealer: Nitrocellulose Lacquer, Ebony, Midnight Blue

Case
Type: Gig Bag







*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price.
