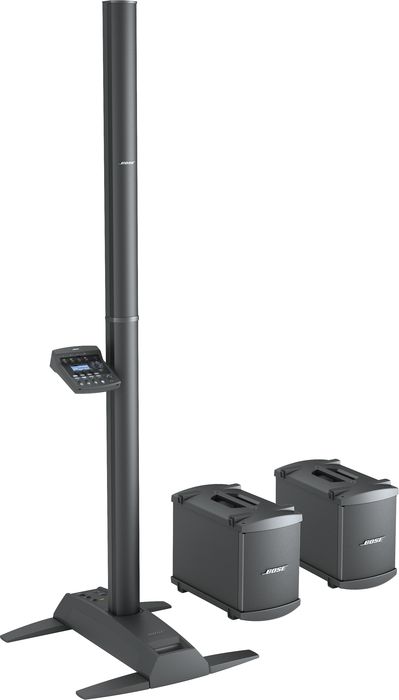

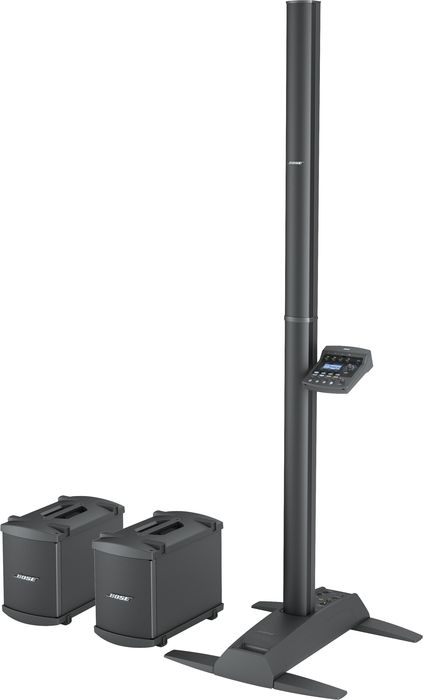

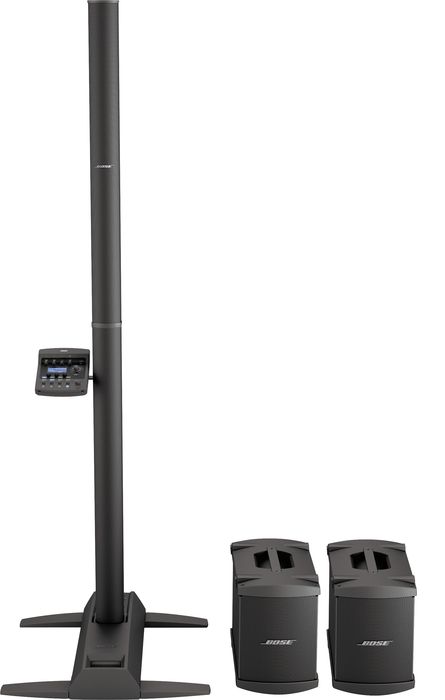

Bose L1 Model II Single System/Dual Bass System with ToneMatch Audio Engine

Superb lightweight and versatile professional sound reinforcement solution.




Bose L1 Model II systems are a high-quality, portable amplification system for musicians, singers, DJs and public speakers. This package also includes two of Bose's critically acclaimed B1 bass modules, along with the amazing T1 ToneMatch Audio Engine. This package is the top of the mountain and the end of the rainbow in terms of the L1 system. The Model II version, the two bass modules and the T1 front end make this the best-sounding and most capable system within the L1 line. These loudspeakers deliver wide horizontal sound coverage and a smooth tonal balance–across the stage and throughout the room. Lightweight and modular, this sleek system fits easily into a car trunk and takes just a few minutes to set up.

Like the original, award-winning Bose L1 system, the Model II sound system is an all-in-one innovation that replaces conventional monitors, mixers and PA speakers. And this professional sound system is packed with proprietary Bose technologies designed to improve your amplified sound.

The system's breakthrough loudspeaker produces wide, uniform sound coverage of nearly 180 degrees—onstage and throughout an audience of up to several hundred—with little dropoff in volume and tone.

The Model II system also features Articulated Array speaker technology for better tonal balance. The loudspeaker's 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. Even people off to the sides of these stage speakers enjoy well-balanced, detailed sound.


This Bose L1 Model II system comes with a B1 bass module to ensure more accurate amplification of lower notes for most voices and instruments—including guitars, keyboards and various horns.

B1 bass modules are considerably lighter and smaller than conventional bass bins required for the same performance. Power up to two bass modules on a single power stand (note, only one B1 module comes with this order).

The L1 Model II power stand weighs only 24 pounds, and its four retractable legs make it very easy to transport and set up. The power stand also has a simplified control section; the single line-level input can be used with instruments, mics, mixers, laptops, MP3 players or DVD systems.

All of the system's components are also built to handle the road. The loudspeaker has a rugged, reinforced grille, and each package includes padded carrying bags for major components.

Spatial Dispersion and Articulated Array speaker technologies in the loudspeaker produce wide, uniform sound coverage. The 24 small drivers are arranged using Articulated Array speaker technology in a slim, vertical enclosure—creating nearly 180 degrees of horizontal coverage and consistent tonal balance. The loudspeaker's two-piece, interlocking design makes for quick and easy setup, breakdown and transport.

Integrated power amplifiers in the power stand provide clean, precise amplification for L1 Model II system with up to two B1 bass modules.

ToneMatch port on power stand for digital audio and power connection to ToneMatch audio engine.

Analog input, trim control and signal/clip LED for line-level analog input via ¼" TRS phone cable. Can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems.

Bass module out for amplified bass output signal to one or two B1 bass modules. L1 system automatically adjusts equalization appropriately when bass modules are connected.

Bass line out delivers post-DSP bass signal output. Accepts ¼" TRS phone cable. Use to connect powered subwoofer, additional amplification system or Bose PackLite amplifier with up to two additional bass modules.

Retractable legs provide stability for streamlined L1 Model II power stand and loudspeaker. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport.

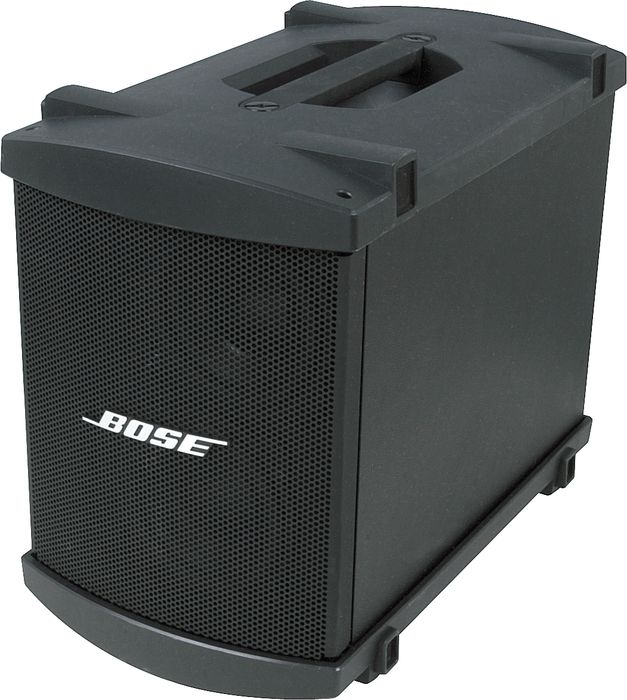

B1 Bass Module
The B1 bass module is a compact, lightweight enclosure that is easy to transport, set up and break down. Its small footprint takes up considerably less space than traditional bass cabs required for same performance. Interlocking feet let you securely stack up to four modules together on their sides.

Highly efficient speaker design features two 5.25" (13.3 cm), high-output, high-excursion drivers that produce deep, strong bass from a small enclosure. When connected to power stand, active equalization circuitry automatically adjusts bass signal appropriately.



Features

Recommended for DJs and lower-range instruments and voices
Spatial Dispersion and Articulated Array speaker technologies
Single-input power stand with retractable legs
Two B1 bass modules included
Integrated power amplifiers
ToneMatch port
Analog input, trim control and signal/clip LED
Bass module out
Compact, lightweight bass enclosure
Highly efficient bass speaker design




Order today and get the top of the Bose L1 line.

L1 Model II Single System/Dual Bass System with ToneMatch Audio Engine Specifications:


Dimensions and weight
L1 Model II Cylindrical Radiator loudspeaker top
43.5"H x 3.5"W x 4"D ( 110.5 cm x 9 cm x 10.5 cm )
16.3 lbs (7.4 kg)
L1 Model II Cylindrical Radiator loudspeaker bottom
43.5"H x 3.5"W x 4"D ( 110.5 cm x 9 cm x 10.5 cm )
17.4 lbs (7.9 kg)
L1 Model II power stand
5"H x 10"W x 27"D ( 12.8 cm x 26.2 cm x 69.2 cm )
23.7 lbs (10.7 kg)
B1 bass module
15"H x 10.25"W x 17.75"D ( 38 cm x 26 cm x 45 cm )
25.1 lbs (11.4 kg)




*Estimate
Shipping within 5 - 12 weeks, or please call (083) 497-2227 for the Air Freight
service price.
