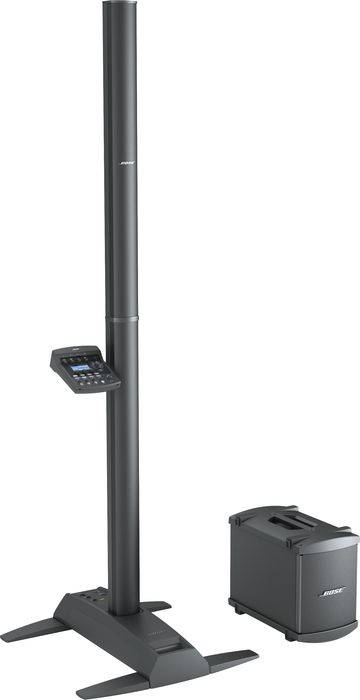

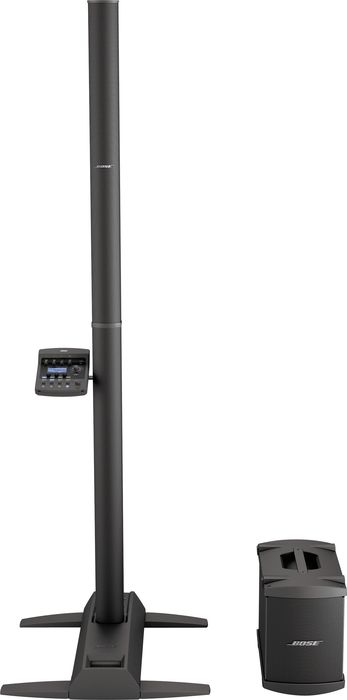

Bose L1 Model II System with ToneMatch Audio Engine

Uniquely designed speaker system for lower-range instruments and vocalists.




BOSE has always been known and appreciated for
taking audio to higher levels with unique, forward-thinking designs, and
the L1 Model II single bass package with ToneMatch audio engine follows
this successful formula. It is the premier BOSE L1 loudspeaker system
for musicians, with their smoothest, most consistent sound coverage and
most powerful tone-shaping tools. Lightweight and modular, this sleek L1
Model II system is extremely portable, easily fitting into a car trunk
and so simple to put together, you're ready in a few minutes.

One
of the most portable sound systems for musicians offered by BOSE,
combines the L1 Model II single bass package with ToneMatch audio engine
provides wide coverage, smooth tonal balance, and a suite of
studio-class effects and tone-shaping tools. It's packed with
proprietary BOSE technology designed to improve your amplified sound.

Like
the original, award-winning BOSE L1 loudspeaker system, this Model II
sound system is an all-in-one innovation that replaces conventional

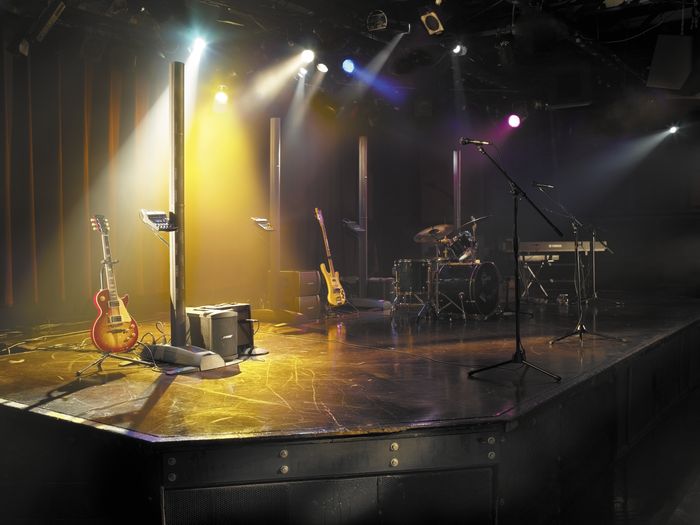

monitors, mixers and PA speakers. The system's breakthrough loudspeaker
produces uniform sound coverage of nearly 180 degrees—onstage and
throughout an audience of up to several hundred with little dropoff in
volume and tone.

The Model II system's enchanted tonal balance
comes from BOSE's Articulated Array speaker technology. The
loudspeaker's 24 vertically mounted drivers are precisely angled to
create clearer highs and more consistent tone in the room. Even people
off to the sides of these stage speakers enjoy well-balanced, detailed
sound.

Deep bass from small enclosures
BOSE L1 Model
II systems come with one B1 bass module to ensure more accurate
amplification of lower notes for most voices and instruments - including
guitars, keyboards and various horns. Like most of BOSE's equipment,
the B1 bass modules are considerably lighter and smaller than
conventional bass bins required for the same performance.

Light and easy, yet tough
The

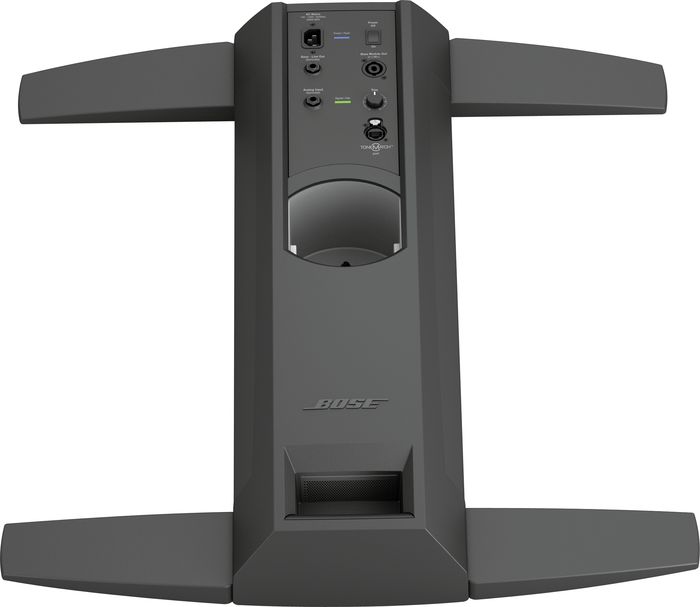

L1 Model II power stand weighs only 24 pounds, and its four retractable

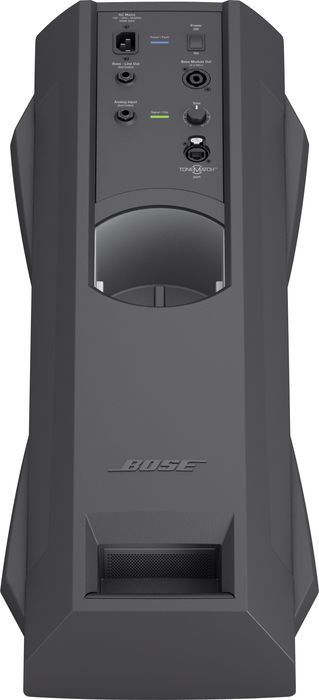

legs make it very easy to transport and set up. The power stand also
has a simplified control section; the single line-level input can be
used with instruments, mics, mixers, laptops, MP3 players or DVD
systems. Having said that, all of the system's components are also built

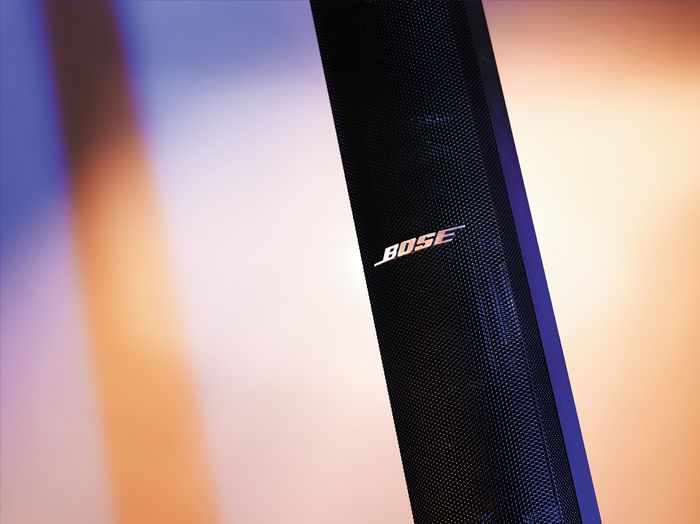

to handle the road. The loudspeaker has a rugged, reinforced grille,
and includes padded carrying bags for the major components.

T1 ToneMatch Audio Engine
Combining
the T1 ToneMatch audio engine with an L1 system gives you exceptional
amplified tone and sound processing capabilities. The compact,
four-channel engine provides fingertip control of BOSE's largest library
of ToneMatch presets. Just touch a button to make hundreds of precise
refinements to the sound of instruments and microphones.

The T1
ToneMatch audio engine is designed to enrich the sound of musicians
using any Bose L1 system. Its powerful features and tone-shaping tools
quickly bring you closer to the true sound of your voice and
instruments. This versatile digital mixer helps you sound your best in
live performances. It expands the input capacity of your L1 system and
gives you instant access to a host of proprietary EQ presets, standard
effects and processors.

Hundreds of sonic refinements—instantly
The
ToneMatch audio engine puts BOSE's largest library of customized
presets at your command. These ToneMatch presets instantly optimize
instruments and microphones for any L1 system, all at the touch of a
button.

Different presets can be independently assigned to the
engine's four channels. For example, select Audix OM5 mic presets for
channels 1 and 2, Taylor guitar for channel 3 and Lakland bass for
channel 4 - all at the same time.

BOSE's engineers often work
with manufacturers directly to expand the ToneMatch preset library.
Updates are available to you free, with easy downloading via the
engine's USB port.

Intelligent equalization: zEQ
Fine-tune
your sound system with greater accuracy. Bose intelligent zEQ redefines
low, mid and high ranges for each ToneMatch preset. When you need to
cut or boost specific frequency ranges for different instruments and
mics, zEQ gives you the power.

Suite of effects and dynamics processing
Globally
assign one of five different reverbs to each mic/line channel. You can
also choose from three delay types, ten additional effects, and seven
dynamics processors—and assign them independently to each channel.

Custom scenes
Store
your customized settings for specific gigs with the Scenes feature. The
engine comes with five predefined BOSE scenes and ten you can define.
Fast, one-touch scene recall helps you make quick work of repeat setups.

Easy connections
Simply
link the engine to your BOSE L1 Model II system via the included
digital cable and rev it up. A sleek bracket is also included to attach
the engine to the loudspeaker.



Features

Spatial Dispersion and Articulated Array speaker technologies in the loudspeaker produce wide, uniform sound coverage

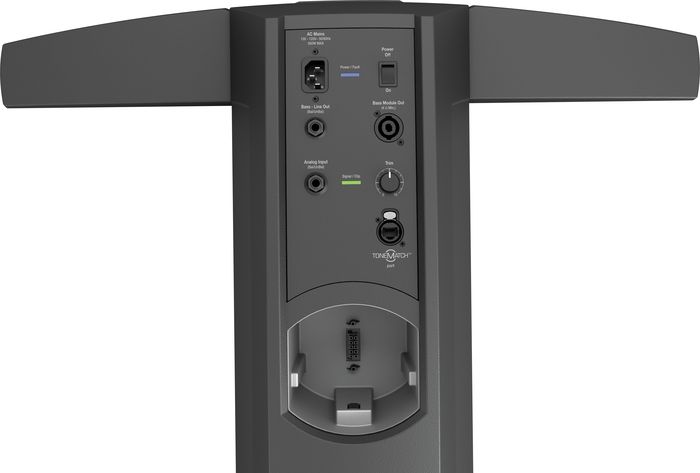

Integrated power amplifiers in the power stand
ToneMatch port on power stand for digital audio and power connection to ToneMatch audio engine

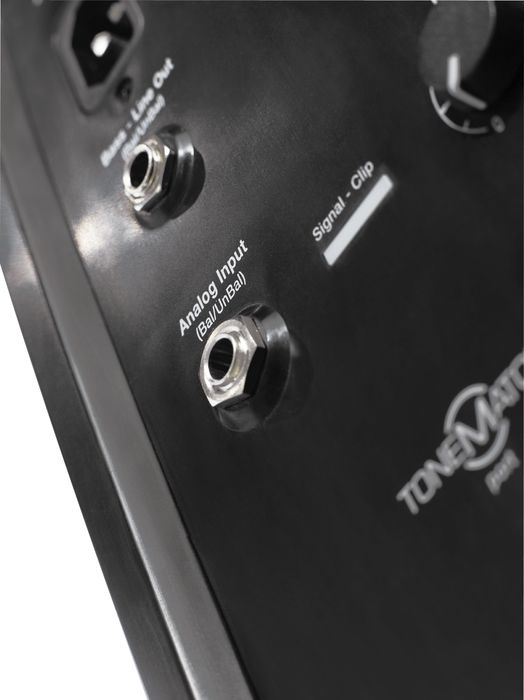

Analog input, trim control and signal/clip LED for line-level analog input via 1/4" TRS phone cable
Bass module out for amplified bass output signal to one or two B1 bass modules
Automatically adjusts EQ appropriately when bass modules are connected
Bass line out delivers post-DSP bass signal output (accepts 1/4" TRS phone cable)
4 Retractable legs provide stability for streamlined L1 Model II power stand and loudspeaker

Bass module

Compact, lightweight enclosure is easy to transport, set up and
break down. Interlocking feet let you securely stack up to four modules
together on their sides
Highly efficient speaker design features two 5.25" (13.3 cm), high-output, high-excursion drivers

ToneMatch audio engine

Integrated ToneMatch audio engine and audio technologies provide
four independent channels featuring Bose's largest library of ToneMatch
instrument and microphone presets, proprietary zEQ, and a complete suite
of studio-class effects and sound processors
Proprietary ToneMatch presets optimize L1 system to match intended natural sound of specific instruments and vocal mics
Over 100 presets are organized into quick-access banks and can be independently assigned to each channel
Free ongoing updates via USB connection between your computer and ToneMatch audio engine
Proprietary zEQ automatically adjusts the range of tone controls to match your voice or instrument
Single-band ParaEQ centers on frequency you specify for each independent channel
Five reverb types (small, medium, large, plate and cavern) available
for global assignment, with individual channel controls for decay time,
mix level and brightness
Three delay types (analog, digital and tape) can be independently
assigned to selected channels with control over feedback time and mix
level for each channel
Ten modulation effects (three chorus types, two flange types, four
phaser types and one vintage tremolo effect) can be independently
assigned to selected channels with control over designated parameters
for each channel
Seven dynamics processing types (three compressors, limiter,
de-esser, kick gate and noise gate) can be assigned to independent
channels
Scenes allow you to store, recall and edit "snapshots" of all key ToneMatch audio engine settings at any given time
The engine includes five predefined Bose scenes, five My scenes and five Shared scenes you can give to other L1 owners
Chromatic tuner
Large backlit display with intuitive layout and easy-to-read text for modes and settings
Rotary encoder for quick access to modes, effects and parameters
Aux mode (channels 1 – 3) send channels' dry, pre-fader or
post-fader audio to aux output for connection to additional L1 systems
or recording devices Independent level controls for optimal signal
output
Channel volume, mute and FX mute (1 – 4/5) for adjusting individual
channel volume, muting individual channels and muting all effects on
selected channels
Master volume adjusts overall level of master output
Phantom power applies +48V power to input channels 1 – 3 to drive specific microphones
ToneMatch cable transfers audio signals and provides power to ToneMatch audio engine from L1 Model II power stand
Mounting bar and carriage for securely attaching ToneMatch audio engine to L1 Model I or Model II loudspeaker




A stylish and effective way to get more bass in their face. Order today!








L1 Model II System with ToneMatch Audio Engine Specifications:


L1 Model II System:
Mic/line inputs (1 - 3) feature combination analog connectors accepting balanced XLR or unbalanced 1/4" TRS audio cables.
Line inputs (4/5, L/R)
for analog stereo connections to keyboards, mixers and computers
(Inputs accept balanced 1/4" TRS cable, edit control affects both
channels)
Trim controls and signal/clip LEDs (1 - 4/5) for adjusting levels of input signals (Green/yellow/red LEDs show signal status and help you set gain levels properly)
Preamp outputs (1 - 3) for connecting channels' dry output signals to recording gear or other amplifiers via balanced 1/4" TRS cable
Aux output can be used with aux mode to create independent submix of channels 1 - 4/5 to route to other amplifiers or recording gear
Master analog output
for connecting to additional L1 systems, amplifiers or recording gear
via balanced 1/4" TRS cable (Select from pre- or post-master volume
settings)
ToneMatch port to connect digital output of engine to L1 Model II power stand via included ToneMatch digital cable
USB port for updating ToneMatch audio engine and backing up scenes via USB connection to your computer
L1 Model II Cylindrical Radiator Loudspeaker Top
43.5"H x 3.5"W x 4"D (110.5cm x 9cm x 10.5cm)
16.3lb. (7.4 kg)
L1 Model II Cylindrical Radiator loudspeaker bottom
43.5"H x 3.5"W x 4"D ( 110.5cm x 9cm x 10.5cm )
17.4lb. (7.9kg)
L1 Model II power stand
5"H x 10"W x 27"D ( 12.8cm x 26.2cm x 69.2cm )
23.7lb. (10.7kg)
B1 bass module
15"H x 10.25"W x 17.75"D ( 38cm x 26cm x 45cm )
25.1lb. (11.4kg)
ToneMatch Audio Engine
Electrical
A/D and D/A conversion: 24 bits
Sampling rate: 48kHz
USB: 1.1 protocol, Type A to Type B cable
PC requirements: Microsoft Windows 2000, 2000 Pro, XP
Dimensions: 8.22" (L) x 6.52" (W) x 2.66" (H), 208.9mm (L) x 165.5mm (W) x 67.6mm (H)
Weight: 2.14lb. (0.97kg)


*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price
