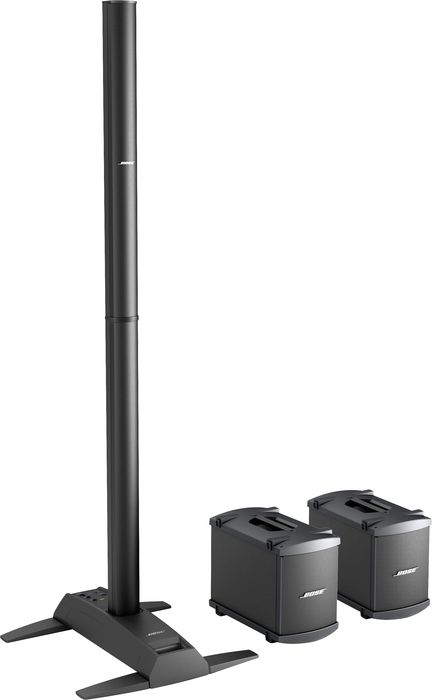

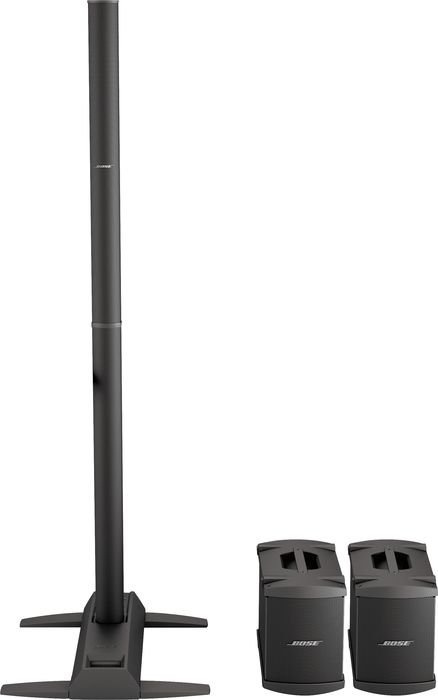

Bose L1 Model II Single System/Dual Bass Package

Lightweight, powerful PA system with great coverage and quality sound.




Bose L1 Model II systems are a high-quality,
portable amplification system for musicians, singers, DJs and public
speakers. This package includes two of Bose's critically acclaimed B1
bass modules. These loudspeakers deliver wide horizontal sound coverage
and a smooth tonal balance–across the stage and throughout the room.
Lightweight and modular, this sleek system fits easily into a car trunk
and takes just a few minutes to set up.

Like the original,
award-winning Bose L1 system, the Model II sound system is an all-in-one
innovation that replaces conventional monitors, mixers and PA speakers.
And this professional sound system is packed with proprietary Bose
technologies designed to improve your amplified sound.

The
system's breakthrough loudspeaker produces wide, uniform sound coverage
of nearly 180 degrees—onstage and throughout an audience of up to
several hundred—with little dropoff in volume and tone.

The Model
II system also features Articulated Array speaker technology for better
tonal balance. The loudspeaker's 24 vertically mounted drivers are
precisely angled to create clearer highs and more consistent tone in the
room. Even people off to the sides of these stage speakers enjoy
well-balanced, detailed sound.


This Bose L1 Model II system
comes with two B1 bass modules to ensure more accurate amplification of
lower notes for most voices and instruments—including guitars, keyboards
and various horns. The double bass package is recommended for use as a
bass guitar amplifier, and for kick drums and DJs.

B1 bass
modules are considerably lighter and smaller than conventional bass bins
required for the same performance. Power up to two bass modules on a
single power stand.

The L1 Model II power stand weighs only 24
pounds, and its four retractable legs make it very easy to transport and
set up. The power stand also has a simplified control section; the
single line-level input can be used with instruments, mics, mixers,
laptops, MP3 players or DVD systems.

All of the system's
components are also built to handle the road. The loudspeaker has a
rugged, reinforced grille, and each package includes padded carrying
bags for major components.

Spatial Dispersion and Articulated
Array speaker technologies in the loudspeaker produce wide, uniform
sound coverage. The 24 small drivers are arranged using Articulated
Array speaker technology in a slim, vertical enclosure—creating nearly
180 degrees of horizontal coverage and consistent tonal balance. The
loudspeaker's two-piece, interlocking design makes for quick and easy
setup, breakdown and transport.

Integrated power amplifiers in
the power stand provide clean, precise amplification for L1 Model II
system with up to two B1 bass modules.

ToneMatch port on power stand for digital audio and power connection to ToneMatch audio engine.

Analog
input, trim control and signal/clip LED for line-level analog input via
¼" TRS phone cable. Can be used for instruments or other audio sources
like DJ mixers, MP3 players, computers or DVD systems.

Bass
module out for amplified bass output signal to one or two B1 bass
modules. L1 system automatically adjusts equalization appropriately when
bass modules are connected.

Bass line out delivers post-DSP bass
signal output. Accepts ¼" TRS phone cable. Use to connect powered
subwoofer, additional amplification system or Bose PackLite amplifier
with up to two additional bass modules.

Retractable legs provide
stability for streamlined L1 Model II power stand and loudspeaker. Four
retractable legs fold out of power stand simultaneously for quick setup
and compact transport.


The B1 bass module is a compact,
lightweight enclosure that is easy to transport, set up and break down.
Its small footprint takes up considerably less space than traditional
bass cabs required for same performance. Interlocking feet let you
securely stack up to four modules together on their sides.

Highly
efficient speaker design features two 5.25" (13.3 cm), high-output,
high-excursion drivers that produce deep, strong bass from a small
enclosure. When connected to power stand, active equalization circuitry
automatically adjusts bass signal appropriately.



Features

Recommended for DJs and lower-range instruments and voices
Spatial Dispersion and Articulated Array speaker technologies
Single-input power stand with retractable legs
Two B1 bass modules included
Integrated power amplifiers
ToneMatch port
Analog input, trim control and signal/clip LED
Bass module out
Compact, lightweight bass enclosure




Order today for a truly innovative sound reinforcement solution.








L1 Model II Single System/Dual Bass Package Specifications:


Dimensions and weight
L1 Model II Cylindrical Radiator loudspeaker top
43.5"H x 3.5"W x 4"D ( 110.5 cm x 9 cm x 10.5 cm )
16.3 lbs (7.4 kg)
L1 Model II Cylindrical Radiator loudspeaker bottom
43.5"H x 3.5"W x 4"D ( 110.5 cm x 9 cm x 10.5 cm )
17.4 lbs (7.9 kg)
L1 Model II power stand
5"H x 10"W x 27"D ( 12.8 cm x 26.2 cm x 69.2 cm )
23.7 lbs (10.7 kg)
B1 bass module
15"H x 10.25"W x 17.75"D ( 38 cm x 26 cm x 45 cm )
25.1 lbs (11.4 kg)
Included items
L1 Model II double bass package
L1 Model II power stand and cord
Power stand carrying bag
L1 Model II Cylindridal Radiator loudspeaker (top and bottom)
Loudspeaker carrying bags
2 B1 bass modules and cable
2 Bass module slip covers

*Estimate Shipping time between 5 - 12 weeks, or please call (083) 497-2227 for a special faster service price.
