Mackie Onyx 1640i Firewire Mixer

16-channel premium analog mixer with FireWire, Onyx mic preamps, 4-band Perkins EQ, and more.

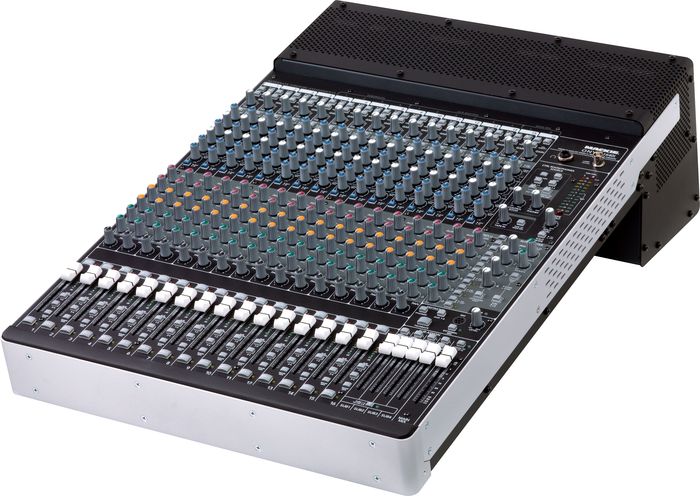

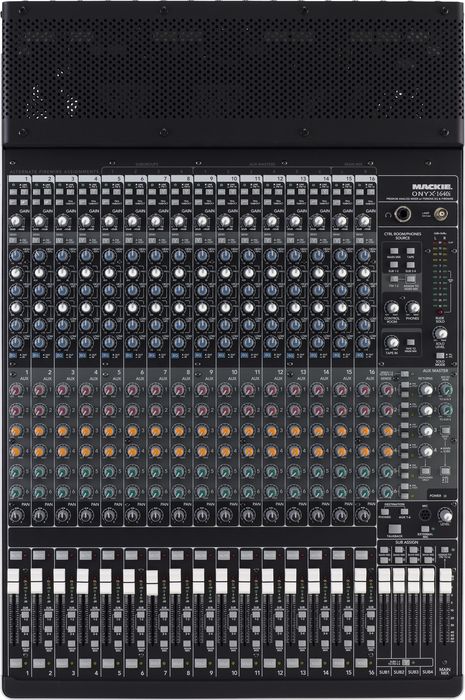

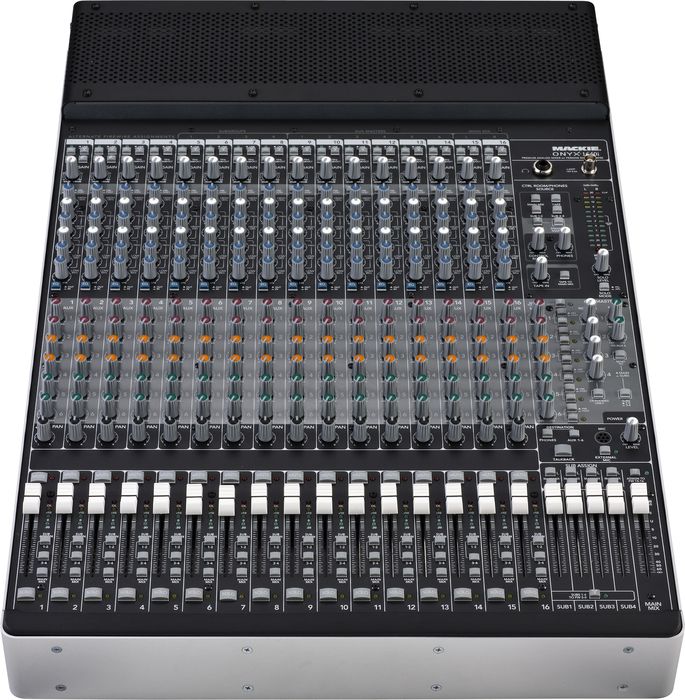

The Mackie Onyx 1640i professional compact mixer
is one of Mackie's Onyx-i series consoles. It offers built-in FireWire,
along with a mix of modern features and technologies for live sound
reinforcement and analog or digital studio recording — all in a durable,
roadworthy package. While the Onyx 1620i is compatible out of the box
with most major DAWs, from April 1, 2010, to May 31, 2010, you can get a
free Mackie Universal Driver Upgrade downloadable driver on Mackie's
website that makes it qualified for use with Pro Tools M-Powered 8.

The
Onyx 1640i is equipped with 16 of Mackie's premium,
precision-engineered studio-grade Onyx mic preamps. Mackie is renowned
for the topnotch mic preamps used in their mixers, and today, they're
better than ever, with specifications rivaling expensive standalone mic
preamplifiers.

Channels 1 and 2 feature high-impedance
instrument/line-level inputs so you can connect an acoustic, electric,
or bass guitar directly into the mixer, eliminating the need for an
external direct box.

Extremely adaptable DAW integration Recording and Mixing

The
Mackie mixer's channels, aux sends, or the master L/R can be sent
straight to your computer via FireWire for recording. Pre/post EQ taps
on every channel allow you to integrate our renowned Perkins EQ into the
record path. Plus, a stereo return from your DAW, or iTunes is
assignable to the control room section or straight back into two
channels panned left and right for mix integration.

Powerful Effects Engine

With
six aux sends routable to your DAW, the Mackie Onyx 1640i allows you to
use your favorite plug-in as a realtime effect. Just route an aux send
to your DAW, apply the plug-in, and assign your DAW outputs to the
control room or to a channel strip for instant integration into the mix.


Live Recording
Live sound recording could
not be simpler! The 1640i mixing console offers the ability to record
individual channels, either wet or dry, for studio-quality multitrack
recordings that you can edit and mix down later on. It also lets you
simply record the main mix, allowing for immediate creation of CDs right
at the gig.

The Mackie Onyx 1640i recording mixer is Pro Tools M-Powered compatible and includes Tracktion 3 Music Production Software.

Tracktion 3 Music Production Software
Tracktion
3 Music Production Software doesn’t make you bounce around endless
menus and windows to make music. Based on a simple, single-screen
interface, the award-winning Tracktion 3 is a fast, powerful, and
complete solution for turning your ideas into finished songs. It comes a
plethora of power and plug-ins to keep your music flowing—not locked in
menus or limitations.



Features

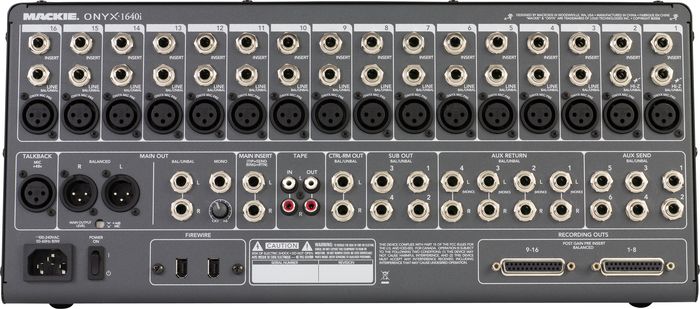

16-channel premium analog mixer with integrated 24-bit/96kHz FireWire I/O
16 Onyx boutique-quality mic preamps
4-band Perkins EQ with sweepable mids on all channels
Full 16x16 FireWire channel streaming for ultimate DAW integration
Flexible FireWire routing, including aux sends,
groups and pre/post EQ assignment for all channels
6 aux sends with pre/post assignment and solo
Smooth 60mm channel and master faders
Built-in DI on first two channels for direct connection of guitars, bass, etc.
Individual 48V phantom power switches on all mic inputs
4-segment metering on every channel
4-bus architecture for flexible sub-grouping of channels
Talkback section for use with internal or external mic

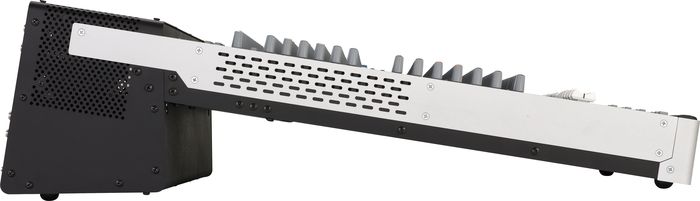

Rotating I/O pod for desktop or rackmount operation — rack ears included
"Planet-Earth" switching power supply for worldwide use




Get a better mix with this Mackie Onyx-1 series solution. Order today!







Onyx 1640i Firewire Mixer Specifications:

System Requirements
Windows XP SP 2 or greater (Home and Pro)
Windows Vista 32 RTM or greater (Home, Business, and Ultimate)
Noise Characteristics:
Equivalent Input Noise (EIN), mic input at insert, 150 Ω source
impedance, 20 to 20kHz:
60dB (max) gain: -129dBu
40dB gain: -128dBu
Output Noise Figure (1/4" Main out, all channels assigned to
main, Gain knobs at unity, 20Hz to 20kHz):
Main Mix knob down, channel Level knobs down: -100dBu (-104dB SNR, ref +4dBu)
Main Mix knob unity, channel Level knobs down: -93dBu (-97dB SNR, ref +4dBu)
Main Mix knob unity, channel Level knobs unity: -91dBu (-95dB SNR, ref +4dBu)
FireWire Through (Record + Playback) Dynamic Range:
0dBu mic input, to DAW, routed back to mixer direct to Control Room, all gain stages unity, 20Hz to 20kHz:
All sample rates: -103dB
Frequency Response:
Mic input to main output (all gain stages at unity): +0, -1dB, <10Hz to 80kHz; +0, -3dB, <10Hz to >100kHz
Channel line input to any output (all gain stages unity): +0/-1dB, 20Hz to 20k
FireWire in and out (mic input to FireWire send, returned to Control Room, all gain stages at unity):
44.1kHz sample rate: +/-0.5dB, 20Hz to 20k, -3dB at 21kHz
96kHz sample rate: +/-0.5dB, 20Hz to 20k, -3dB at 45kHz
Distortion (THD+N):
20Hz to 20kHz, 20Hz to 80kHz bandwidth
Mic input at insert: (+4dBu in, 0dB gain, +4dBu out): 0.005%
Mic input at insert: (-10dBu in, +20dB gain, 20Hz to 20kHz bandwidth) 0.0007%
Stereo channel line input to any output: (+4dBu in, all gain stages at unity +4dBu out): 0.005%
FireWire in and out (+4dBu in, mic input to FireWire send, returned to Control Room, all gain stages at unity):
44.1kHz sample rate: 0.02%, 10Hz to 20kHz
96kHz sample rate: 0.02%, 10Hz to 10kHz 0.05%, 10kHz to 47kHz
Attenuation and Crosstalk:
@1kHz
Main Mix knob down: -80dBu
Channel Alt/Mute switch engaged: -96dBu
Channel Level knob down: -96dBu
Common Mode Rejection Ratio (CMRR):
Mic input to insert, max gain, 1kHz: >70dB
Maximum Input Levels:
Mic input, gain at unity (0dB): +21dBu
Mic input, gain at max (60dB): —38dBu
Line input, gain at -20dB: +30dBu
Instrument input, gain at -20dB: +21dBu
Tape input: +21dBu
Aux return: +21dBu
Maximum Output Levels:
All outputs: +21dBu
Equalization:
Low: ±15dB at 80Hz
Lo-Mid frequency: 100Hz to 2kHz
Lo-Mid gain: ±15dB
Hi-Mid frequency: 400Hz to 8kHz
Hi-Mid gain: ±15dB
High: ±15dB at 12kHz
FireWire:
Sample Rates Available: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Buffer Size: 32 (44.1kHz and 48kHz only), 64, 128, 256, 512, 1024, 2048 samples
Resolution: 24-bit
Meters:
4-segment pre-fader channel meters: OL (+18dBu), +10, 0, -20dBu
12-segment pre-fader Control Room meters: OL (+20dBu), +15, +10, +6, +3, 0, -2, -4, -7, -10, -20, -30 (0dB = 0dBu)
Input Impedance:
Mic input: 2.7 kOhms balanced
Hi-Z input: 1 MOhms unbalanced
Mono channel line input: 30 kOhms balanced, 15 kOhms unbalanced
Stereo aux returns: 20 kOhms balanced, 10 kOhms unbalanced
Tape in: 20 kOhms unbalanced
Output Impedance:
Main XLR output: 150 Ohms balanced
Phones output: 25 Ohms
Channel Inserts: 150 Ohms
Tape Output: 2 kOhms
All other outputs: 300 Ohms (balanced)
AC Power Requirements:
Power Consumption: 50W
Universal AC Power Supply: 100 VAC - 240 VAC, 50-60 Hz
Dimensions and Weight:
Height: 7.59" / 192.7mm
Width: 17.50" / 444.6mm
Depth: 26.24" / 666.7mm
Weight: 35lb. / 15.9kg
Tracktion 3 System Requirements
Windows XP
Pentium / Athlon 1GHz or higher
512MB RAM or higher
OSX 10.4.8 or higher
G4, G5, Intel 1GHz or higher
512MB RAM or higher
