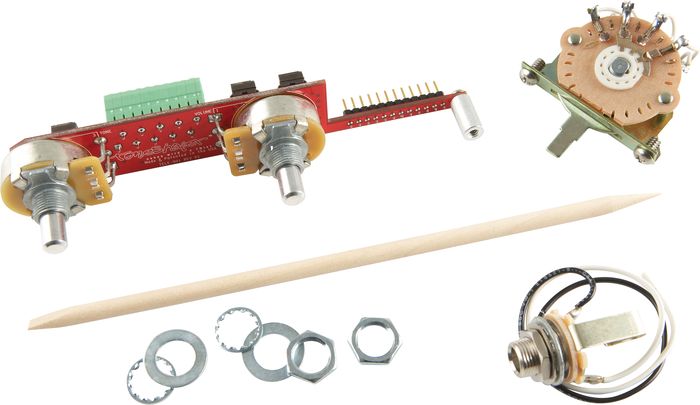

ToneShaper SW3C 3-Way Switch and Knobs for Telecaster with Two Single Coils

An amazing, do-it-yourself system that expands your guitar's tone.




The ToneShaper SW3C 3-Way Switch and Knobs for
Telecaster with Two Single Coils replaces your Tele's stock wiring,
quickly and easily, without soldering. It provides increased flexibility
that you cannot get with any other product. Cool switching options.
Customizable tone controls. Built-in solutions for dealing with treble
loss that happens when you turn down. Simple installation, simple
operation, top-quality components.


TELE® w/ SINGLE-COILS, 3-WAY SWITCH (SW3E - SELECTABLE 250K/500K VOLUME POT)
Switch Position Active pickups Hum-Canceling
Position 3 Neck No
Position 2 Neck + Bridge In Parallel Yes (assumes one RWRP pickup)
Position 1 Bridge No

The
ToneShaper SW3C is available in two basic configurations: conventional
controls and reversed controls. Conventional controls are what you're
used to seeing on your Tele, while reversed controls put the volume
control at the front, the tone in the middle, and the switch at the
back. Some people prefer this, as it provides more immediate access to
the volume control.

Selectable Volume Pot Value
All
Tele ToneShapers now have a selectable volume pot, so you can choose
between 250k or 500k operation. The value of the pot affects the overall
tonality of the guitar, even when the volume is turned all the way up.
250k is the traditional value used in Teles, and will produce a slightly
fuller and warmer tone. Switching the unit to 500k operation will make
the guitar a little brighter overall, which might benefit some guitars
that are already inherently warm. It's easy to switch between the two
values, so you'll be able to try both, and quickly determine what works
best in your application.

Top Quality
This
unit features top-quality components such as USA-made, 4-layer circuit
boards. The two outer layers are ground planes that shield the internal
circuitry from Electromagnetic Interference and Radio Frequency
Interference (EMI/RFI). This is the state-of-the-art. The pots are CTS
audio-taper with solid shafts, custom-made for this application. The
switches used are Oak-Grigsby, just like Fender uses on their Custom
Shop guitars.
Easy To Install
Mount the
ToneShaper and switch to your standard Fender control plate (fits
Callaham and Gotoh plates too, as well as most other brands). Your
pickup leads and assorted ground wires just plug right in - quickly and
easily - with press-and-release terminals. There is NO SOLDERING
required. These connectors are simple to use, don't degrade the signal
quality, and hold the wire very securely. Enjoy swapping pickups in and
out of your guitars? Then you're going to love the connectors on the
ToneShaper!



Features

Provides for increased tonal variation
Revolutionary, patented control assemblies
Replaces the existing electronic controls in the guitar without soldering




Shape your tone to get exactly what you're looking for. Order today.
