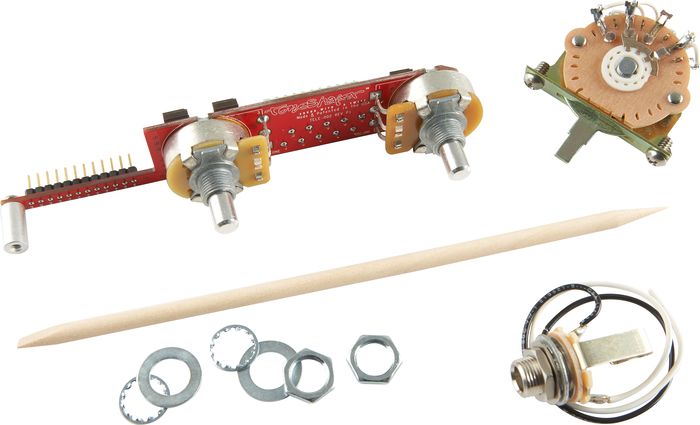

ToneShaper SW3D 3-Way Switch and Knobs for Telecaster with Bridge Single Coil and Neck Humbucker

An amazing, do-it-yourself system that expands your guitar's tone.

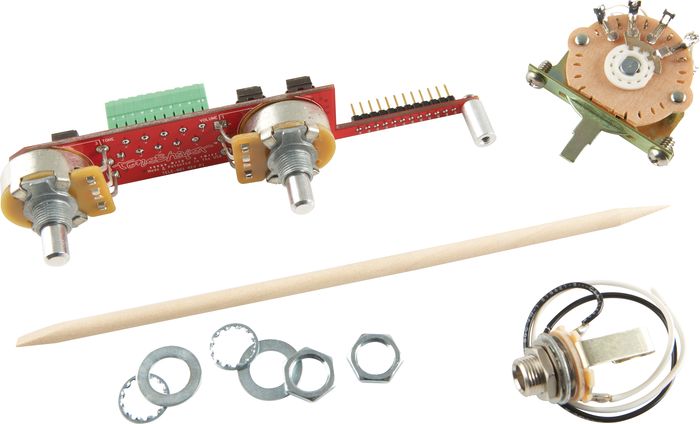

The ToneShaper SW3D 3-Way Switch and Knobs for
Telecaster with Bridge Single Coil and Neck Humbucker replaces your
Tele's stock wiring, quickly and easily, without soldering. It provides
increased flexibility that you cannot get with any other product. Cool
switching options. Customizable tone controls. Built-in solutions for
dealing with treble loss that happens when you turn down. Simple
installation, simple operation, top-quality components.

Optimized For Humbucker/Single-Coil Combinations
Note: This unit requires a 3-conductor or 4-conductor humbucker.

Most
players who add a humbucker to the bridge of their Tele use the stock
3-way switch (the ToneShaper supports this too, if desired).

They've
also considered the volume pot's value. Mixing humbuckers and
single-coils always presents a dilemma: Do you use a 250k volume pot to
accommodate the single-coils, or a 500k volume to accommodate the
humbucker? The value of the pot has an effect on the tone, and most
single-coils are voiced for 250k pots, while most humbuckers are voiced
for 500k.

With the ToneShaper, you don't have to compromise. When
you order a Tele ToneShaper for hum/single combinations, you get a 500k
volume pot to accommodate the humbucker, with a couple of resistors
that are brought into the circuit in the other switch positions,
lowering the load to 250k. So the full-humbucker setting (position 1)
sounds like a humbucker should, and the single-coil and combination
positions sound like they should.

TELE® w/ NECK HUMBUCKER, 3-WAY SWITCH (SW3D)
Switch Position Active pickups Volume Pot Hum-Canceling
Position 3 Neck Humbucker 500k Yes
Position 2 Neck Humbucker + Bridge In Parallel 250k No
Position 1 Bridge 250k No

The
ToneShaper unit is available in two basic configurations: conventional
controls and reversed controls. Conventional controls are what you're
used to seeing on your Tele, while reversed controls put the volume
control at the front, the tone in the middle, and the switch at the
back. Some people prefer this, as it provides more immediate access to
the volume control.

Top Quality
This unit
features top-quality components such as USA-made, 4-layer circuit
boards. The two outer layers are ground planes that shield the internal
circuitry from Electromagnetic Interference and Radio Frequency
Interference (EMI/RFI). This is the state-of-the-art. We went
top-drawer, because we knew you'd want it to be quiet.

The pots
are CTS audio-taper with solid shafts, custom-made for this application.
The switches used are Oak-Grigsby, just like Fender uses on their
Custom Shop guitars. Two jacks are available: a Switchcraft model 11
that is the industry standard, or a Switchcraft L11, which has a
slightly longer threaded bushing, so that you can get the proper washers
on there and still have enough threads to get the nut on.

Easy To Install
Mount
the ToneShaper and switch to your standard Fender control plate (fits
Callaham and Gotoh plates too, as well as most other brands). Your
pickup leads and assorted ground wires just plug right in - quickly and
easily - with press-and-release terminals. There is NO SOLDERING
required. These connectors are simple to use, don't degrade the signal
quality, and hold the wire very securely. Enjoy swapping pickups in and
out of your guitars? Then you're going to love the connectors on the
ToneShaper.



Features

Provides for increased tonal variation
Revolutionary, patented control assemblies
Replaces the existing electronic controls in the guitar without soldering




Shape your tone to get exactly what you're looking for. Order today.
