Audio-Technica AT4049B-EL Omnidirectional Head Capsule

Audio-Technica


Provides additional versatility and functionality to Audio-Technica modular microphone systems.

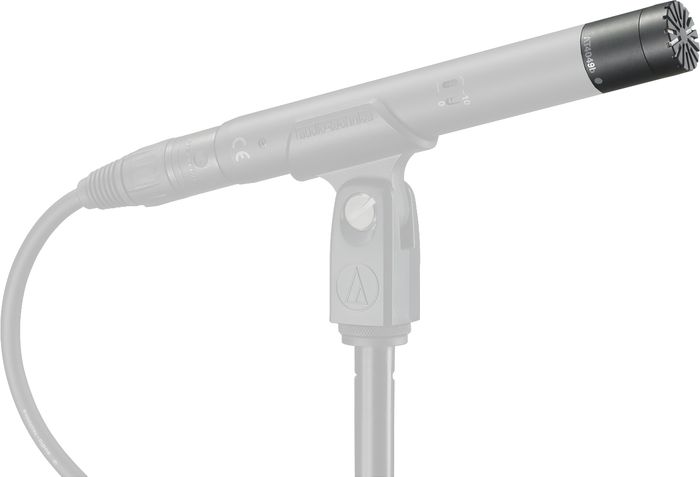

The Audio-Technica AT4049B-EL Omnidirectional
Head Capsule is a modular component of the Audio-Technica AT4049B,
AT4051B, and AT4053b Condenser Microphone systems. The AT4049b-EL is one
of several capsules designed to work with the Audio-Technica AT4900b-48
Microphone body. It is recommended for professional recording and
critical applications in broadcast. The 4049b-EL has fast response to
transients and contributes to the open, transparent reproduction of even
the most difficult-to-capture instruments.

Omni capsules don't
suffer from proximity effect or off-axis coloration. Use omni mics when
you want a more realistic sound of instruments recorded in a live
space. Since omnis do pick up more of the room than other patterns, it's
important to record in a good-sounding acoustic space. Omni's are also
used for recording electric guitars when you want to capture the true
sound of the instrument without hyped low-mids, and some room tone as
well. However, the greatest advantage of omni mics in general and the
AT4049B in particular, is the open and extended bass response and lack
of phase-cancellation problems that can occur with directional mics.



Features

Works With The Audio-Technica AT4049B, AT4051B, and AT4053b Condenser Microphone systems.
Specially engineered to meet the most critical acoustic requirements
of professional recording, broadcast and sound reinforcement
Omnidirectional polar pattern provides maximum ambient pickup
Direct-coupled, balanced output results in a clean signal even under high-output conditions
State-of-the-art design and manufacturing techniques ensure
compliance with A-T's stringent consistency and reliability standards
RoHS-compliant — free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)




A cost-effective way to add omni recording to your bag of studio tricks.




AT4049B-EL Omnidirectional Head Capsule Specifications:

Element: Externally polarized (DC bias) capacitor
Polar Pattern: Omnidirectional
Frequency Response: 20-20,000 Hz
Low Frequency Roll-Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
Impedance: 50 ohms
Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)
Noise: 16 dB SPL
Dynamic Range (Typical): 129 dB, 1 kHz at Max SPL
Signal-To-Noise Ratio: 78 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 48V DC, 4.8 mA typical
