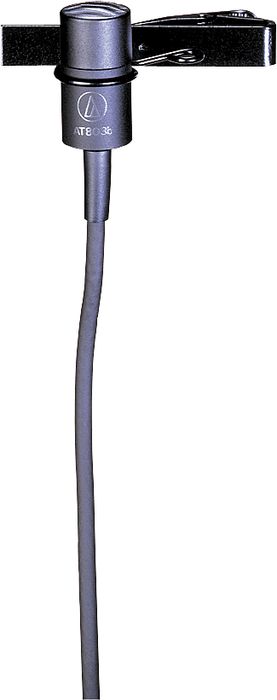

Audio-Technica AT803 Omnidirectional Condenser Lavalier Microphone

Audio-Technica


Low-profile and roll-off equipped.




The Audio Technica AT803b provides excellent yet
unobtrusive sound pickup for lecturers and stage/TV performers. Designed
for clip-on lavalier and musical instrument use, it features an
integral 80 Hz high-pass filter that provides easy switching from a flat
frequency response to a low-end roll-off. The microphone operates on
battery or phantom power.



Features

Designed for clip-on lavalier and musical instrument use
Small size is ideal for applications requiring minimum visibility
Operates on battery or phantom power
6' (1.8 m) cable permanently attached to mic, TA3F connector at power module




Order today and enjoy pro quality sound.



AT803 Omnidirectional Condenser Lavalier Microphone Specifications:

Element: Fixed-charge back plate, permanently polarized condenser

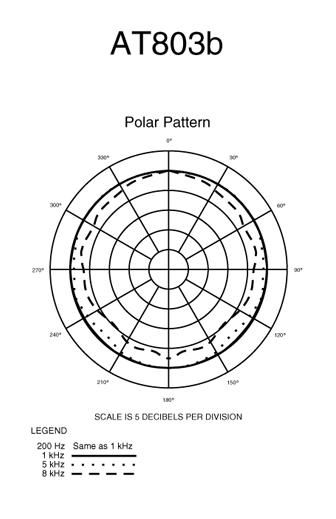

Polar pattern: Omnidirectional

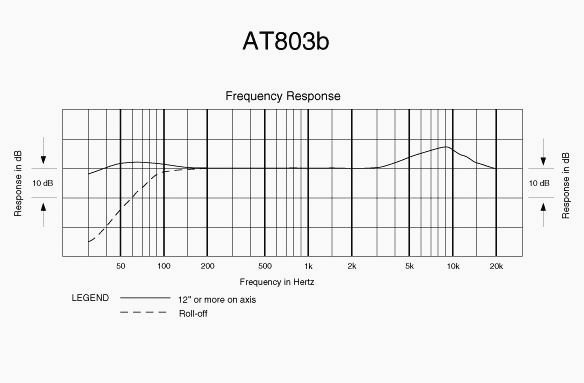

Frequency response: 30-20,000 Hz
Low frequency roll-off: 80 Hz, 18 dB/octave
Open circuit sensitivity:
Phantom: —45 dB (12.5 mV) re 1V at 1 Pa
Battery: —46 dB (11.2 mV) re 1V at 1 Pa
Impedance:
Phantom: 200 ohms
Battery: 270 ohms
Maximum input sound level:
Phantom: 135 dB SPL, 1 kHz at 1% T.H.D.
Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
Dynamic range (typical):
Phantom: 106 dB, 1 kHz at Max SPL
Battery: 92 dB, 1 kHz at Max SPL
Signal-to-noise ratio: 72 db, 1 kHz at 1 Pa
Phantom power requirements: 11-52V DC, 2 mA typical
Battery type: 1.5 AA/UM3
Battery Current Life: 0.4 mA / 1200 hours typical (alkaline)
Switch: Off, on-flat, on-roll-off
Weight (microphone): .09 oz. (2.5 g)
Weight (power module): 4.9 oz. (139 g)
Dimensions (microphone): 0.81" (20.5 mm) long, 0.39" (10.0 mm) diameter
Dimensions (power module): 3.13" (84 mm) H x 2.48" (63.0 mm) W x .87" (22.0 mm) D
Output connector (power module): Integral 3-pin XLRM-type
Cable:
6' (1.8 m) long (permanently attached to microphone), 0.10" (2.6 mm)
diameter, 2-conductor, shielded cable with TA3F-type connector
Accessories furnished: AT8417 clothing clip; AT8531 power module; AT8116 windscreen; battery; protective carrying case
Audio-Technica case style: M1
