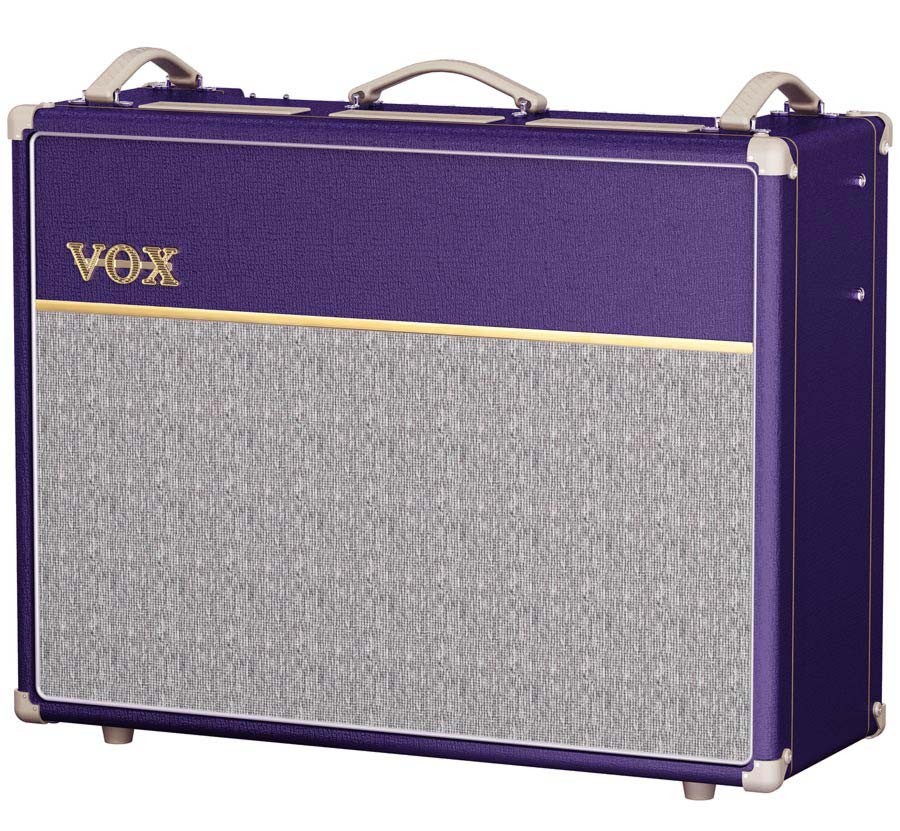

Vox Amps AC30C2PL - Limited Edition Purple

Vox AC30C1PL – Limited Edition Purple

An Evolution in Tone
The VOX AC15C1 and AC30C2 Limited Edition Custom Series amps offer two
channels; Normal and Top-Boost. Each channel is equipped with its own
Volume control, and the Top Boost channel offers highly interactive
Treble and Bass tone controls. This powerful channel pairing provides
an abundance of tone-crafting control, letting you dial in a classic
tone that is all your own. Both channels rely on the Tone Cut and
Volume controls in the Master section. The Tone Cut control operates in
the power stage rather than the preamp stage, allowing an additional
degree of tone-shaping. The Master Volume control works in conjunction
with the individual volumes of each channel to create just the right
degree of gain-staging. By balancing the individual and Master volumes,
the Custom Series can deliver the coveted clean VOX "chimey" sound or a
powerful overdriven tone – and everything in between.
Sound in Motion
You can sweeten the sound of VOX AC15C1 or AC30C2 Limited Edition
Custom Series amp by using the VOX Classic Tremolo effect. Both the
speed and the depth are adjustable, making the Tremolo circuit
extremely useful, allowing you to generate just the sound you want. A
warm Spring Reverb is also included on all Custom Series amps, adding
spaciousness to the sound. The AC30C2 Limited Edition generously adds
an additional tone control to the Reverb section. Using the Reverb and
Tremolo together can create even more interesting effects. These
onboard effects give the Custom Series their deep personality, and will
add new dimensions of sound to your own playing. And while the Tremolo
and Reverb are certainly exciting, the AC30C2 Custom Series amp also
provides an effect loop for incorporating your favorite effects into
your sound. True "Bypass" switching takes the entire effect loop out of
the circuit.
Power Sharing
There is no mistaking true tube tone. Both Custom Series combo amps
make use of 3 x 12AX7 preamp tubes. The AC30C2 Limited Edition uses 4 x
EL84 tubes to delivers 30 Watts of power and a pair of EL84 tubes in
the AC15C1 Limited Edition gives you 15 Watts of power. Both models
offer a switchable 8 Ω / 16 Ω jack for powering an external speaker
cabinet when you need to speak with a little more authority; using this
jack will mute the internal speakers. The extension speaker jack
allows you to run an additional 16 Ω cabinet along with the internal
speakers for a fuller sound.

VOX AC30C2-PL/CM Custom Specifications

Output Power: 30 Watts RMS into 16 Ohms
Tube Complement: Preamp: ECC83 / 12AX7 (x3) Power amp: EL84 (x4)
AC30C2-PL Speakers: 12” Celestion G12M Green Back (x2); 8 Ohm
AC30C2-CM Speakers: 12” Celestion G12M-65 Cream Back (x2); 8 Ohm
Inputs: NORMAL Channel Jacks: HIGH (x1); LOW (x1) TOP BOOST Channel Jacks: HIGH (x1); LOW (x1) FOOT SWITCH Jack; FX LOOP Return
Controls: NORMAL Channel: Volume TOP BOOST Channel: Volume,
Treble, Bass REVERB: Tone, Level TREMOLO: Speed, Depth MASTER: Tone
Cut,Volume
FOOT SWITCH Jack; FX LOOP Return
Outputs: Extension Speaker Jack, External Speaker Jack, FX LOOP Send
Dimensions (W x D x H): 702 x 265 x 556 mm / 27.64 x 10.43 x 21.89 inches
Weight: 32.2 kg / 70.99 lbs.
Options: VFS2A footswitch





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
