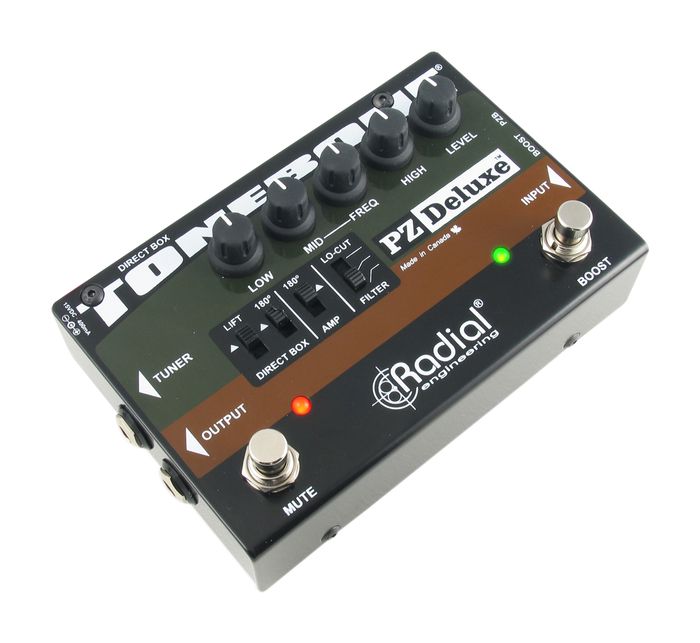

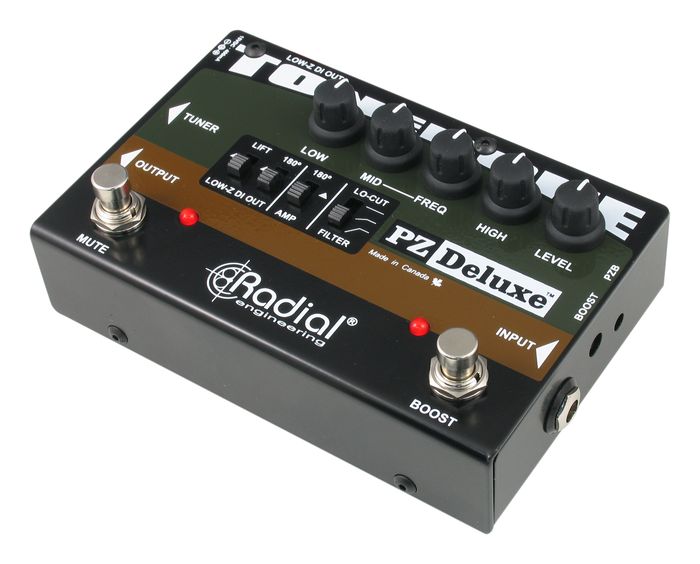

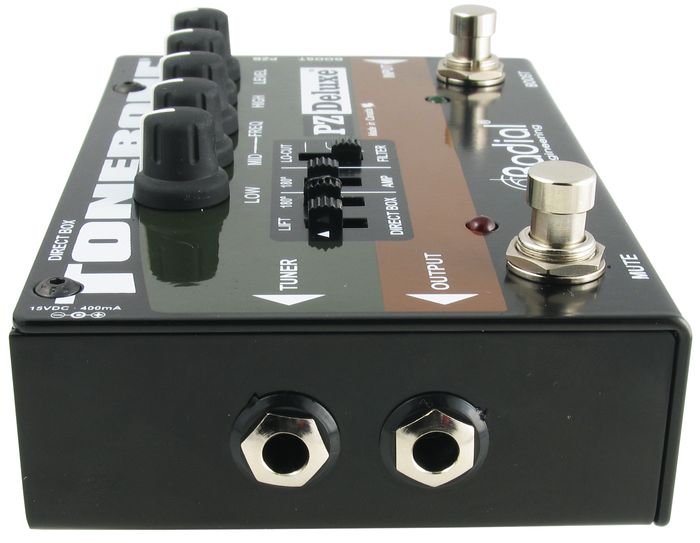

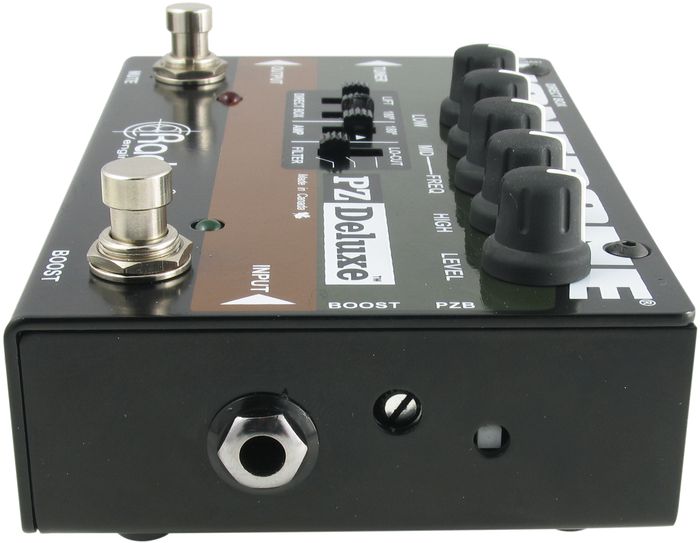

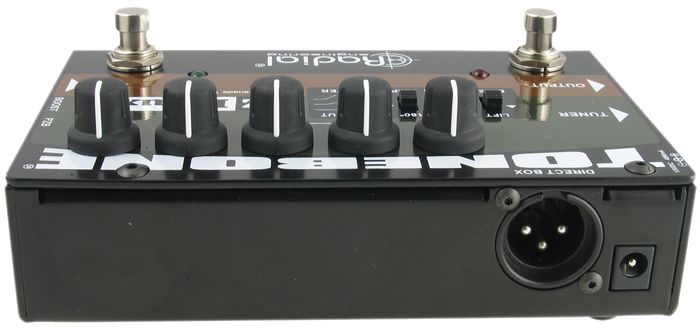

Radial Engineering PZ-Deluxe Acoustic Preamp / Direct Box Guitar Pedal

Studio quality comes to the stage.




The Radial PZ-Deluxe is a studio-quality
instrument preamp that works well with a wide variety of pickups and
transducers. Apart from its studio applications, it packs a full array
of features into a compact pedal that is great for live stage use.

And
like most studio preamps, the PZ-Deluxe begins with a low noise front
end that is capable of exceptional dynamics to adapt to all instruments
including acoustic guitar, upright bass, mandolin and violin no matter
what type of pickup system is being used. For piezo transducers, a
special PZB gain stage may be engaged that increases the input impedance
to 10 meg-Ohms to eliminate squawk and explosive peaks that are common
with other systems. This eliminates the need for a separate preamp -
which is of particular importance for those that do not want to cut a
hole into their vintage guitar.

The control panel is well
appointed with input gain, 3-band semi-parametric EQ with variable
mid-frequency, three position low frequency resonance filter and
180-degree polarity reverse switches to eliminate acoustic hot spots
that cause runaway resonant feedback. A guitar level output delivers the
sound to the artist's stage amp while the built-in Radial direct box
feeds the PA system. This balanced low impedance output enables the
PZ-Deluxe to drive long cable runs of over 100 meters (300 feet) without
noise. A separate tuner output enables quiet on-stage adjustments by
depressing the mute switch. And for solos, a variable power booster with
set & forget level control lets you punch through the mix when
needed.

The Radial PZ-Deluxe is compact for easy transportation,
made tough to handle the road, plug & play easy to use and delivers
exceptional studio quality audio.

Acoustic guitar
The
PZ-Deluxe 15V supply delivers more headroom than typical 9V devices for
greater dynamics, less distortion and more natural tone. This makes the
PZ-Deluxe the perfect front end for acoustic guitars with built-in
active systems, electric violin and magnetic pickups.

Direct piezo hook-up
The
PZ-deluxe eliminates the need for a preamp. Simply activate the PZB
gain stage and the PZ-Deluxe automatically elevates the input impedance
to 10 meg Ohms and connect the guitar directly to the studio quality
preamp for smooth, natural performance.

Upright bass
The
studio quality preamp delivers exceptional performance no matter what
instrument you plug in. This makes the PZ-Deluxe a great choice for
acoustic bass, viola, mandolin, banjo or just about any acoustic
instrument. Bypass your external preamp by turning on the PZB for
optimum performance.



Features

Combination instrument preamp and direct box
Exceptionally quiet audio performance
Works on all types of pickups and transducers




Order now and have a new friend in the studio and on stage.




PZ-Deluxe Acoustic Preamp / Direct Box Guitar Pedal Specifications:


Circuit type: Class A FET Hybrid Input Stage
Frequency response: 20Hz ~ 18kHz (0/-3dB)
Dynamic range: 105dB
Total harmonic dostortion: 0.03% @ -20dB output
Equivalent Input Noise -108dBu
Intermodulation Distortion: 0.07%
Input Impedance - PZB Off: 6.8K-ohms
Input Impedance - PZB On: 10M-ohms
Gain - 1/4" Input to stage amp out: +16dB (PZB-Off)
Gain - 1/4" input to XLR Out: +21dB (PZB-Off)
Gain - PZB Piezo booster circuit: +10dB
Gain - Boost On: +13dB maximum
Output Impedance - XLR Output 4k-ohms
Size: (6.1" x 3.8" x 2.1") (155 x 96.5 x 53mm)
Weight: 1.75lbs (0.8kg)
Power Requirement: 15V ('Nominal) 400mA Center Pin Positive Adapter
