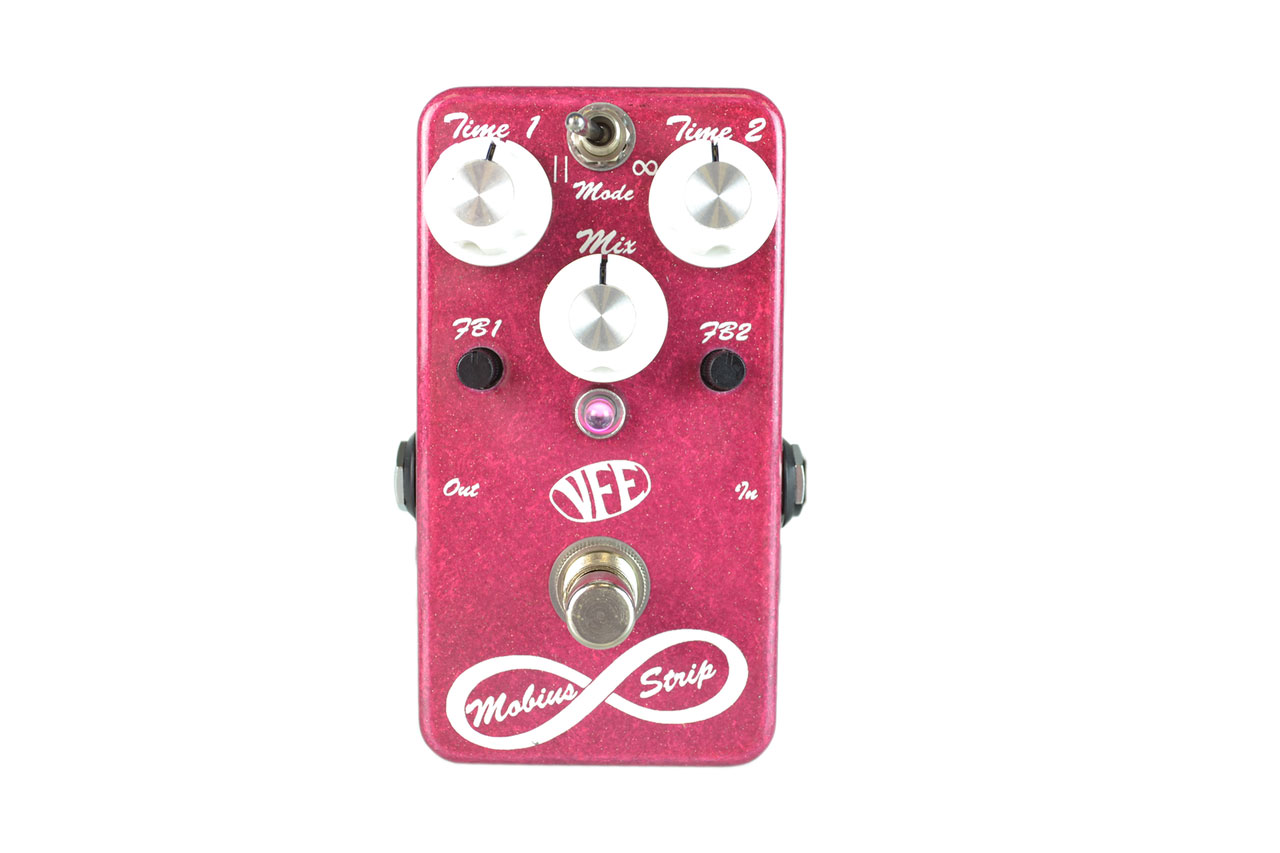

VFE Pedals Mobius Strip Dual Delay

VFE Pedals Mobius Strip Dual Delay

The Mobius Strip is a unique delay pedal with two
parallel paths. The time delay for each pathway is set independently by
dual TIME controls and independent FEEDBACK controls. || means parallel
mode. In this mode, the two delays are fully independent from each
other. So delay A repeats on regular time intervals - A, A, A, A,
A...while delay B repeats on its own time intervals - B, B, B, B, B,
etc. These are mixed together at equal volumes, and the overall delay
volume is controlled by the MIX knob.


∞ stands for Mobius mode. In this mode, the delays are still
parallel, but the feedback crosses over from delay A to delay B, and
vice versa. Just for an example, let's imagine delay A is set at a
shorter delay time than delay B. So you would hear delay A first &
then delay B. The feedback would criss-cross & then both delay lines
would produce the same A+B repeat - the third repeat you would hear
would actually be made by both delay lines. The feedback would
criss-cross back the original delay line, and the process would repeat.


The Mobius mode criss-cross process basically
creates a pattern of 3 repeats that have the same rhythmic pattern
between them as they fade out. The parallel mode has a pattern of 2
repeats that are independent...which means the time interval between the
pair of repeats will change as the delay fades out.

VFE Pedals Mobius Strip Dual Delay Features:

TIME: Controls the delay time of each of the parallel delay lines.
FB1 & FB2: Controls the amount of feedback coming out of each delay.
MIX: Sets the volume of the wet, delayed signal.
MODE: Selects between two feedback modes. ||
mode causes the feedback of each parallel delay to feedback
indepedently. The ∞ mode enables cross-feedback. FB1 feeds into the
right delay line, and FB2 feeds into the left delay path.
INTERNAL CONTROL: The lone internal trimpot controls the brightness of the LED indicator light.
