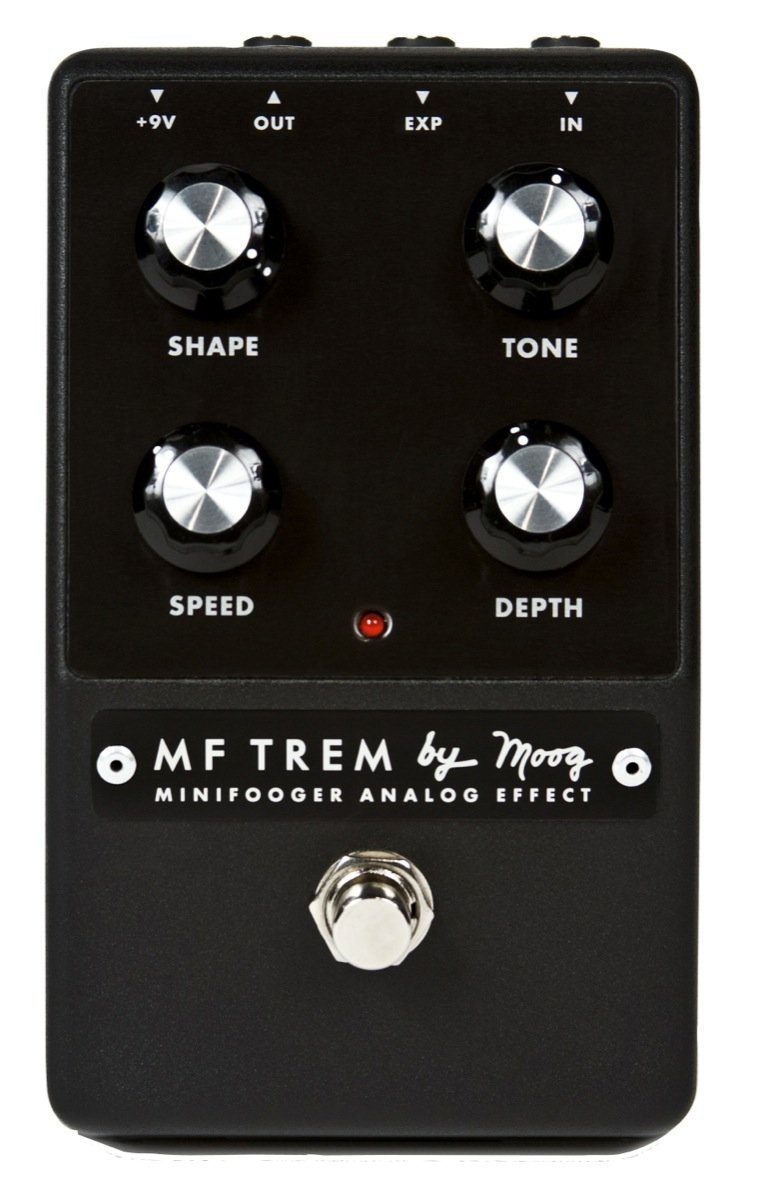

Moog MF Minifooger Tremolo Effect Pedal

Product DescriptionThe Moog MF Minifooger Tremolo is an
analog tremolo pedal based around a balanced modulator and Sub Audio
VCO. This unique design creates a wide range of tremolo effects that are
based on phase cancellation and addition. Create classic optical and
hard tremolo effects that are reactive to harmonic content, or push up
the depth control and shift into the beginnings of lush phasing and
chorus. The variable Shape control interacts directly with Tone and Mix
to craft subtle swells and gallops to rhythmic percussive, and swirling
effects. An expression pedal input adds control over tremolo Speed for
beautiful, hands-free swells and rotary effects.

CONTROLSSHAPE
Sweeps between modulation wave shapes. Center position has a smooth rise
and fall. This is great for creating optical tremolo sounds. Hard right
has a hard impact followed by a smooth decline. This creates abrupt and
percussive behavior that is very musical when paired with the Tone
knob. Hard left has a smooth lift and abrupt drop off which creates a
sound similar to a reverse effect at slower speeds and a rotary speaker
at higher speeds.

SPEED
Sets the overall Tremolo rate. At slower settings the sound is swirling,
lush, and transformative. As the Speed is increased the sound becomes
tighter and more like a rotary speaker. The Shape and Depth controls
will directly affect the perceived speed and rhythm of your Tremolo as
they are increased from minimum to maximum position.

DEPTH
At minimum the tremolo effect is subtle and mostly dry. As Depth is
increased more tremolo effect is blended in the mix causing phase
cancellation and addition effects. At center position the sound will
begin to gallop and swing. This impact on the sound varies significantly
depending on Speed. At maximum position, the tremolo speed doubles and
all sound is sent through the Tone control.

TONE
This control affects the Tremolo signal only leaving the dry signal
untouched. At maximum, all frequencies are affected by the tremolo. As
the Tone control position is decreased, the effect of the tremolo
becomes more-subtle. From the mid position down, the Tone control can be
used to dial in sounds that impact only low frequencies in your
instrument or to shape classic rotary swirl and phase-like sounds.

EXPRESSION PEDAL INPUT
Assigned to Speed. Use it for swells and transitions between high and low settings.

Features:- True Bypass
- Shape control creates smooth, reversed, rotary, and percussive effects
- Tone control harmonically interacts the effected signal to create wide ranges of movement
- Reacts musically to playing dynamics, chord positioning and harmonic content
- Expression pedal control of Tremolo Speed for beautiful swells and rotary effects
- Designed to perform with any Guitar, Amp, or Bass guitar configuration



- SIGNAL PATH: 100% Analog
- BYPASS TYPE: True bypass
- POWER: +9VDC
- WEIGHT: 18oz (0.5kg)
- ENCLOSURE: Cast aluminum
- DIMENSIONS: D=5.75" (14.4 cm) W=3.25" (8.3 cm) H=2.25" (5.8 cm)
- LFO SPEED: 0.6Hz to 12Hz, with Shape in Mid-position
- TONE CONTROL: 165 Hz - 20KHz Lowpass Filter 6dB/Octave (wet signal only)
- EXPRESSION: Controls Speed (Max Input level +5VDC)
- INPUT IMPEDANCE: 1 MegaOhm
- OUTPUT IMPEDANCE: 200 Ohm Max
- CURRENT: 11mA Dimensions and Weight in PackagingShipping Weight: 1 lbs
Shipping Dimensions:
1 x
1 x
1 in
