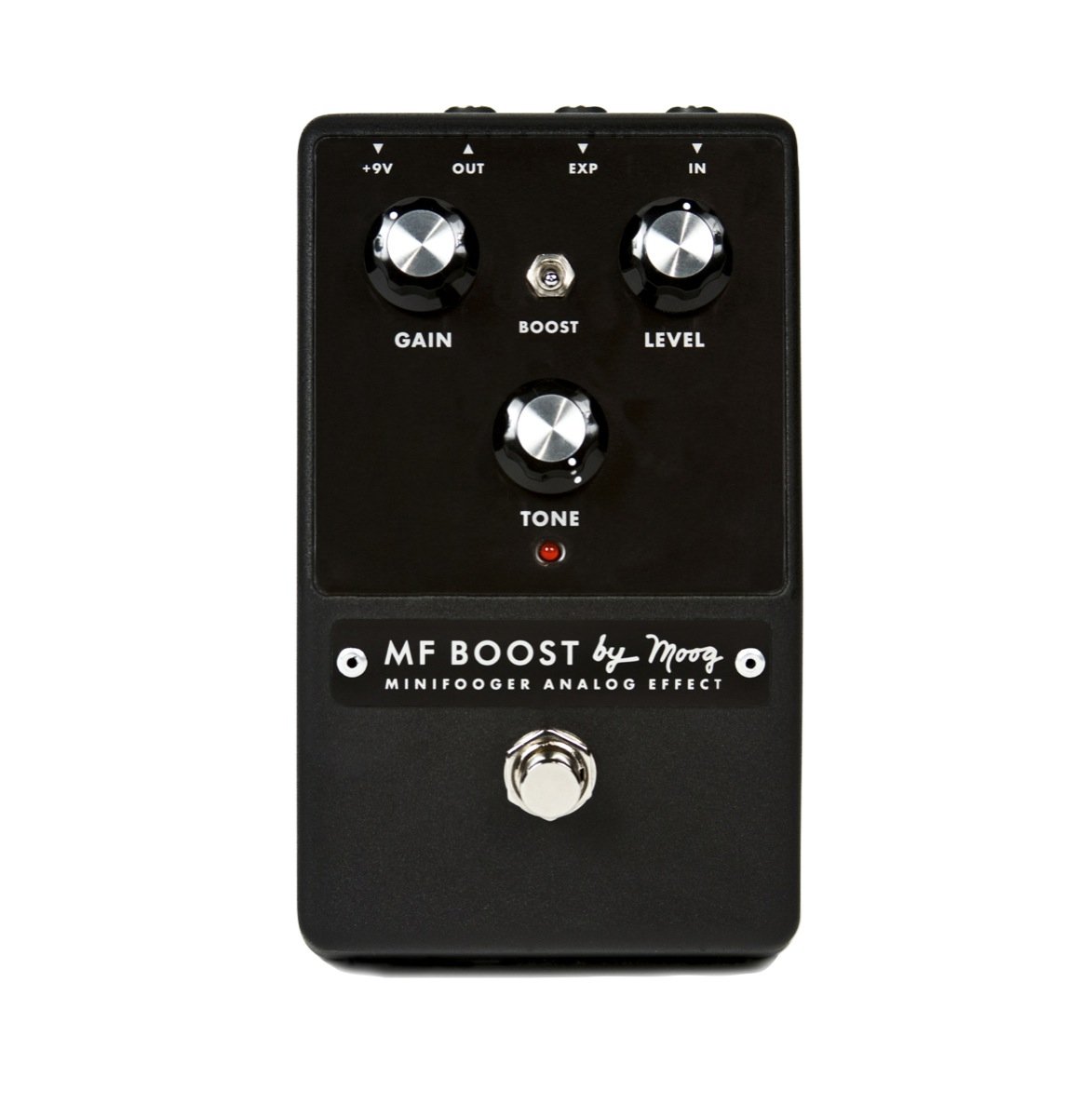

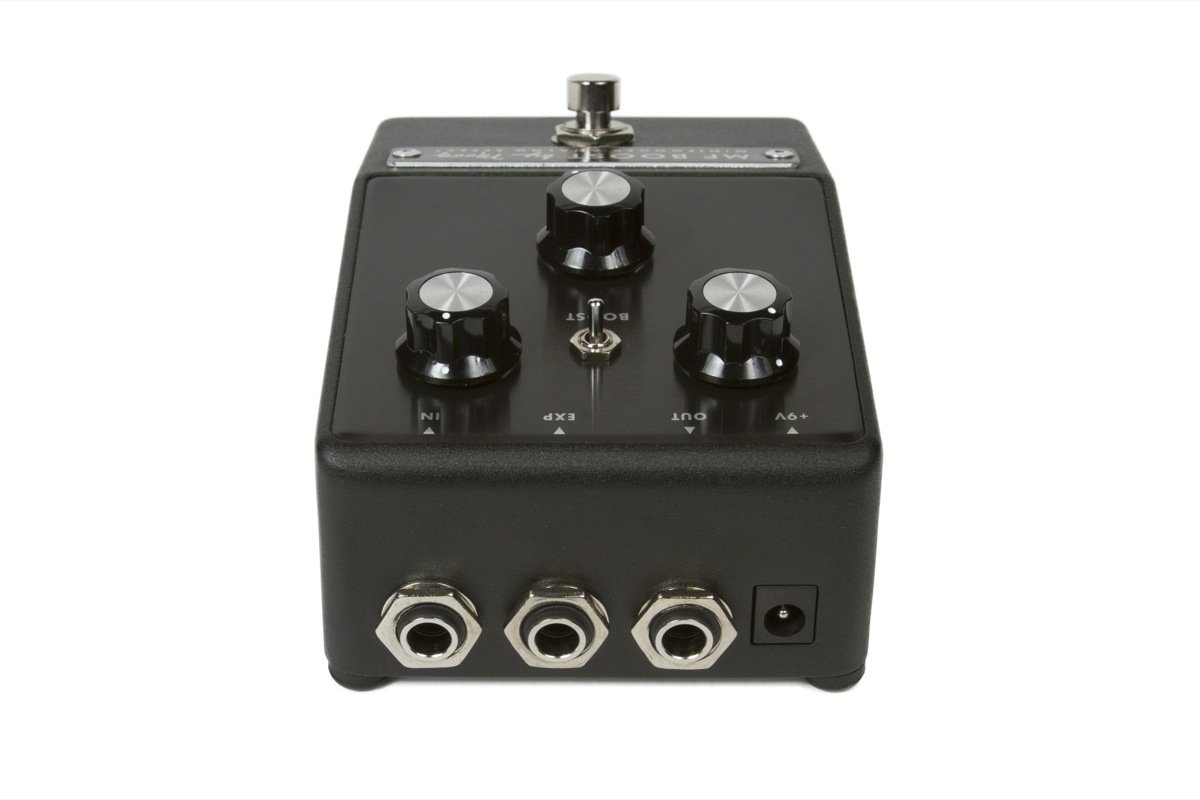

Moog Minifooger MF Boost Effect Pedal

Product DescriptionThe Moog Minifooger MF Boost is an
Expression enhanced, twin topology boost pedal that allows you to select
between an articulate VCA signal path and a colored OTA signal path.
This completely unique boost design works with your guitar and amplifier
to conjure boutique sound and responsiveness from any guitar/amplifier
combination. Its natural compression and sound enhancement also bring
out the best tone and performance in other effects pedals. When paired
with an expression pedal, the MF Boost can be used as a tone enhancing
volume pedal or sweepable-gain boost pedal. The expression pedal input
also provides access to higher gain values not available on the panel.

CONTROLSGAIN
Sets the input gain from off to maximum. With the Boost switch in the
down position (VCA mode), this knob should be set to maximum. In this
setting you will notice tighter bottom, focused midrange, and a more
open top end. With Boost in the up position (clipped OTA mode), the
sound is creamy and lightly compressed with a slightly more forward
midrange.

BOOST
In the down position, signal is sent through the VCA signal path
providing clean, articulate tonal enhancement with a subtle 6dB boost
(12dB+ w/ expression). This setting feels and sounds like a boutique amp
in a pedal. With the switch in the up position, signal is sent through
the clipped OTA path providing 12dB of boost (18dB+ w/ expression). This
path has a creamy, classic tone that bonds guitar and amplifier for
everything from subtle bite and drive to singing leads. Both settings
have a naturally occurring musical compression.

TONE
At higher settings this control adds openness, note articulation and
picking detail. In this setting the top-end in your amplifier is
sweetened while remaining smooth, the mids become focused, and the
bottom end appears more robust and tight. At lower settings the Tone
control can be used to fatten up an amp or tame harsh top-end.

LEVEL
Level allows you to trim the output of the Boost while maintaining input
gain coloration. This control does not go completely off.

EXPRESSION PEDAL INPUT
This input is assigned to Gain. With Gain set to minimum, an expression
pedal can be used as a volume pedal. At the mid setting in clipped OTA
mode, the expression pedal allows you to swell in and out boost levels
musically. At maximum, use an expression pedal to add input Gain not
available on the panel of your MF Boost and overdrive your amp.

Features:- Articulate tone enhancement tool that you leave engaged
- Two selectable signal paths with natural compression
- Transparent tone circuit adds articulation, Nashville cluck, or removes harshness
- Can be used as a clean boost pedal, a dirty boost pedal AND a volume pedal
- Expression pedal adds gain past the panel setting
- True Bypass


- SIGNAL PATH: 100% Analog
- BYPASS TYPE: True bypass
- POWER: +9VDC
- WEIGHT: 18oz (0.5kg)
- ENCLOSURE: Cast aluminum
- DIMENSIONS: (D x W x H) 5.75 x 3.25 x 2.25? (14.4 x 8.3 x 5.8cm)
- GAIN: -65dB - +18dB
- TONE CONTROL: 165 Hz - 20KHz Lowpass Filter 6dB/Octave (wet signal only)
- EXPRESSION: Controls Gain (Max Input level +5VDC)
- INPUT IMPEDANCE: 1 MegaOhm
- OUTPUT IMPEDANCE: 100 Ohm minimum
- CURRENT: 8mA Dimensions and Weight in PackagingShipping Weight: 1 lbs
Shipping Dimensions:
1 x
1 x
1 in
