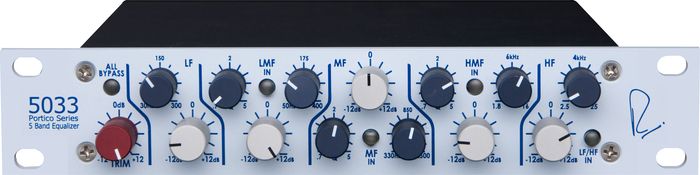

Rupert Neve Designs Portico 5033 5-Band Equalizer Module

Gives you precise EQ control and that reknowned Neve "sweetness".




The Rupert Neve Designs Portico 5033 5-Band
Equalizer and high performance line driver with the performance,
features and musicality expected from the legendary Rupert Neve, its
designer.

The Portico 5033 EQ features Rupert Neve's custom input
and output transformer designs, 5 bands of EQ based on his traditional
curves, ±12dB input level adjustment, 5 filter bypasses. You can
configure the Neve 5033 EQ in either horizontal or vertical formats.

At
the input and output of the Neve 5033 EQ lie custom designed Rupert
Neve transformers, which are much of the heart of the sound of Rupert
Neve's classic component designs. The 5033 module's EQ section can be
completely bypassed and the unit can be used as a very high quality line
driver utilizing these transformers, which can help to add sonic
sweetness to a source.

Low Frequency and High Frequency Shelving Filters

For
opposite ends of the audio spectrum there are 2 separate shelving
filters, which are both engaged or disengaged using the same LED
pushbutton. Each shelving filter allows for a boost or cut of up to 12
db, providing steeply rising or falling curve shapes. When these curves
are boosted or cut aggressively, they enable the second and even third
harmonic to be varied in relation to their fundamental, allowing the
natural sound of a musical instrument to be varied. When used less
aggressively, one can attenuate bands of frequencies above or below the
"turnover" point to their desired levels. These sections each provide EQ
curves that approximate to 6 dB/ and give a true flat response when
this section is engaged but not boosted or attenuated.

Low Frequency (LF) Shelving Filter

Continuously
variable from 30Hz to 300 Hz, allowing for a wide range of
applications, from filtering out low rumbles caused by air conditioning
units to taming an instrument with too much low end or even adding a
little bit of "oomph" to a thin mix, proving to be an indispensable
asset in the signal chain.

High Frequency (HF) Shelving Filter

Continuously
variable from 2.5 kHz to 25 kHz, giving this section of the EQ a
valuable range of operation. Whether you want to really bring out the
presence and breath of your vocals or simply add some "air" to your
overall mix, the HF shelving filter will give you that bit of sparkle
you're looking for.

Mid Range Parametric Filters

To cover
the crucial mid-range, the 5033 comes with three bands of parametric EQ,
each separately engaged and having a true "flat" response when each
section is engaged but not boosted or attenuated. Each section is
capable of boosting or attenuating up to 12 dB, and includes a variable
"Q" control. "Q" controls range from "Q" = 0.6 to "Q" = 3, allowing you
to vary the bandwidth of the attenuation or boost, whether a broad range
of frequencies to gently give a sonic section a slight boost or dip or
using the filter with a very narrow range of frequencies, acting almost
as an audio "chisel" to hone in on certain offending frequencies.

The Low Mid Frequency (LMF)

Section
is variable from 50 Hz to 400 Hz. The Mid Frequency (MF) Section is
variable from 330 Hz to 2.5 kHz. The High Mid Frequency (HMF) Section is
variable from 2 kHz to 16 kHz. Each section has been carefully designed
to overlap neighboring ranges, allowing for a very fine range of
possible adjustments.


Rackmounting Porticos:
If
you'd like to rackmount a single Portico, Neve offers the Half Rack
Joining Kit (see #482654). Or to rackmount two Portico units, Neve
offers its Horizontal Joining Kit (see #482653). Another option for
mounting single half rack units is the Raxxess Universal Rack Shelf (see
#421642).



Features

5 Bands Of EQ
Neve Custom Input And Output Transformer Designs Which Add Sonic "Sweetness" To A Source
Analogue Operation
Intended For Recording, Mixing And Mastering Applications
Compact Half-Rack Design
Heavy Duty Construction




Portico 5033 5-Band Equalizer Module Specifications:

EQ POINTS:
LMF
1st notch not numbered - 65.1 Hz
2nd notch - 120.8 Hz
4th notch - 248.9 Hz
5th notch - 354.5 Hz
MF
1st notch not numbered - 443.6 Hz
2nd notch - 693.9 Hz
4th notch - 1.481 kHz
5th notch - 2.225 kHz
HMF
1st notch not numbered - 2.475 kHz
2nd - 4.748 kHz
4th - 9.612 kHz
5th - 13.545 kHz
The LF and HF shelf frequencies are the 3 dB down points from the highest point of the shelf:
LF
1st notch not numbered - 68.4 Hz
2nd - 111.3 Hz
4th - 155.6 Hz
5th - 198 Hz
HF
1st notch not numbered - 2.760 kHz
2nd - 3.240 kHz
4th - 5.6 kHz
5th - 10.9 kHz
TRIM: Provides fine gain adjustment continuously over a range of ±12 dB.
ALL BYPASS:Push button inserts or bypasses the entire EQ circuit
LF SECTION: Continuously variable shelving filter with a frequency range of 30 Hz to 300 Hz; continuously variable gain of ±12
LMF
SECTION: Continuously variable frequency range of 50 Hz to 400 Hz;
continuously variable Q; continuously variable gain of ±12; IN
pushbutton inserts or bypasses LMF Section
LMF IN: Inserts the LMF Section into the circuit
MF
SECTION; Continuously variable frequency range of 330 Hz to 2500 Hz;
continuously variable Q; continuously variable gain of ±12; IN
pushbutton inserts or bypasses LMF Section
MF IN: Inserts the MF Section into the circuit
HMF
SECTION: Continuously variable frequency range of 1.8 kHz to 16 kHz;
continuously variable Q; continuously variable gain of ±12; IN
pushbutton inserts or bypasses LMF Section
HMF IN: Inserts the HMF Section into the circuit
HF SECTION: Continuously variable shelving with a frequency range of 2.5 kHz to 25 kHz; continuously variable gain of ± 12
HF & LF IN: Inserts the HF and LF Sections into the circuit
