Antelope Audio ECLIPSE 384 Mastering AD/DA Converter

Antelope Audio


Professional audio conversion with renowned 64-bit DSP clocking technology.




Antelope Audio is dedicated to pro audio
equipment manufacturing, and helping people achieve high-definition
sound in the recording studio. The Eclipse 384 is a product of this
devotion. The Eclipse 384 is a high-end stereo AD/DA converter that is
clocked by Antelope’s renowned 64-bit technology, providing mixing and
mastering engineers with an unprecedented level of productivity, sound,
quality, and ease of use.

64-bit DSP Trinity-level clocks
The
Eclipse comprises 384 kHz A/D & D/A converters clocked by two
independent 64-bit DSP Trinity-level clocks. The fully integrated
monitor controller employs 0.05 dB accurate gold-plated relay
attenuators and provides speaker switching, bass management and cue mix

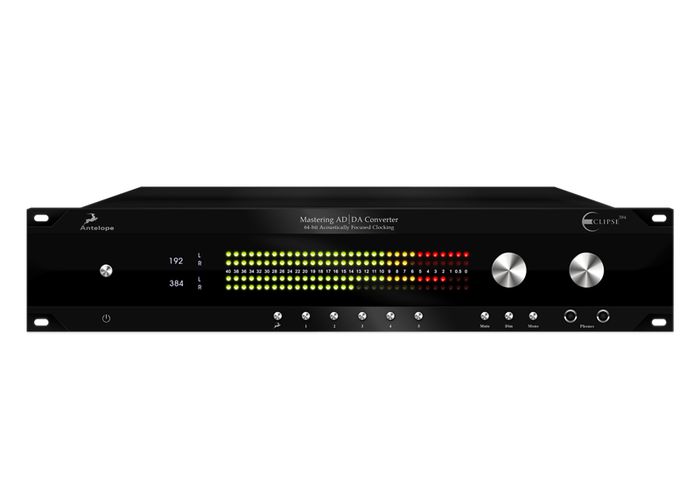

functions with integrated talkback. The Eclipse also includes two
dedicated headphone amplifiers and a custom USB interface, as well as
two large peak meters on the front panel. The advanced software control
panel compatible with both Mac & PC, allows five nameable presets
for easy recall of favorite setups.

Studio and live
Master
clocks are becoming more and more popular for use with digital consoles
and recording equipment at concerts and live events. By using the
Eclipse 384, a live sound engineer is able to provide sync reference for
up to four different devices, while using the main D/A for backing
material, the A/D with multiple digital outs feeding redundant recording
systems, and monitor DAC to check the recording post A/D conversion.

Supreme audio quality and boosted efficiency
The
unique dual-domain clocking system enables analog-based, more natural
sounding sample rate conversion. The integrated patching/routing
capabilities make monitoring of either analog or digital sources
extremely simple, avoiding jitter, distortion and cabling noise. By
eliminating the many input and output stages and the various power
supplies, that would be present in separate devices, the noise floor can
be substantially reduced and the audio quality significantly improved.



Features

64-bit DSP Trinity-quality clocking
Oven-controlled oscillator
Factory calibrated to better than +/- 0.001 ppm stability
Two independent sample rates
Varispeed capability of +/- 200 cents
10M atomic clock input
384 kHz A/D & D/A converters
A/D with Dynamic Range of 124dB
D/A with Dynamic Range of 129dB
Burr-Brown D/A conversion chip
Two bypassable A/D inserts
Custom USB 2.0 chip streaming up to 480 Mbits
Three sets of switchable monitor outs
Second dedicated monitor D/A
Bass management with LFE output
Precise input and output peak meters
Talkback and cue mix functions
Relay volume attenuator matched to 0.05 dB




Don't degrade your sound, convert your audio with high-definition results.

ECLIPSE 384 Mastering AD/DA Converter Specifications:

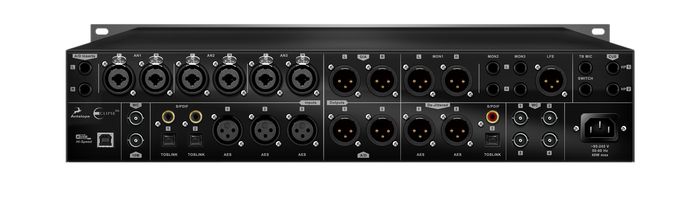

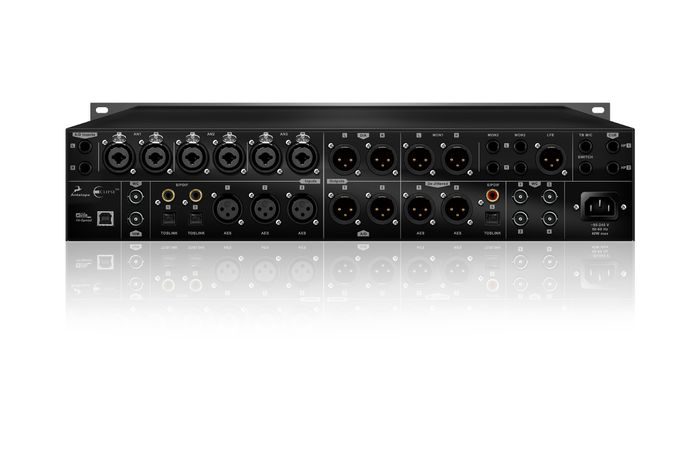

Analog Inputs
3 x Combo Balanced Analog (XLR / ¼ TRS)
2 x ¼ TRS A/D Insert points
1 x ¼ TRS Talkback
1 x ¼ TRS Foot switch
Digital Inputs
3 x AES/EBU on XLR. 32kHz to 192kHz @ 110 Ohms terminated
2 x S/PDIF on RCA. 32kHz to 192kHz @ 75 Ohms terminated
2 x TOSLINK on optical fiber: up to 96kHz
Analog Outputs
2 x Balanced XLR outputs from D/A Converter
3 x Balanced Outputs for monitors (1 x XLR and 2 x TRS)
1 x Balanced XLR LFE Out
2 x ¼ TRS Cue Mix Headphones
2 x ¼ TRS Front Headphones
Digital Outputs
2
x AES/EBU on XLR for the A/D converter out (32kHz to 192kHz; 384kHz for
dual wire when 384kHz is selected in the clock) @ 110 Ohms terminated
2
x De-jittered AES/EBU on XLR (32kHz to 192kHz; 384kHz for dual wire
when 384kHz is selected in the clock) @ 110 Ohms terminated
1 x De-jittered S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
1 x De-jittered TOSLINK on optical fiber: up to 96kHz
USB
USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B
Word Clock
1 x 10M Atomic Clock input @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz
1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz
4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz square wave signal
D/A Converter
Dynamic Range: 129dB
THD + N: 0.0004 %
A/D Converter
Dynamic Range: 123dB
THD + N: 0.0004 %
Clock Specs
Clocking System:
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator
Clocking Stability:
<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF
Clock Aging < 1 ppm per year
Clock Calibration <+/_0.001 ppm
Atomic Clock Input 10MHz @ 1Vpp, BNC
Sample Rates (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
Clock Generators 2 Independent Clock Generators
Varispeed +/-200 cents
+ 12.246 %
10.910 %
Operating Temperature 0-50ºC/32- 122ºF
Weight 8 kg/17,64 lb
Dimensions (approx.) Width: 483 mm/19"
Height: 88 mm/3.47"
Depth: 282 mm/11.1"
Power Supply AC Universal input 95-245VAC 20 Watts Max Consumption
