Galaxy Audio PSE/GBD Mini Guitar Bud Wireless System

Galaxy Audio


A convenient UHF wireless mic system for guitarists with 16 selectable channels and a 300' range.

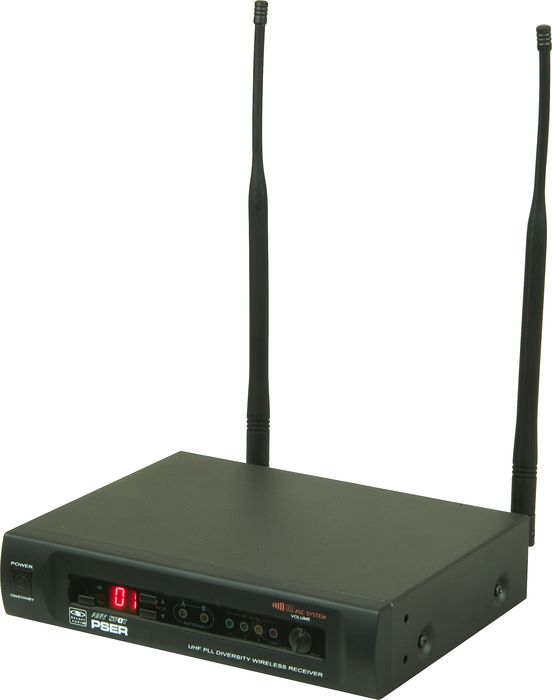

The Galaxy Audio PSE/52HS Wireless Microphone
System features a PSER UHF diversity receiver and a Guitar Bud Mini
Transmitter. If you're a guitarist who likes to move around the stage
and don't want to worry about tripping over wires or wearing a bulky
bodypack, the Guitar Bud Mini Transmitter is your ideal wireless mic
solution. It's a fixed frequency guitar bud with an adjustable 1/4"
plug, adjustable gain, an on/off switch, and a low battery indicator. It
has a 135° angle of adjustment so it can work with most guitar body
styles. The PSER receiver offers 16 selectable channels, volume control,
and channel display.

Consumer Alert:Most users do not need a license to
operate this wireless microphone system. Nevertheless, operating this
microphone system without a license is subject to certain restrictions:
the system may not cause harmful interference; it must operate at a low
power level (not in excess of 50 milliwatts); and it has no protection
from interference received from any other device. Purchasers should also
be aware that the FCC is currently evaluating use of wireless
microphone systems, and these rules are subject to change. For more
information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or
visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.



Features

300' range
UHF frequency
Diversity antennas

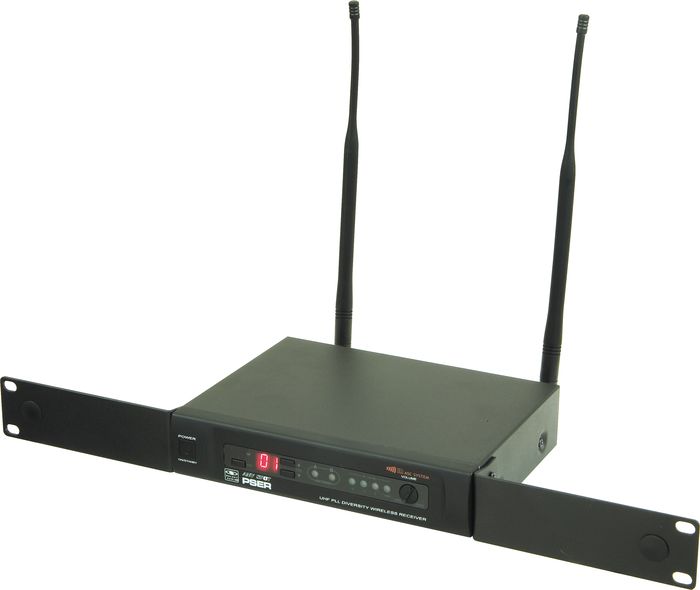

Single rack mount included
16 selectable channels

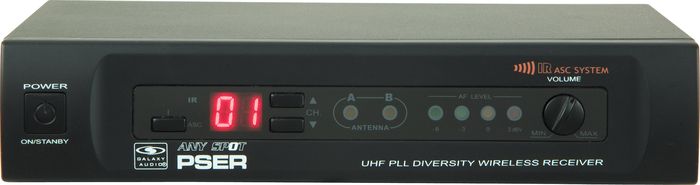

PSER Wireless Reciever

Output volume control
AF level indicator
IR sync
Squelch adjustment

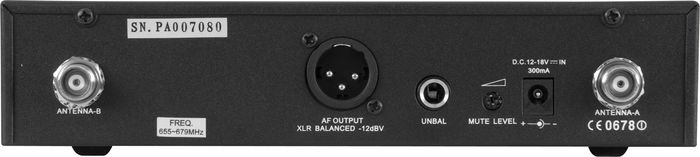

XLR/1/4" outputs

Guitar Bud Mini Transmitter

Fixed frequency
Gain control
Operation time: about 7 hours
Works with most guitar body styles
On/Off/mute switch
Gain adjustment
5 mW output
135° angle of adjustment




Order this wireless system today and you'll be able to play guitar with no worries about wires.







PSE/GBD Mini Guitar Bud Wireless System Specifications:

System
Frequency Range: 655-679MHz
Transmitter Output Level: 10dBm
Band: UHF
Operating Range: Under Typical Conditions 300' (92m)
Note: Actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response: +/-3dB 70Hz-16KHz
Total Harmonic Distortion: +/-30KHz deviation 1KHz tone <1%
Dynamic Range: >90dB A-weighted
Operating Temperature: Range 14°F to 122°F (-10 C° to +50 C°)
Note: battery characteristics may limit this range

PSER
Audio
Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600
Ohms load) -12dBV 1/4" connector (into 3KOhms load) -18dBV
Output Impedance: XLR connector 200Ohms " connector 1KOhms
XLR output: Impedance balanced
Pin1: Ground (cable shield)
Pin2: Audio
Pin3: No Audio
Sensitivity: -93dBm for 30dB
Image Rejection: >90dB
Dimensions (HxWxD): 1.7" x 8.3" x 6.3", (44mm x 212mm x 160mm)
Weight: 31oz (880g)
Power Requirements: 12-18 V DC at 400mA, supplied by external power supply


*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
