Galaxy Audio TRC/64HS Wireless Headset System

Galaxy Audio


Affordable UHF headset system that's easy to use and packed with user-friendly features.

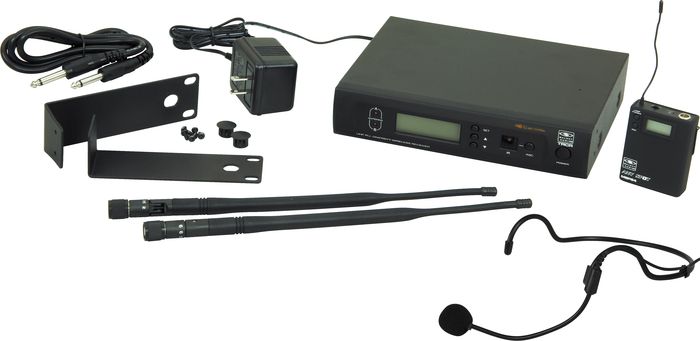

The Galaxy Audio TRC Wireless Microphone System
features the TRCR UHF diversity receiver with 120 selectable channels.
It uses IR Sync to link its frequency to the MBP64 transmitter. The LCD
display on the TRCR shows channel number, frequency, volume output, and
RF/AF indicator, while the MBP64's LCD display has a 4-bar battery life
indicator, and shows you what group, channel, and frequency you're on.
It also comes with an AH-HS unidirectional headset microphone. The full
wireless mic system gives you 300' of freedom.

Consumer Alert:Most users do not need a license to
operate this wireless microphone system. Nevertheless, operating this
microphone system without a license is subject to certain restrictions:
the system may not cause harmful interference; it must operate at a low
power level (not in excess of 50 milliwatts); and it has no protection
from interference received from any other device. Purchasers should also
be aware that the FCC is currently evaluating use of wireless
microphone systems, and these rules are subject to change. For more
information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or
visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.



Features
TRCR Wireless Receiver

LCD display
AF/RF indicators
IR Sync
Diversity Antennas
Squelch Adjustment
XLR/1/4" Outputs

MBP64 Wireless Transmitter

IR Sync
2 'AA; batteries
Mic/0/-10dB channel selector
Group, channel, and
frequency display
4-bar battery life indicator
LCD display
10mW
3oz (85g)

AS-HS



Order today and experience wireless freedom.





TRC/64HS Wireless Headset System Specifications:


System
Frequency Range: 655~679MHz
Transmitter Output Level: 10dBm
Band: UHF
Operating Range: Under Typical Conditions 300' (92m)
Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency response: ±3dB 70Hz-16KHz
Total Harmonic Distortion: ±30KHz deviation 1KHz tone <1%
Dynamic Range: >90dB A-weighted
Operating Temperature: Range 14°F to 122°F (-10 C° to +50 C°)
Note: battery characteristics may limit this range

TRCR
Audio Output Level: (±30KHz deviation, 1KHz tone) XLR connector (into 600Ω load) -12dBV 1/4" connector (into 3KΩ load) -18dBV
Output Impedance: XLR connector 200Ω 1/4" connector 1KΩ
XLR output: Impedance balanced
Pin1: Ground (cable shield)
Pin2: Audio
Pin3: No Audio
Sensitivity: -94dBm for 30dB SINAD, typical
Image Rejection: >80dB
Dimensions (HxWxD): 1.7" x 8.3" x 6.3", (44mm x 212mm x 160mm)
Weight: 32.5oz (920g)
Power Requirements: 12-18 V DC at 400mA, supplied by external power supply

MBP64
Max Audio Input Level: 0dBV to +10dBV
Gain Adjustment Range: 20dB
Input Impedance: 470KΩ
Dimensions (HxWxD): 3.3" x 2.6" x 1" (85mm x 65mm x 24mm)
Weight: 3.1oz (88g) (without batteries)
Power Requirements: 2 'AA' batteries alkaline or rechargeable batteries
Battery Life: About 6 hours

AS-HS
Sensitivity: -65 —4dB (0dB=1V/UBR 1KHz)
Frequency response: 50Hz-18kHz
Output impedance: 2KΩ Max. (RL-2.2KΩ)
Directionality: Uni-directional
Working voltage range: 1-10V
Standard working voltage: 3V
Current consumption: 250UA (Max.)
Maximum input sound pressure: 110dB SPL
S/N ratio: >38dB




*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
