Galaxy Audio AS-1800 Any Spot Wireless Personal Monitor w/EB10 earbuds Freq. Code B3

Galaxy Audio


Top-quality in-ear monitoring from the mixing console to the stage.




If you have been curious about a personal in-ear
monitoring system, the Galaxy Audio AS-1800 system with EB10 earbuds may
be just what you are looking for. Initially known for their legendary
mic stand-mounted monitoring system the Hot Spot, Galaxy Audio has been
in the business of improving stage sound for decades.

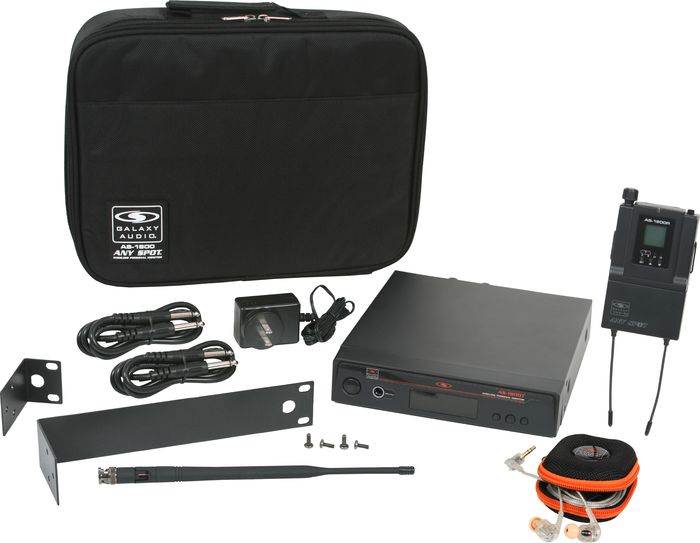

This
version of the AS-1800 system consists of an AS-1800T transmitter along
with an AS-1800R belt-pack receiver, and a set of EB10 earbuds. This is
Galaxy Audio's top-quality system and is appropriate for professional
touring bands. The AS-1800 system puts pro quality in-ear on-stage
monitoring in the hands of bands and musicians who have to keep
technical improvements within a reasonable budget.

There is a
reason why most professional touring acts use in-ear monitoring.
Actually, there are several reasons. Control over the mix in real time,
control over volume in real time for both clarity and hearing
protection, and an uncluttered stage are a few of the obvious
quantifiable ones, but the real reason is qualitative: the sound. If you
have ever recorded in a studio and had the perfect mix, EQ and audio
quality in your headphones while you sang, imagine having that level of
intimate awareness of the subtleties of your performance in a live
setting.

Your harmonies will be much better, and your lead vocal
will be able to communicate nuance that is often left out because a
performer can't adequately monitor those kinds of subtleties from a
wedge monitor on a loud stage. Once you go in-ear, you'll never go back
to wedges.

One very important aspect of the AS-1800 System is the
Mixed Mono feature. With Mixed Mono the performers can have their
vocals in Input 1 and the band mix in Input 2 and adjust the volume of
each independently to create their own personal mix, or you can send two
different monitor mixes from the board so each performer can decide
which mix they want to hear on their belt pack.

A lot has
happened in professional sound reinforcement both in terms of
front-of-house sound and in terms of what the performers hear. One of
the most significant developments in the last decade has been the
quality and affordability of in-ear systems. Attention to hearing
protection and an awareness of the critical role on-stage monitoring
plays in the quality of an entertainer's performance have been a driving
force in research and manufacturing at Galaxy Audio.

Consumer Alert:Most users do not need a license to
operate this wireless microphone system. Nevertheless, operating this
microphone system without a license is subject to certain restrictions:
the system may not cause harmful interference; it must operate at a low
power level (not in excess of 50 milliwatts); and it has no protection
from interference received from any other device. Purchasers should also
be aware that the FCC is currently evaluating use of wireless
microphone systems, and these rules are subject to change. For more
information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or
visit the FCCs wireless microphone website at: www.fcc.gov/cgb/wirelessmicrophones.



Features
Transmitter

Single Rack Mount Included
Naming Function
30/100 mW Selectable Transmitter Output
Monitor Output
300' Range
UHF Frequency
640 Selectable Frequencies/ 32 Selectable Channels

Receiver

True Diversity
Magnesium Alloy
Construction
45-18kHz
Mixed Mono Mode
Frequency Display
Backlit LCD
Volume Control
Battery Level indicator
150 mW headphone output
Runs on 2AA Batteries
(7 hours-Alkaline)
Button Lock
Squelch adjustment
Volume Knob
Auto Mute
Stereo/Mono Switch
Dimensions (w x h x d): 2.59" x 4.25" x .86"

Earbuds

Dual drivers with a passive crossover;
Maximum power input of 150mW and a Sensitivity of 120 dB/mW.
4' cord
Carrying case with a cleaning rod




Order today for a professional quality in-ear monitoring experience.







AS-1800 Any Spot Wireless Personal Monitor w/EB10 earbuds Specifications:

Transmitter
Frequency Range and Transmitter Output Level
Band: UHF
Frequency Range:B2 538~554 MHZ
B3 554~570 MHZ
Transmitter Output Power: 30mW or 100mW
Operating Range: Under Typical Conditions 300' (92m)
Note: actual range depends on RF signal absorption, reflection, and interference
Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
Total Harmonic Distortion: < 0.7% @ 1KHz
Signal to Noise: >105dB
Maximum Deviation Range: ±68KHz
Operating Temperature: Range 14ºF to 122ºF (-10 Cº to +50 Cº)
Note: battery characteristics may limit this range

Receiver
Channels: 32 Channels / 640 Selectable Frequencies
Frequency Stability: ±0.0005%, Phase Lock Loop frequency control
Available Frequencies : B2 538~554 MHZ
B3 554~570 MHZ
Modulation Mode: FM stereo modulation
Operating Range: 300' (100M) typical (in open space)
Oscillation: PLL synthesized
Sensitivity: 6dBμV, S/N>60dB at 25 deviation (mono)
Band Width: 16MHz
Max. Deviation Range: ±68KHz
S/N: >105dB
T.H.D.: <0.7% @ 1KHz
Frequency response: 45Hz~18KHz±1dB
Stereo Separation: ³45dB (at 1KHz)
Output Connector: 3.5mm (Ø) stereo earphone connector
Output Power: 150mW at 1KHz (THD1%)
Battery: AA X 2
Current Consumption: 185mA typical
Battery Current / Life: About 7 hours
Dimension: 4.25" x 2.6" x .87" (108mm(H) X 66mm(W) X 22mm(D))
Weight: .35 lbs (.16kg)

Earbuds
Sensitivity: (@ 1 kHz) 120 dB/mW
Frequency Response: 20 ~ 18kHz
Armatures: Dual Balanced (Single Hi/Single Low) with passive crossover
Impedance: 22 Ohms
Distortion: Less than 0.3%
Max Input Power: 150mW
Connector: Gold plated 3.5mm phone, stereo
Cord Length: 55 " (140cm)
Net Weight: .25oz. (7g) (excluding cable)





*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
