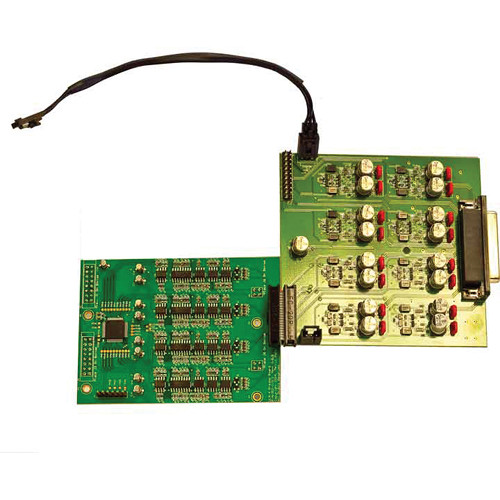

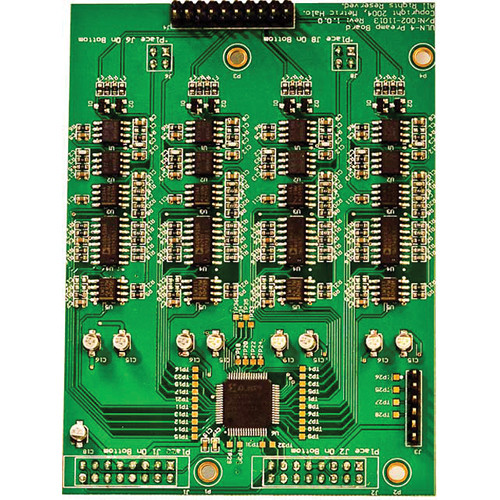

Metric Halo ULN-R Mic Preamp Option for LIO-8 (Channels 1-4)

The ULN-R from Metric Halo is a convenient option that allows you to add 4 channels of microphone preamplification to your LIO-8. This fits into Metric Halo's "Future Proof" design philosophy. Users can purchase a LIO-8 for conversion and processing features and later on add 1 or 2 ULN-R units to add up to 8 channels of mic pres, without having to buy an entirely new system or get rid of your old one.

The ULN-R mic pre offers high gain, low noise, excellent common mode and RFI rejection, a flat frequency response, and low distortion. This ULN-R unit is for Channels 1-4 of your LIO-8. It can handle dynamic mics, phantom powered mics, ribbon mics, turntables, instruments, and line-level signals with equal ease and quality.


Adds 4 channels of microphone preamplification to your LIO-8 converter/processor

"Future Proof" design philosophy lets you easily add features to your equipment instead of replacing it Up to 2 ULN-R units can be added to a LIO-8 for a total of 8 channels of mic pres 1

Please Note:

Additional ULN-R units sold separately. Each unit provides 4 mic pre channels.

close

Exceptional quality with high gain, low noise, excellent common mode and RFI rejection, a flat frequency response, and low distortion Handles dynamic mics, phantom powered mics, ribbon mics, turntables, instruments, and line-level signals with equal ease and quality





Rails
Preamp: ±15.8V
Phantom Power: 48V
Max Current per Mic: 10mA


Input Impedance
3.3 kOhms


Dynamic Range
118dB (A-Weighted)


Noise Floor
117.9dB (A-Weighted)


Gain
-22 to +91.5dB in 0.5dB Steps


Total Harmonic Distortion (THD)
0.0007% @ -12dBFS


Crosstalk
-110dB @ 1kHz


EIN
-133.25dBu @ 0 Ohms Source Impedance


Frequency Response
8.9Hz - 20.5kHz (44.1kHz Sampling)
2.9Hz - 64.7kHZ (192kHz Sampling)
