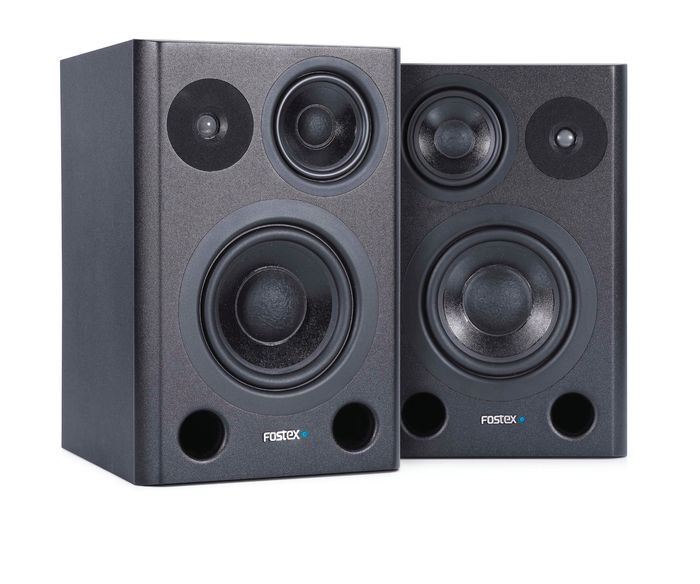

Fostex 6" 3-way Studio Monitor (Pair)

6" Three-way monitors with true tri-amp.




The PM8.4.1 is the very first 3-way monitor
speaker from Fostex consisting of 6-inch woofer, 4-inch midrange and
3/4-inch tweeter. Powered by a 60W, 18W and 18W independent amplifier
for wider frequency range reproduction - a first for a Fostex PM-series
monitor.

It features a 6" woofer, 4" midrange and 3/4" tweeter
driven by 60W, 18W and 18W independent power amplifier respectively. The
built-in channel divider provides ideally overlapped frequency
crossovers for smoothest connections between the drivers. The midrange

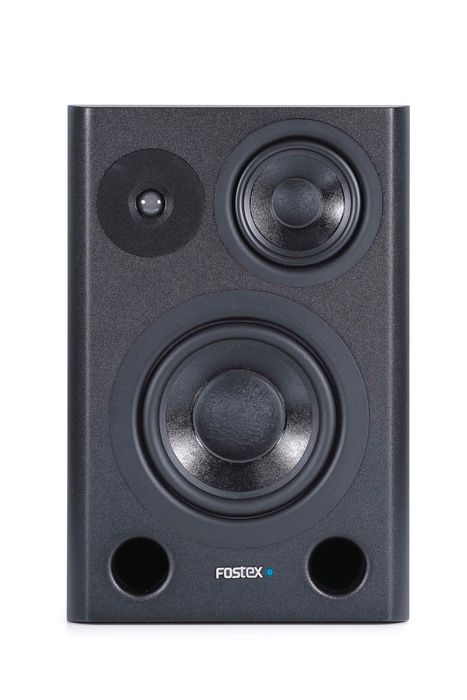

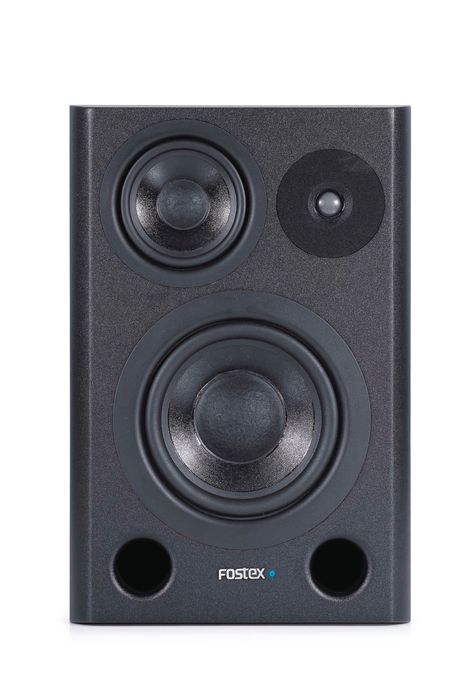

and tweeter are positioned symmetrically on the Left and Right to
minimize the physical height of the enclosure boxes as well as to
minimize the affect of diffraction. The woofer and the midrange are
housed in an individual chamber respectively inside the enclosure box to
have little interference between the drivers.

3-step level
adjustments are provided for HIGH at +1/0/-1 dB and LOW at +3/0/-3 dB.
The diaphragm for the woofer and the midrange is highly rigid with
moderate internal loss being made of highly elastic Kevlar papered by
Fostex's original engineering to reproduce any type of input source. The
tweeter diaphragm is UFLC (Urethane Film Laminated Cloth) soft dome
type to reproduce any types of high frequencies keeping its own
transparency.




Features

60W, 18W and 18W independent power amplifiers
Soft dome tweeter
4-Inch mid-range driver
6-Inch low frequency woofer
3-Step level adjustments are provided for HIGH at +1/0/-1 dB and LOW at +3/0/-3 dB




Order today for a compact, professional monitoring system.








6" 3-way Studio Monitor (Pair) Specifications:


SPEAKER SECTION

LF driver: 6" (20cm) cone speaker
Midrange dirver: 4" (10cm) cone speaker
HF driver: 3/4" (19mm) soft dome
Frequency Response: 50 Hz – 25kHz (+-3dB)

AMPLIFIER SECTION

INPUT A
Connector: 6mm dia. TRS phone (balanced)
Input Level: -10dBV
Impedance: 20K ohm or more
INPUT B
Connector: XLR-3-31 (balanced)
Input Level: +4dBu
Impedance: 20K ohm or more
OUTPUT POWER: LF 60W, MID 18W, HF 18W
CONTROLS
Low +-3dB at around 60Hz
High +-1dB at around 10kHz

GENERAL

Power Consumption: 60W
Power Requirement: US 120VAC, 60Hz
EUR/UK/AUS 230VAC, 50/60Hz
CHN 220VAC, 50Hz
Dimensions:10.6" (W) x 17" (H) x 11.4" (D)
Net Weight: 13.4kgs
Supplied accessories: IEC power cable
