Stanton DaScratch Performance Control Surface

A totally different way to DJ at your fingertips.

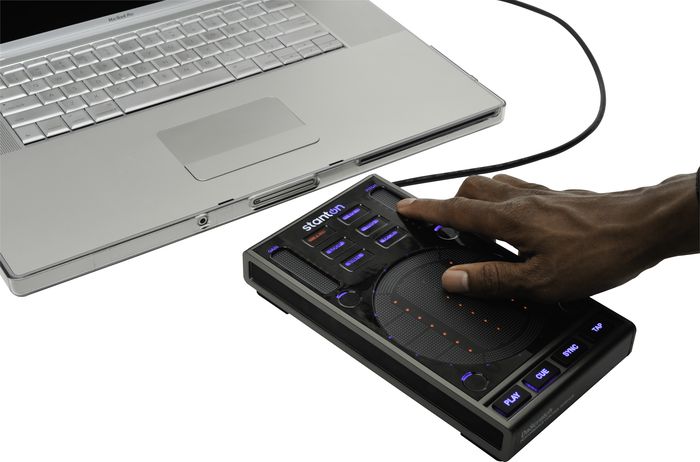

The Stanton DaScratch performance control
surface, a.k.a. the SCS.3d, gives any DJ ultimate control over their
software of choice. Revolutionary and compact, the innovative DaScratch
controller is part of the Stanton SC System DJ control line.
DaScratch's small footprint and sleek profile make it a space-friendly
addition to any existing DJ setup or an excellent stand-alone DJ
controller.

Stanton's StanTouch technology allows you to use
traditional DJ-style motions and gestures on DaScratch's touch-pad
surface. This gives you full control over music and software
applications such as Traktor DJ Studio, Traktor Scratch, Ableton Live,
Serato Scratch Live, or any other MIDI compatible software. Minimal
moving parts ensure the Stanton DaScratch controller's durability from
gig to gig.

See Me, Feel Me
DaScratch's
layout and portability provide DJs with an extremely high level of
performance and control. The StanTouch interface can be used for
scratching, scrubbing, and navigating through digital audio. The tactile
buttons, triggers, and virtual faders can also control samples, pitch,
effects, cue and loop points, and other mappable functions. Multiple
finger touches can even prompt quick kills on EQ's or transform effects
on volume.

Hook Me Up
The Stanton SCS.3d's
Magnect connection system securely snaps multiple DaScratch together,
creating a larger control surface with increased performance options.

Teach Me
Stanton
DaRouter software gives DaScratch a little brain of its own. It creates
customized support for a variety of applications. DaRouter runs on Mac
or PC computers and automatically loads presets that are tailored
towards the application the SCS.3d is controlling. Stanton also provides
DaScratch with a generic preset for mapping to any application that
supports MIDI learn.

Connect Me
DaScratch has
USB connection for easy plug-and-play connection to your software.
Class compliant with Windows XP, Vista, and Mac OSX, it ensures that
drivers are never needed, and being bus powered, there's no worry about
external power or batteries.

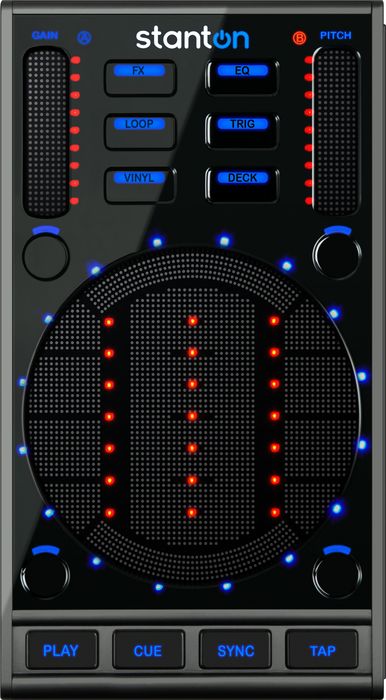

The Stanton DaScratch's center
section operates mainly in 3 different modes—Slider, Circle, and Button.
These 3 different control layouts can be evoked by any of the mode
buttons depending on how the DaRouter preset is programmed.

•Slider Mode
gives the user 3 variable controls (like faders) that can be used by
sliding your finger up and down the areas next to the 3 LED meter bars.
This mode can be used for controlling many parameters at once, such as
an EQ. A slider may be changed by dragging a finger across the surface,
or you can place your finger in an absolute position on the slider, and
its position will jump immediately to that point. Two fingers may be
used to trigger from one position to the next. For instance, holding one
finger on the bottom of the slider and tapping the top with a second
finger will make the slider generate the higher value for as long as
that finger remains on the surface. Once the second (upper) finger is
removed, the slider will generate the value indicated by the first
finger position. This is referred to as as a "finger jump."

•In Circle Mode,
there is one slider at the center of the circle, and a circular slider
going around the perimeter of the touch surface. Just like in Slider
mode, finger jumps are possible and can be performed to quickly change
the parameter in real time. This is the mode most likely to be used to
emulate the platter of a deck. Circle mode is also the default mode of
SCS.3d DaScratch. That is to say that if you plug DaScratch into your
computer without using the DaRouter software, it will operate in Circle
mode. Keep in mind that without DaRouter, the Mode Selector buttons
(VINYL, LOOP, etc.) will only send note data and will not change the
operation of DaScratch.

•In Button Mode, the
zones highlighted in the diagram will act as triggers to control
buttons in the target application. For example, these functions could be
assigned to alter loop lengths, jump to cue points, or start clips
playing. Multiple buttons may be pressed at the same time in Button
mode. Also, you will find some presets use a modified version of Button
mode that makes the trigger areas bigger by combining 2 or more button
zones.

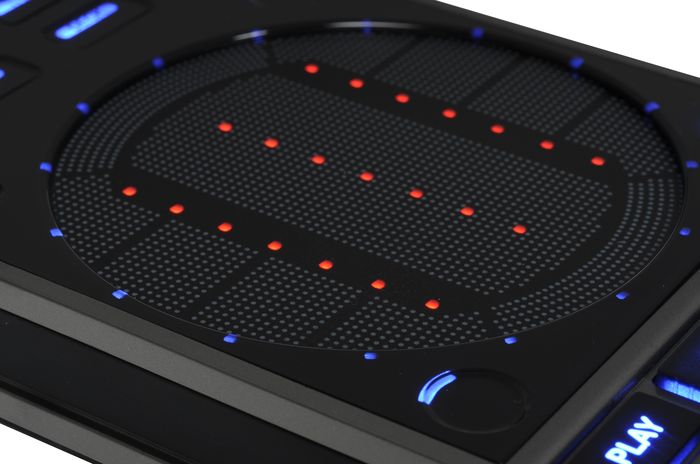

StanTouch
In every mode of
operation, you'll find that the touch-sensitive areas on the Stanton
DaScratch will respond to multiple simultaneous touches. This is part of
its core functionality, and indeed many cool behaviors and gestures can
be developed around this capability.




Features

Virtual Gain and Pitch faders with 9 segment LEDs that provide instant visual feedback
6 mode switch buttons - FX, EQ, Loop, Trig, Vinyl, Deck
4 touch-sensitive trigger buttons
StanTouch Control Area: touch-sensitive control area can be configured to emulate faders, buttons, or jogwheel
StanTouch has 3 seven-segment LED strips and 16 LED ring around it for for feedback
StanTouch works in 3 operational modes - Slider, Circle, and Button
4 transport buttons - Play, Cue, Sync, Tap
DaRouter software which runs on Mac/PC automatically load presets
USB connection
Magnect connection system for using multiple units together




Order this innovative DJ controller today. It'll keep your fingers and fans moving and jumping.





DaScratch Performance Control Surface Specifications:


Dimensions: 6.9"W x 10.4" x 2.7"D
Weight: 2.64 lb.
