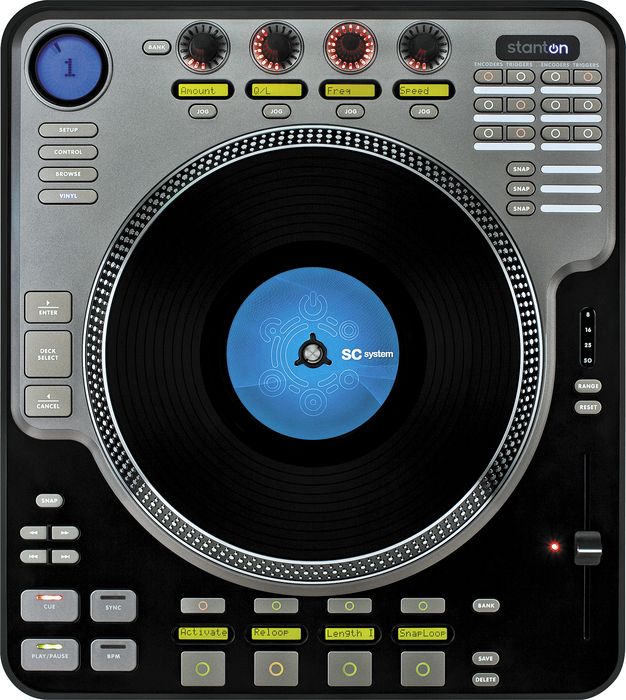

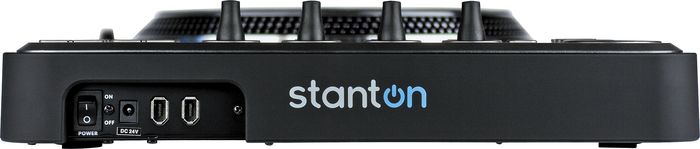

Stanton SCS.1d Control System Deck

Designed from the ground up for high-precision
software control, the SCS.1d Deck is a dream-come-true for laptop DJs.
Based upon the popular layout of the C.304, as well as extensive input
from top DJs, this deck's interface is both comfortable and
practical--providing a host of "world's first" features at your
fingertips. Even better, it ships with a real vinyl disc to provide an
extremely natural feel, right out of the box. Specifically, the SCS.1d
offers a tight grip over your music through a high-torque 10" motorized
platter, transport controls, navigation keys, rotary encoders, a
motorized pitch slider, and a trigger section. Unlike the SCS.1m Mix
Controller, the SCS.1d Deck does not offer any direct audio
connectivity; all audio I/O remains at the mixer or external soundcard.
What the SCS.1d does offer is the best tracking and most intuitive
ergonomics of any product in its class.

High-Torque Motorized Platter
Central
to the SCS.1d is an enhanced version of the award-winning motorized
platter from the Stanton T.120 and STR8-150 turntables. This is one of
the world's most trusted platter designs, proven through thousands of
hours of use by DJs the world over. To be specific, this is a 4.5
Kgf-com, 16-pole, 3-phase brushless DC motor. What that means to you is
super-fast .2-second spin-up and stop speeds. The motor can also be
adjusted to simulate the feel of both super-high-torque motors and
commonly used low-torque designs.

Unbeatable Resolution
The
SCS.1d's high-resolution (over one thousand counts per rotation) vinyl
tracking system allows for super-accurate mixing and scratching. This
system assures that every nuance is captured in real time, and works
around the same principles as tracking is completely error-free (whereas
digital vinyl systems have problems at slow speed). And because there's
no interpretation of timecode signal, there's no delay between your
movement and your software.

Encoders, Navigation, and More
Much
like the SCS.1m, the SCS.1d Deck features 4 assignable rotary encoders
with bright LED rings to control various aspects of your software.
Underneath each encoder is an LCD "scribble strip" to let you know what
parameter you're tweaking without looking up from the deck. With 6
control presets for each knob, this is the equivalent of having 24
assignable knobs—built right into your deck! Similar flexibility is
built into both the SCS.1d's Navigation section, with its jog wheel for
precise control, and Deck selection, which quickly banks between
different global settings. In this way, the SCS.1d is like having many
virtual turntables at your disposal; a single button press is all it
takes to switch from one deck to the next.

Motorized Pitch Slider
The
pitch slider on the SCS.1d is not only 100mm long for super-smooth
pitch adjustments, but it's also motorized, so your deck "remembers" its
settings as you switch between decks or presets.

Trigger Pads
Directly
underneath the SCS.1d's motorized platter is its assignable Trigger
section. Comprised of 4 velocity-sensitive pads, this section can be
used to play loops and samples during performance, or for triggering any
other MIDI messages to your software. Using these trigger pads in
conjunction with the platter provides wild creative possibilities never
before possible. While simple in operation, the expressive possibilities
are almost endless.


Introducing the SC System: The future of digital DJing on Mac and PC
Once
upon a time, DJs wouldn't have considered spinning sets from a laptop.
But today, the writing is not only on the wall—it's glowing in 20-foot
neon letters. Thanks to their portability, processing power, massive
song storage, and rapid advances in DJ software, laptops are here to
stay. With this in mind, Stanton boldly introduces the world's first
truly professional DJ control system, designed to fully empower laptop
DJs and desktop producers.

Super. Natural. Control.
In
recent years, the DJ world has been flooded by a range of new
controllers designed for laptop mixing. Unfortunately, these new
entry-level systems are almost always plagued by compromises. And
popular vinyl control systems, on the other hand, face the limitations
of tracking timecode from vinyl, including worn-out discs, faulty
needles or turntables, and increased tracking latency (delay). Breaking
free from the past, Stanton's new SC System ushers in a new era of DJ
performance. Led by the SCS.1m Mix Controller, the SC System eliminates
all previous limitations, providing a rock-solid system with precise
feedback and almost supernatural control over your DJ software. The
result of many years of development, the SC System doesn't just raise
the bar for laptop DJs; it changes the whole game.

Mix Different.
The
SC System goes far beyond simple all-in-one controllers, thanks to
separate deck and mixer components. This allows for multiple
configurations, with clean lines drawn between the functions of each
unit. It also allows for a premium feature set including built-in
FireWire connections, a high-torque motorized platter with vinyl control
disc, motorized faders, rotary encoders, massive flexibility, and
integration into DJ software with advanced 2-way feedback. Taken
together, these features allow the SC System to go where no other DJ
product has gone before.

SC System Setups
As
a truly modular solution, the SC System can be configured in a variety
of ways to suit your exact needs. SC System units can be used
individually or in concert with other components, and even combined with
existing analog gear to deliver precise, ultra-capable control over
your DJ software.

SCS.1m + SCS.1d
This
mixer-and-deck configuration can be used to emulate a dual-deck setup
by using virtual decks for controlling transport, loop, and effects,
while using the mixer to blend and EQ songs and sounds. This system is
the perfect entry into the world of professional SC System laptop
mixing.

Dual SCS.1d + SCS.1m
This
setup recreates the "traditional" DJ system, allowing users to have 2
physical decks, each representing an on-screen deck (which can easily be
toggled to 4 decks by using virtual decks). The mixer is used for
blending, channel EQ, etc. in a traditional manner. This setup is
tailored towards professional DJs wanting to replace their existing
setup with an SC System controller-based solution.

SCS.1m + traditional turntables
The
SCS.1m mixer can be incorporated into Digital Vinyl Systems (DVS) that
support MIDI control by running the timecode into a sound card and using
the SCS.1m's built-in MIDI functionality to control the user's
preferred DJ software.

SCS.1m
This
mixer-only setup allows for basic mixing and transport control of
software decks. Thanks to the SCS.1m's built-in audio interface
capabilities, it's perfect for DJs wanting an all-in-one solution to
play from their software into a PA system.




Features

Flagship deck controller for laptop DJs and remixer/producers
Adjustable high-torque 10" motorized platter with vinyl surface and superior tracking
100mm motorized pitch fader with recall for sync with software
Velocity-sensitive pads assingable to loops, cue points, etc.
Assignable Encoder section with 360° of LED feedback
CD "scribble strips" for 2-way communication with selected software
Familiar Tansport section for direct music control
Perfect for adding maximum control capabilities into existing DJ software
Easily controls multiple virtual decks for powerful multi-channel mixes





SCS.1d Control System Deck Specifications:


Faders / Encoders
4 Virtual-pots with 18 segment LED rings (MIDI CC or Incremental CC)
1 100mm Motorized fader (MIDI CC)

Displays
4 Multicolor 8 character alphanumeric LCDs with contrast control (MIDI SysEX Controllable)
1 Cue position display with current deck indicator (MIDI SysEX controllable)

Buttons / Switches
4 Velocity sensitive trigger pads (MIDI Note On)
46 Momentary backlit push buttons (MIDI Note On)

Dimensions
13.88 lb. / 6.29 kg
3.25"H x 14.5"W x 16.75"L

Motorized Platter
Motor Type: 16 pole, 3 phase, brushless DC motor
Speeds: 33 1/3rpm, 45rpm
Starting Torque: >4.5 kgf.cm
Starting Time: 0.2 sec
Braking Time: 0.2 sec

Power:
Voltage: 24V DC
Amps: 3.0
