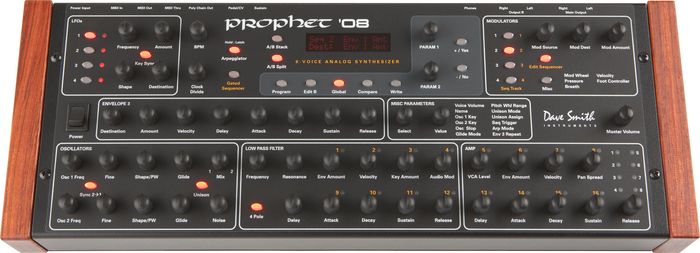

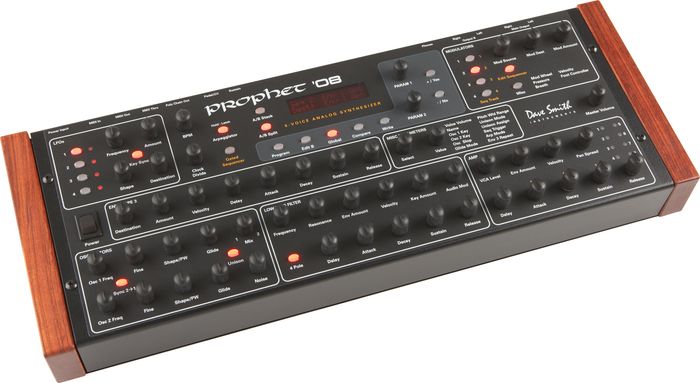

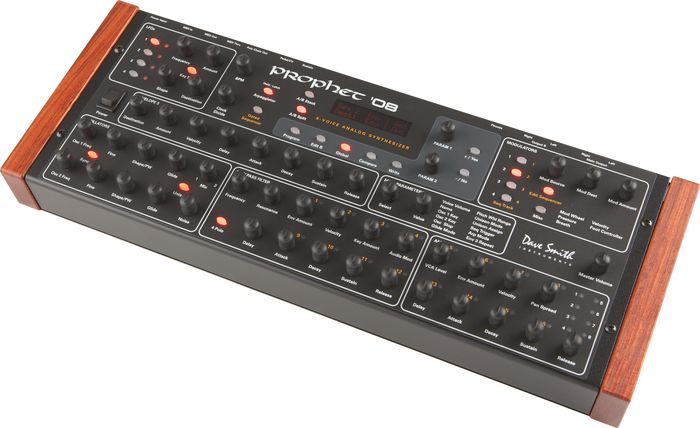

Dave Smith Instruments Prophet '08 PE Synth Module

Legendary vintage sounds in an affordable, all-analog polysynth.




The Dave Smith Instruments Prophet '08 PE offers a
tabletop "knobby" synth module with all of the features and controls of
the Prophet '08 Keyboard (minus the keyboard, of course) in an even
more compact enclosure. With real analog oscillators, famed Curtis
low-pass filters, and analog VCAs, the Prophet 08 PE Synth is capable of
reproducing the familiar sounds of its legendary predecessors. But
modern features like a greatly expanded modulation matrix and additional
modulation sources—like 3 envelopes and 4 LFOs per voice—take the
Prophet '08 PE way beyond the vintage—ear and make this a worthy and
unique addition to the Prophet family tree.

The Prophet '08 Synth
Module delivers a gated 16 x 4 step sequencer, arpeggiator, split or

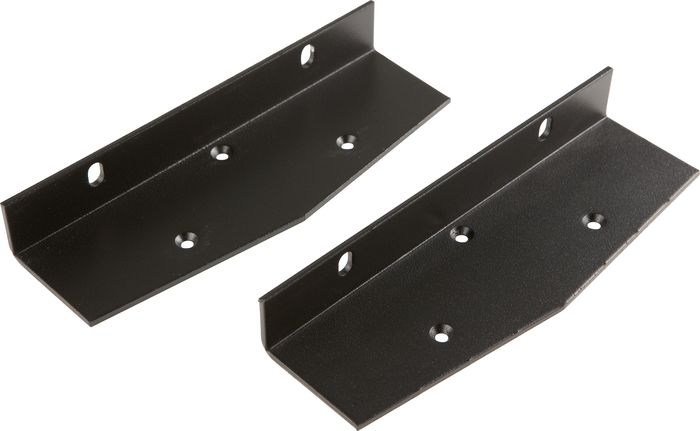

stacked key modes with separate stereo outputs per layer, and rack ears
for optional rackmounting. The Prophet '08 module can also be used as an
expander to increase the polyphony of another Prophet '08—keyboard or
module—to 16 voices.




Features

Affordable, full-featured polysynth with a 100% analog signal path
Classic, real analog sound, including legendary Curtis analog low-pass filters, married to a modern feature set
Small footprint, huge sound
Tons of knobs for direct, realtime editing and performance




Enjoy classic sounds using modern electronics. Order the Prophet '08 PE Module today.


Prophet '08 PE Synth Module Specifications:


16 x 4 gated step sequencer
Arpeggiator
2 digitally
controlled analog oscillators (DCOs) per voice with selectable sawtooth,
triangle, saw/triangle mix, and pulse waves (with pulse-width
modulation), and hard sync
White noise generator
1 Analog Curtis low-pass filter per voice, selectable 2- and 4-pole operation (self-resonating in 4-pole mode)
3 Envelope Generators: filter, VCA, and assignable (four-stage ADSR + delay); Envelope 3 can loop
4 LFOs
Glide (portamento): separate rates per oscillator
Analog VCAs

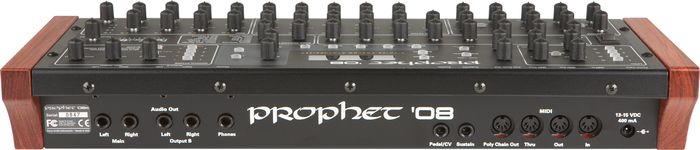

Ins and Outs
MIDI In, Out, Thru, and Poly Chain
Main stereo audio output: 1/4" unbalanced
Output B stereo audio output: 1/4" unbalanced
Sustain pedal input: accepts normally on or normally off momentary footswitch
Pedal/CV
input: responds to expression pedals or control voltages ranging from 0
to 5 VDC (protected against higher or negative voltages)
Headphone output: 1/4" stereo phone jack
Includes power supply for 110V - 240V AC operation (13-15 VDC, 400 mA) and operation manual
Dimensions: 3.25"H X 18.5"L x 7"W (8.25cm x 47cm x 17.8cm)
Weight: 8.5lb. (3.86kg)
Rack mounted: 4U










*Estimate Shipping between 5 - 12 weeks, or please call (083) 497-2227 for a faster air freight service with special price rate.
