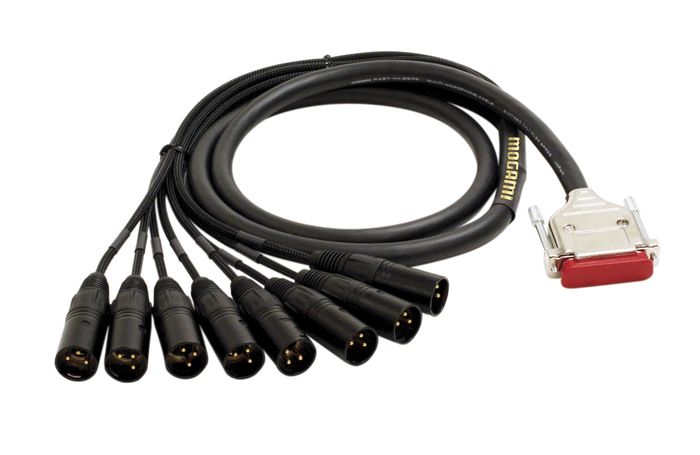

Mogami 8-Channel DB25-XLR Snake

High-quality wiring and insulation ensures you have a clear signal every time out.




Mogami Gold multicore cables like the 8-channel
DB25-XLR (male) snake are designed for the highest level of audio
performance and feature superb electrical and mechanical characteristics
while remaining compact, superflexible and easy to use. Featuring
individually shielded pairs and XLPE insulation this snake was designed
to stand up to the heat and wear of the gigging musician. There is also a
number and color coded system to make it easier to make sure you're
making all the right connections.




Features

Individually twisted shielded pairs
XLPE (Cross Linked Polyethylene) insulation provides superb
electrical characteristics and will not melt or shrink back during
soldering
Rugged and flexible construction that is easy to handle, even at temperatures down to -20 deg C (-4 deg F).
Channel numbers are printed and underlined on each core jacket to
ensure correct identification, regardless of which end is stripped
Outer jackets of each pair are color coded by standard resistor color code, allowing quick identification of conductor pairs
Inner conductors are also color coded based on the international
standard resistor color code. Each pair is color coded by jacket and
conductor color combination
Each channel has a drain wire and served (spiral) bare copper
shield. The drain wires simplify termination and can be crimped by the
same size contact as the inner conductor pair




8-Channel DB25-XLR Snake Specifications:

Conductor: 30/0.08A (0.15mm sq˜) #26AWG (30Å~#40AWG)
Insulation: 1.0 XLPE (Cross Linked Polyethylene) (0.039")
Drain Wire: 7/0.18TA (0.18mm sq˜) #25AWG (7Å~#33AWG)
Served Shield: Approx. 58/0.10A Served (spiral) Shield
Jacket (Covering): 2.8 Flexible PVC (0.110")
Identification: See core number identification table

DC Resistance at 20 deg C: Inner Pair Conductor: 0.13W/m(0.040W/Ft); Shield: 0.031W/m(0.0095W/Ft)
Capacitance at 1kHz, 20 deg C (Partial Capacitance Value) See Figure (1): K0: 130pF/m(40pF/Ft); K1: 12pF/m(3.7pF/Ft)
Inductance: 0.6µH/m(0.18µH/Ft)
Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
Electromagnetic Noise at 10kHz*: (Inductance of the toroidal core: 595µH): 0.1mV Max.
Microphonics*: Method: Stepping on cable: 50mV Max. at 50kW Load
Voltage Breakdown: Must withstand at DC 500V/15sec.
Insulation Resistance at DC 125V, 20 deg C: 100000 MW Å~ m Minimum
Tensile Strength of one pair (26 deg C, 65% RH): 274N
Emigration: Non-emigrant to ABS resin
Applicable Temperature: -20 deg C~ +70 deg C(-4 deg F~ +158 deg F)
Standard: UL13 CL2X 60 deg C / UL 20002 AWM 30V 60 deg C VW-1

Conductor: 7/0.18A (0.178mm©˜) #25AWG (7Å~#33AWG)
Insulation: 1.05 XLPE (Cross Linked Polyethylene) (0.0413")
Drain Wire: 7/0.18A (Exactly same as conductor)
Shield: Approx. 58/0.10A Served (spiral) Shield
Jacket (Covering): 2.8 Flexible PVC (0.110")
Identification: See core number identification table

DC Resistance at 20 deg C: Inner Pair Conductor: 0.11W/m(0.0336W/Ft)
Shield: 0.031W/m(0.0095W/Ft)
Capacitance at 1kHz, 20 deg C (Partial Capacitance Value) See Figure (2): K0: 140pF/m(42.7pF/Ft)
K1: 12pF/m(3.7pF/Ft)
Inductance: 0.6µH/m(0.18µH/Ft)
Electrostatic Noise (Hum Pick-up)*: 2.5mV Max.
Electromagnetic Noise at 10kHz*
(Inductance of the toroidal core: 595µH): 0.1mV Max.
Microphonics* Method: Stepping on cable: 50mV Max. at 50kW Load
Voltage Breakdown: Must withstand at DC 500V/15sec.
Insulation Resistance at DC 125V, 20 deg C: 100000 MW Å~ m Minimum
Tensile Strength of one pair (26 deg C, 65% RH): 274N
Emigration: Non-emigrant to ABS resin
Applicable Temperature: -20 deg C~ +70 deg C(-4 deg F~ +158 deg F)
Standard: UL13 CL2 60 deg C
